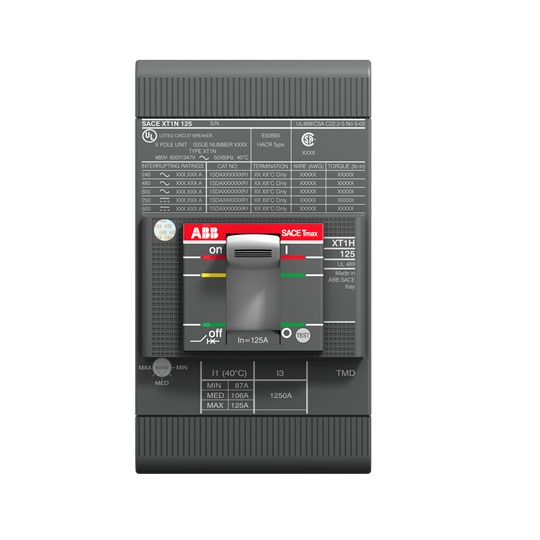

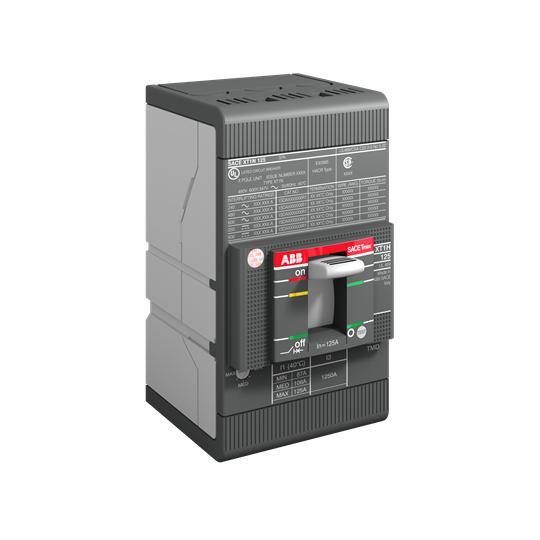

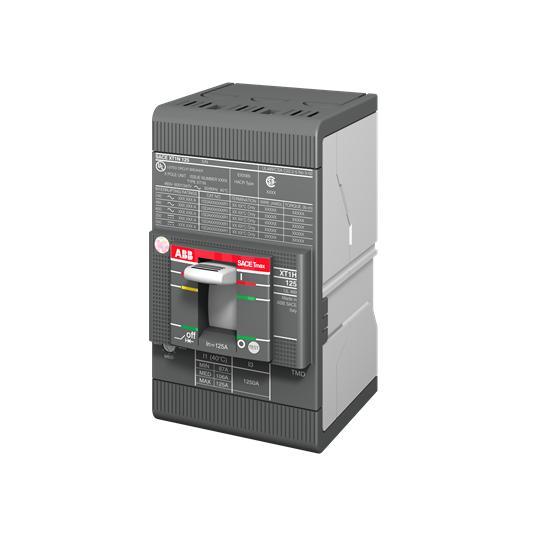

ABB XT1HU3100AFF000XXX Tmax XT Low Voltage Molded Case Circuit Breaker, 600Y/347/690 VAC, 100 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Tmax XT molded case circuit breakers guarantee an extremely high performance level while being progressively smaller in size, simple to install and able to provide increasingly better safety.
-
BrandABB
-
UPC888614402331
-
Manufacturer Part NumberXT1HU3100AFF000XXX
-
CountryUSA
-
Temperature Rating-13 to 158 deg F
-
FrameXT1 125A
-
Frequency Rating50/60 Hz
-
Trip Range100 to 1000 A
-
Trip TypeThermal Magnetic
-
TypeLow Voltage
-
Connection TypeFront Line/Load Side
-
Voltage Rating600Y/347/690 V AC
-
Amperage Rating100 A
-
SeriesTmax XT
-
Number of Poles3
-
Dimensions5.12 in H x 3 in W x 2.75 in D
-
Insulation TypeDouble Insulated
-
Interrupt Rating25 kA
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- Frame XT1 to 125A, 600Y/347 V (UL)/160 A, 690 V (IEC) thermal magnetic protection
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
-
Alternative Part Number16058546|13785192
-
UNSPSC39121616
-
IDEA Index ID16058546
-
Package DescriptionEACH
-
Standards/ApprovalsRoHs, CSA, cUL, CE, GOST
-
Specification Sheet
