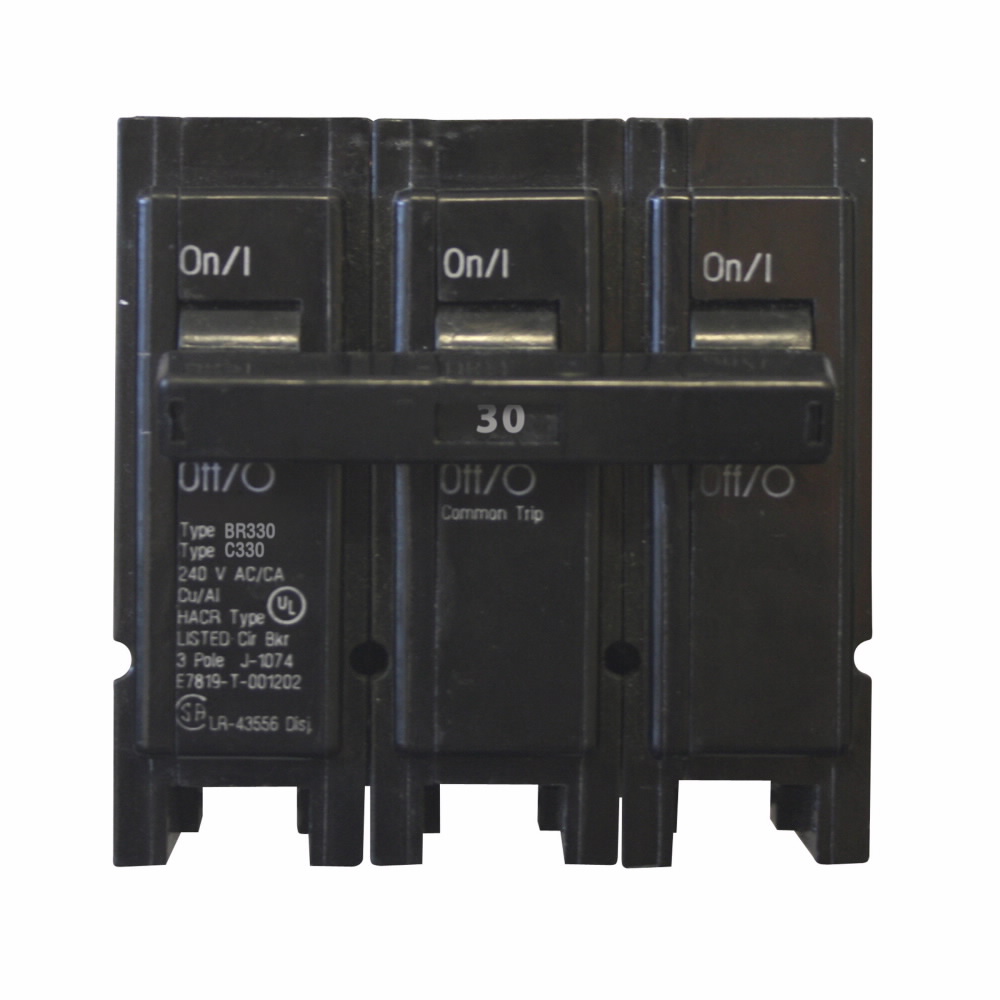

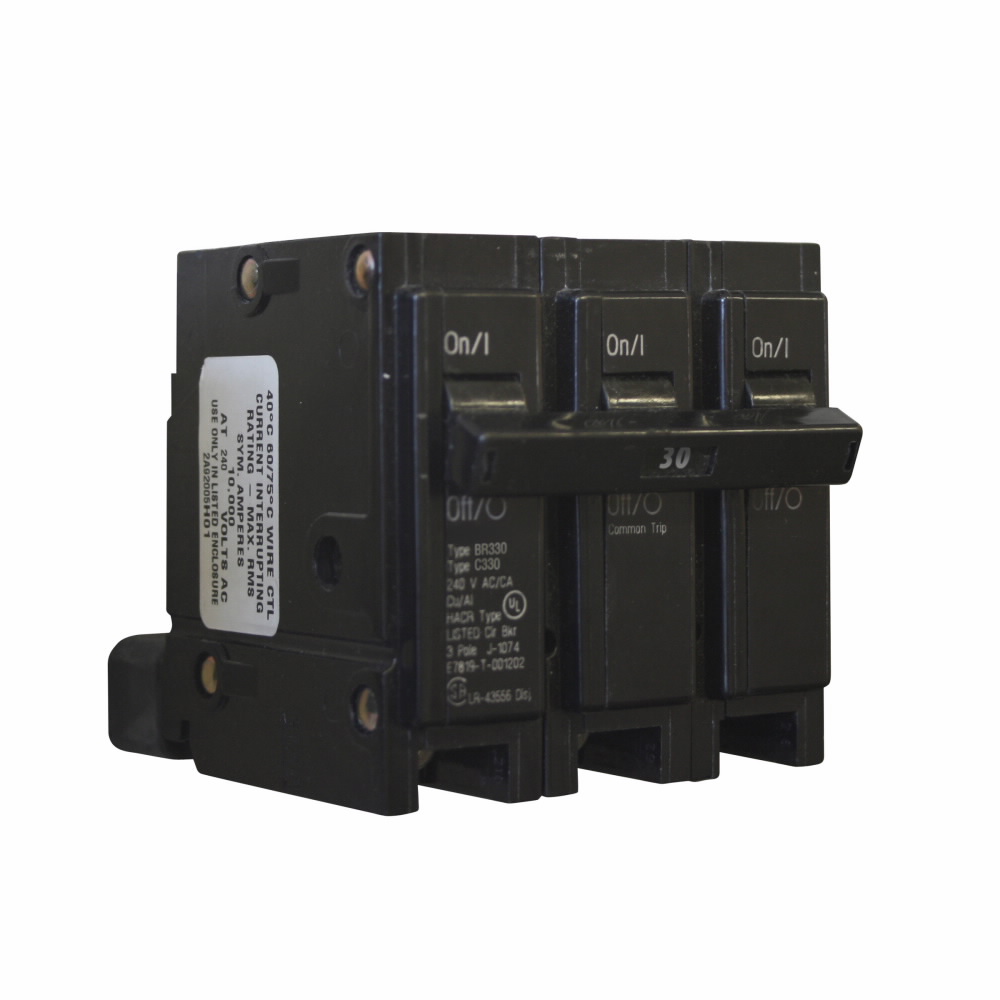

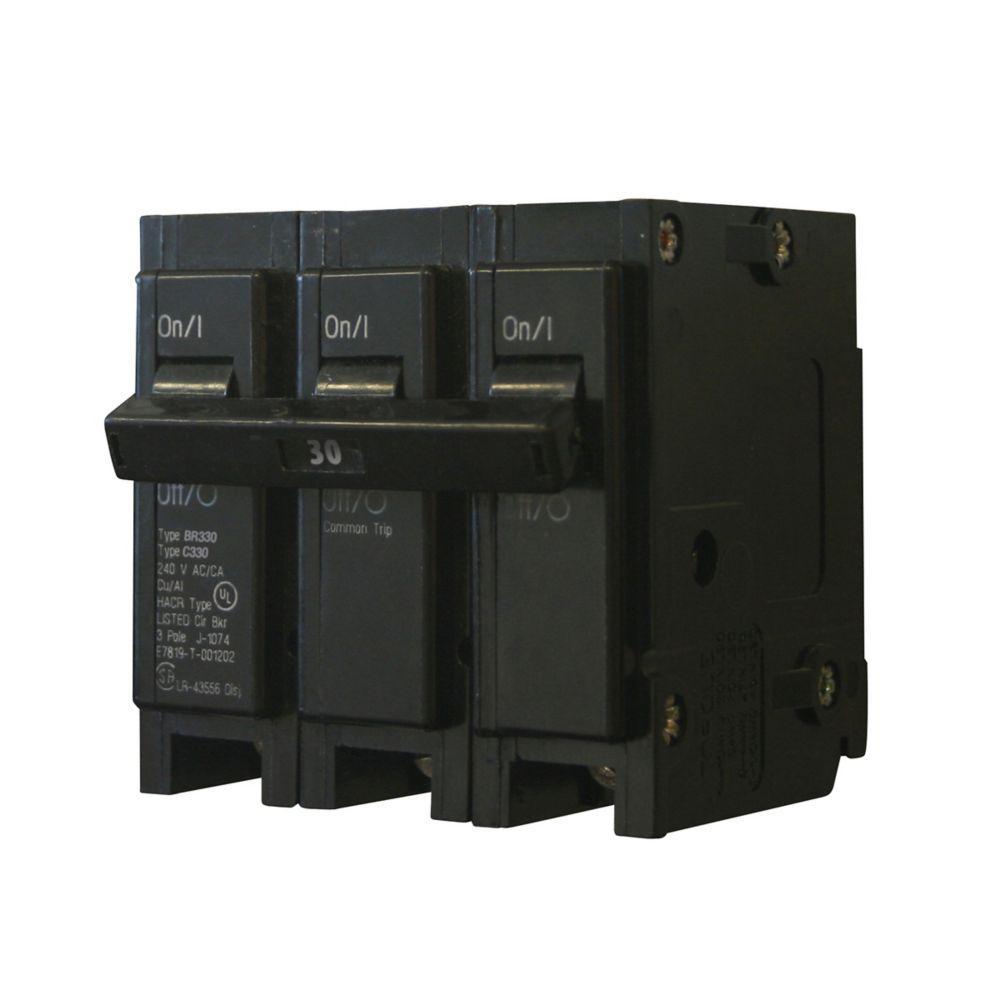

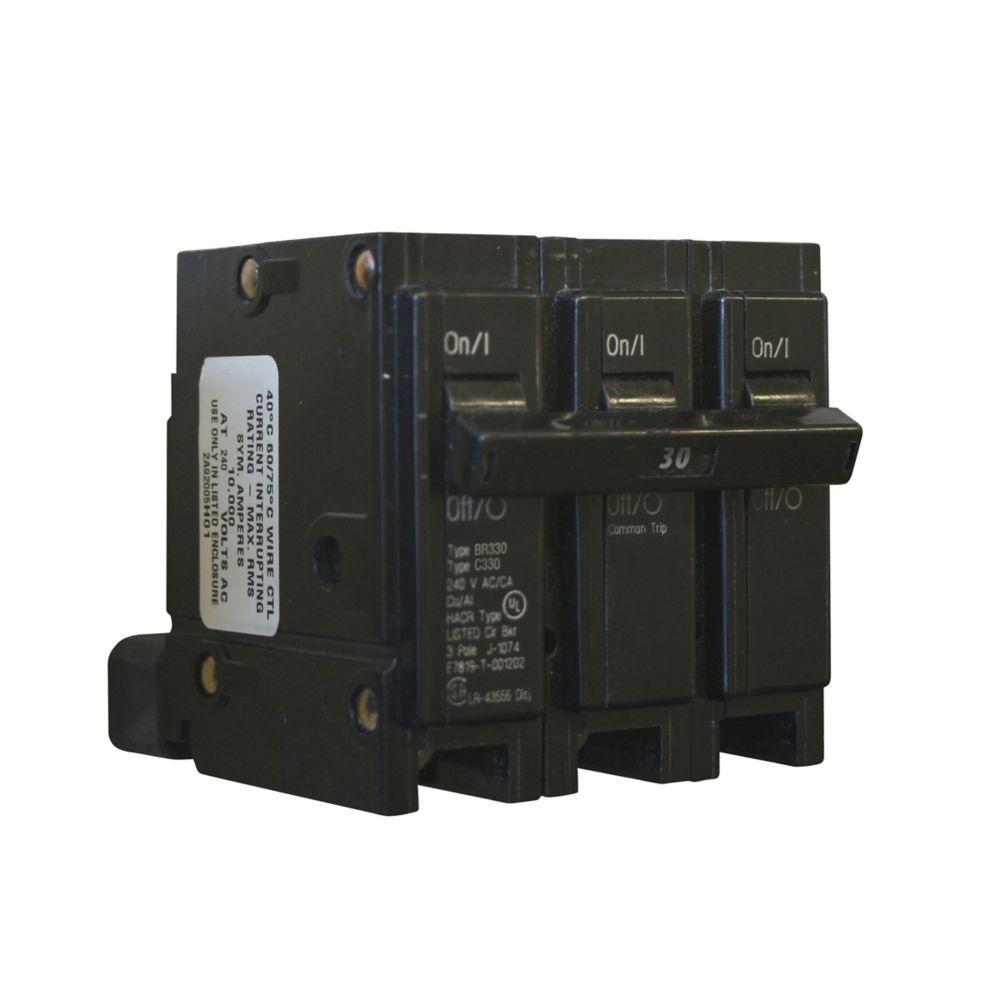

EATON BR330 Type BR Circuit Breaker, 240 V AC, 30 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676367806
-
Manufacturer Part NumberBR330
-
CountryUSA
-
Temperature Rating600 to 750 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Voltage Rating240 V AC
-
Amperage Rating30 A
-
Wire Size14 to 4 AWG
-
Number of Poles3
-
Dimensions3 in L x 3 in W x 3 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/4X/3R
-
Phase3
- Common trip requires three 1 in spaces
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design
- For 3-pole circuit breakers carry listing for HACR applications
-
Alternative Part Number7434745
-
UNSPSC39121601
-
IDEA Index ID7434745
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty10 years
-
Specification Sheet
-
Catalog
-
Line Drawing
