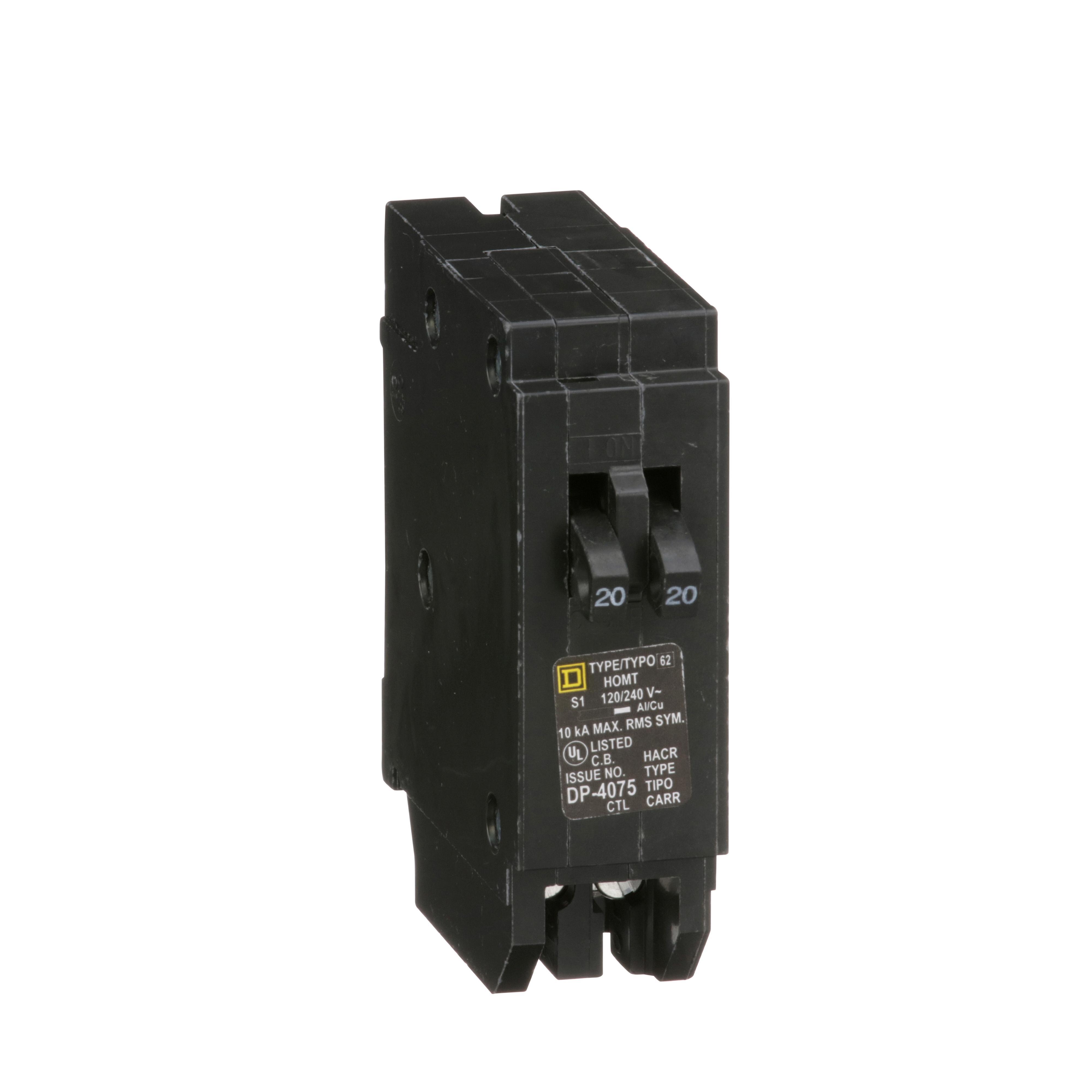

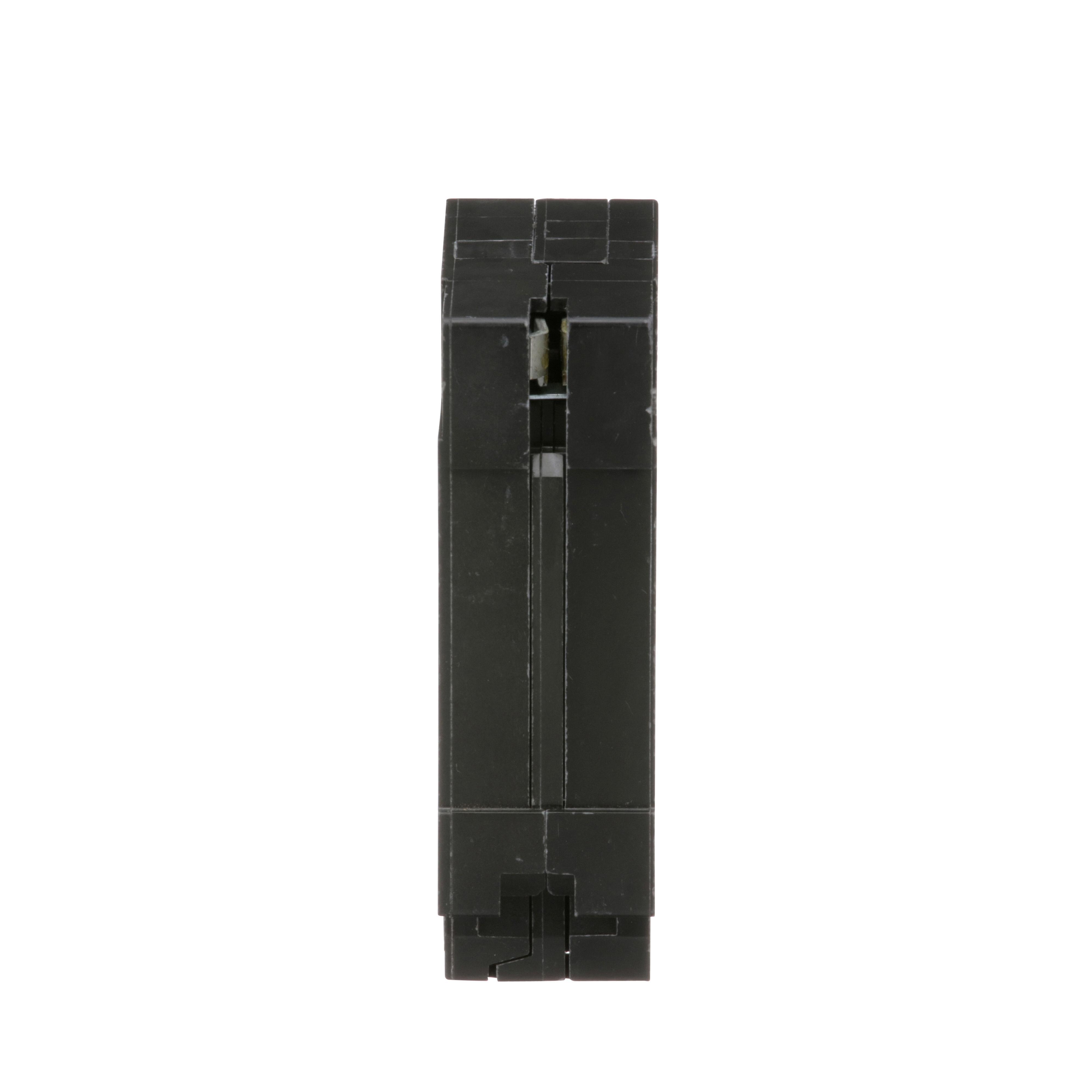

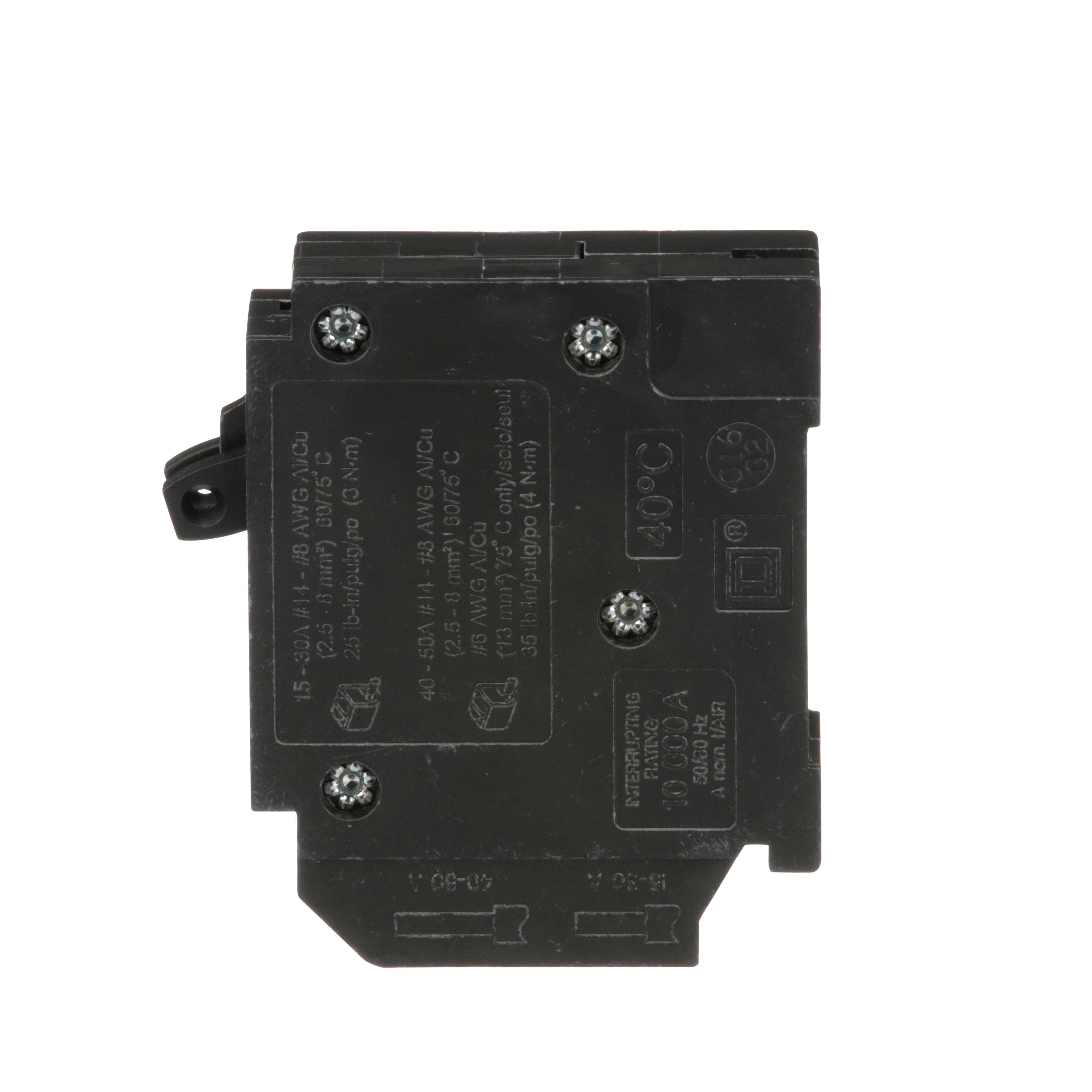

Square D™ Homeline™ HOMT2020 Tandem Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM plug in miniature tandem breaker with plug in mounting is rated 20A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. HOMT tandem breakers are UL Listed.
-
BrandSquare D™
-
UPC785901065401
-
Manufacturer Part NumberHOMT2020
-
CountryUSA
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeTandem
-
Connection TypeScrew
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
SeriesHOM
-
Wire Size14 to 8 AWG
-
Number of Poles1
-
Dimensions2.98 in L x 1 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Phase1
- Easy plug on design reduces installation time and cost
- Multiple applications Homeline™ circuit breakers offer a full range of amperage, poles and advanced function devices that offer superior arc fault, combination arc fault (CAFI) and ground fault (Class A, GFCI) and dual function (CAFI and GFCI) protection
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- For heating, air conditioning and refrigeration
- 14 to 8 AWG aluminum/copper wire
- Screw clamp terminal connections
-
Alternative Part Number8003981
-
UNSPSC39121603
-
IDEA Index ID8003981
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.p65warnings.ca.gov
-
WarrantyLifetime
-
