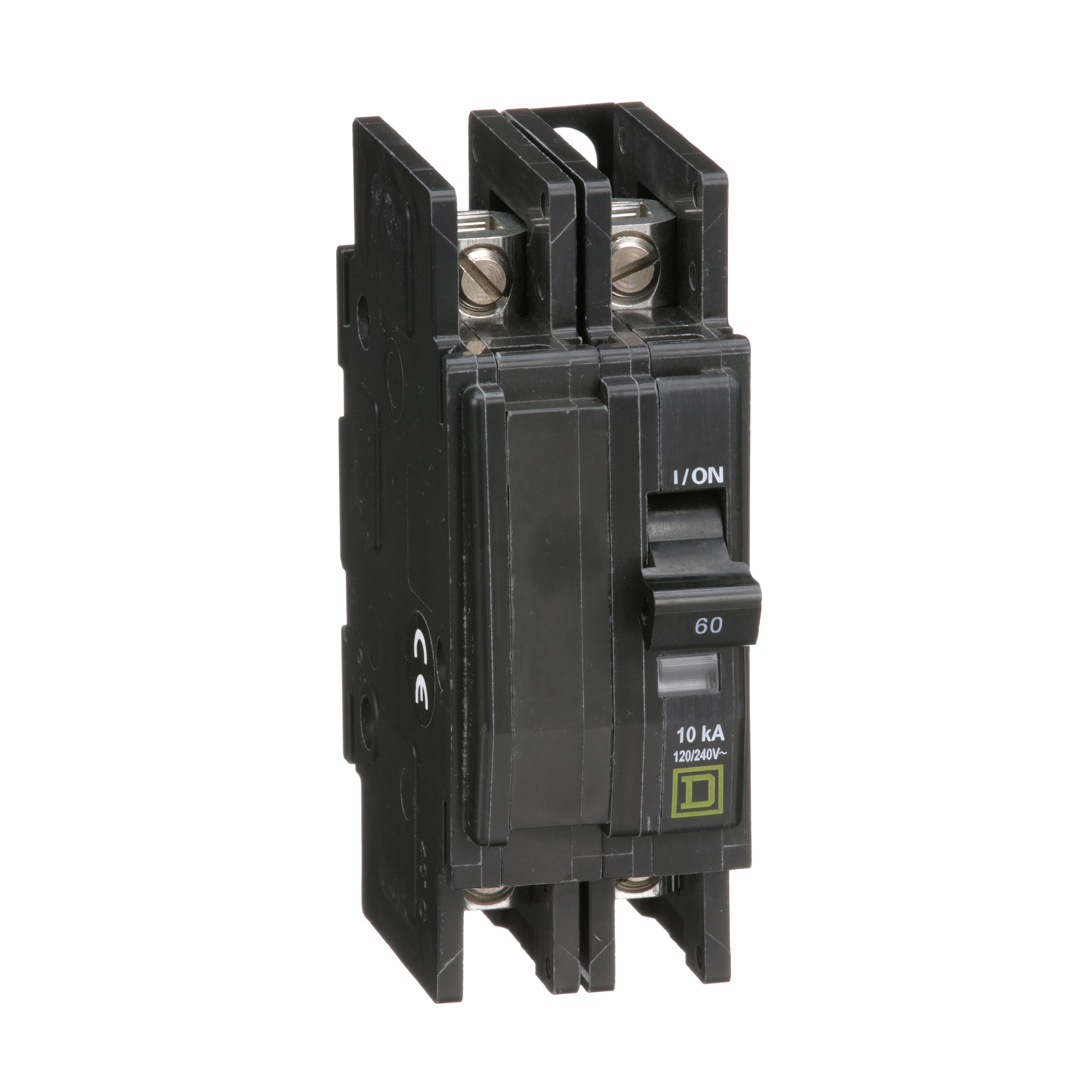

Square D™ QO™ QOU260 Type QOU Standard Unit Mount Miniature Circuit Breaker, 120/240 V AC, 60 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 60A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.
-
BrandSquare D™
-
UPC785901418801
-
Manufacturer Part NumberQOU260
-
CountryUSA
-
Temperature Rating104 deg F
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
ColorBlack
-
TypeType QOU Standard Unit Mount
-
Connection TypeBox Lug
-
Mounting TypeDIN Rail/Flush
-
Actuator TypeToggle
-
Voltage Rating120/240 V AC
-
Amperage Rating60 A
-
Wire Size14 to 2 AWG
-
Number of Poles2
-
Dimensions2.95 in L x 1.5 in W x 4.05 in H
-
Interrupt Rating10 kA
-
Phase1
- QO MCBs are designed to sheild electronics from short-circuits and overcurrent
- Provides instaneous and time-delayed overcurrent protection
- Idle application for OEMs due to their high performances and multiple mounting options
- Automatically open a circuit under overload or short circuit conditions
- Feature common tripping of all poles
- Visi-Trip® trip indicator
- Lugs at both ends (cable-in/cable-out construction)
- Operate in any position
- Single handle with internal common trip
- Reversible line and load lugs
- Field installable quick connectors
- 10 kA short circuit current
- 14 to 2 AWG aluminum/copper wire
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5B992 |
-
Alternative Part Number8042739
-
UNSPSC39121603
-
IDEA Index ID8042739
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|RoHS Compliant|UL 489 File No. E84967|CSA C22.2 No. 5.1|CE Certified|IEC 60947-2|HACR Rated|SWD Rated|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
