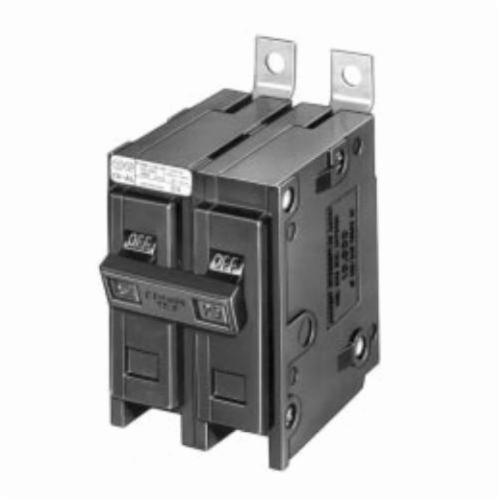

Cutler-Hammer BAB2020 Type BAB Molded Case Industrial Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
EatonĀ® bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from one-, two-, or three-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from Bolt-On Types BAB, QBHW, HBAX, HBAW.
-
BrandCutler-Hammer
-
UPC786679302200
-
Manufacturer Part NumberBAB2020
-
CountryUSA
-
Temperature Rating40 deg C
-
Trip TypeThermal Magnetic
-
TypeType BAB Molded Case
-
Connection TypeLoad Lug
-
Mounting TypeBolted-On
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 4 AWG
-
Number of Poles2
-
Dimensions6-1/4 in H x 3-1/2 in W x 2-1/4 in D
-
Interrupt Rating10 kA
-
Phase1
- Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
- Field-mountable accessories make installation and on-site custom configuration easy
- Compact designs available to minimize panel size
- Fixed instantaneous trip
- Cu/Al wire
- Non-interchangeable trip
-
UNSPSC39121603
-
Standards/ApprovalsUL Listed,CSA Certified
-
