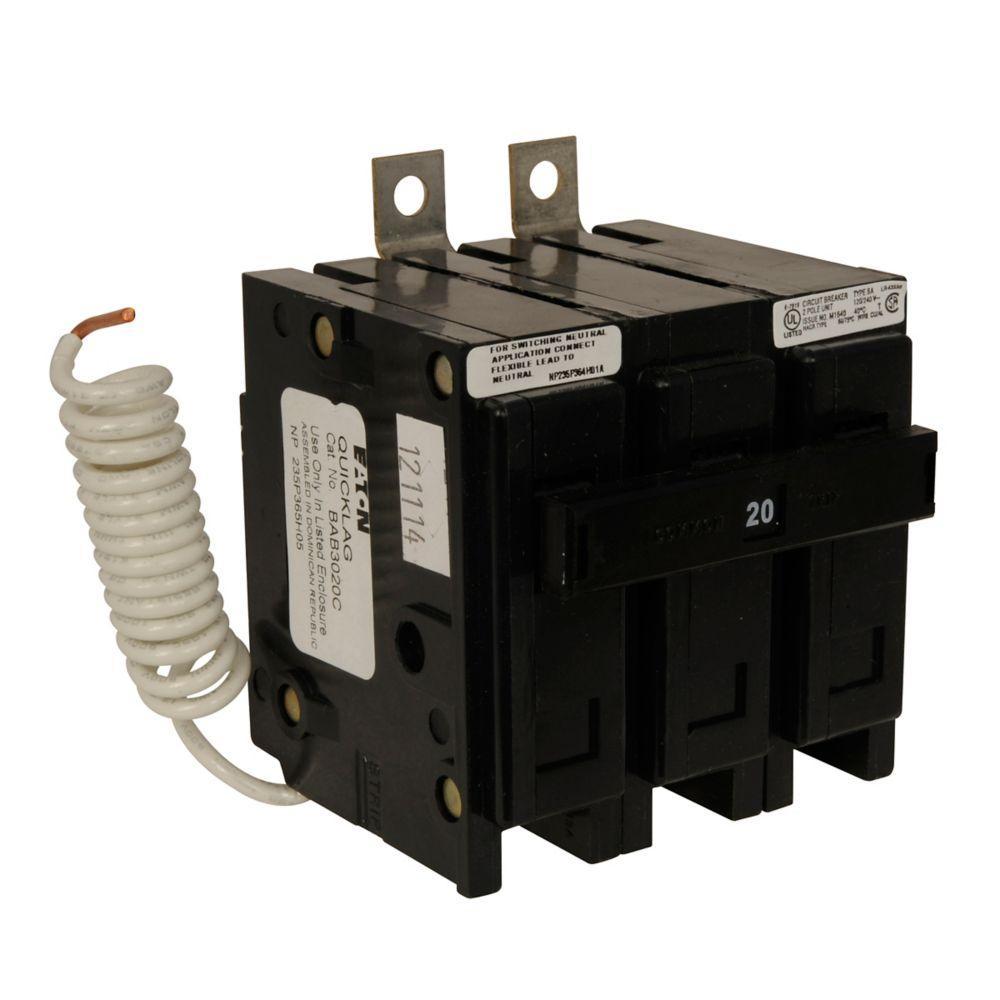

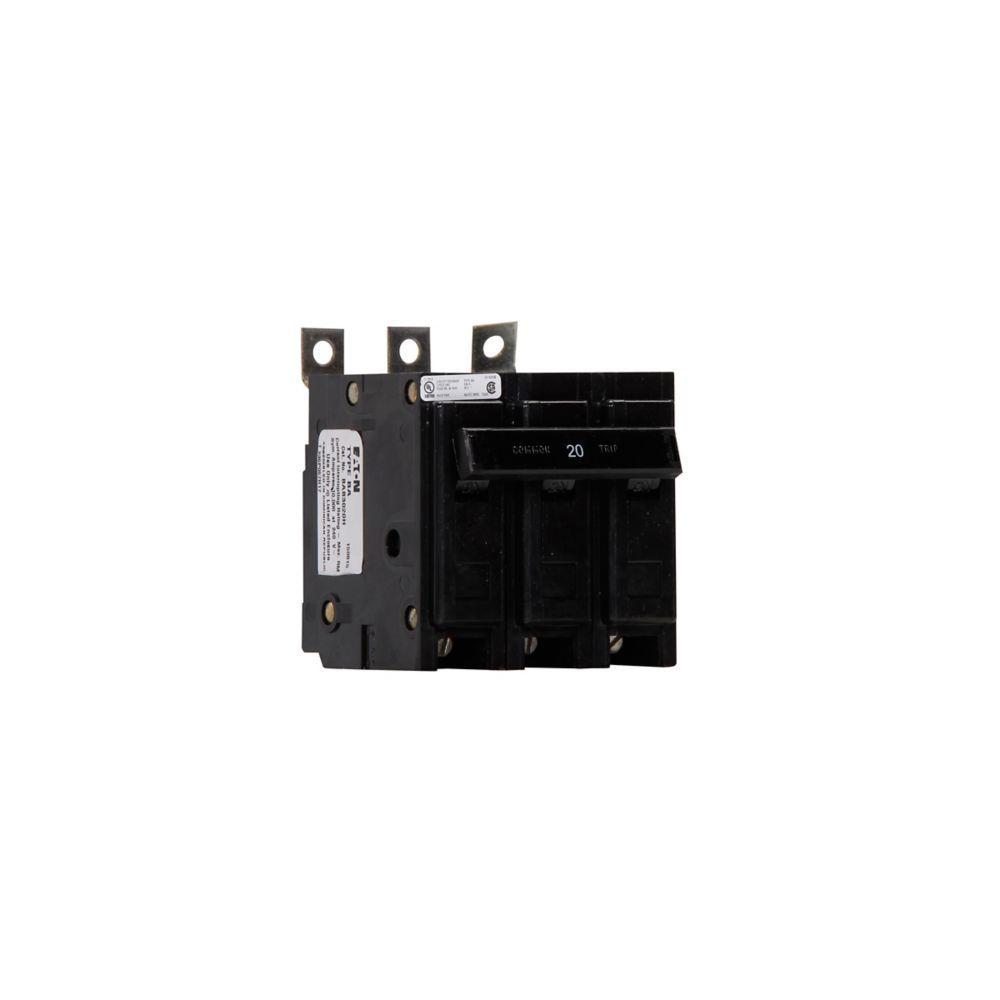

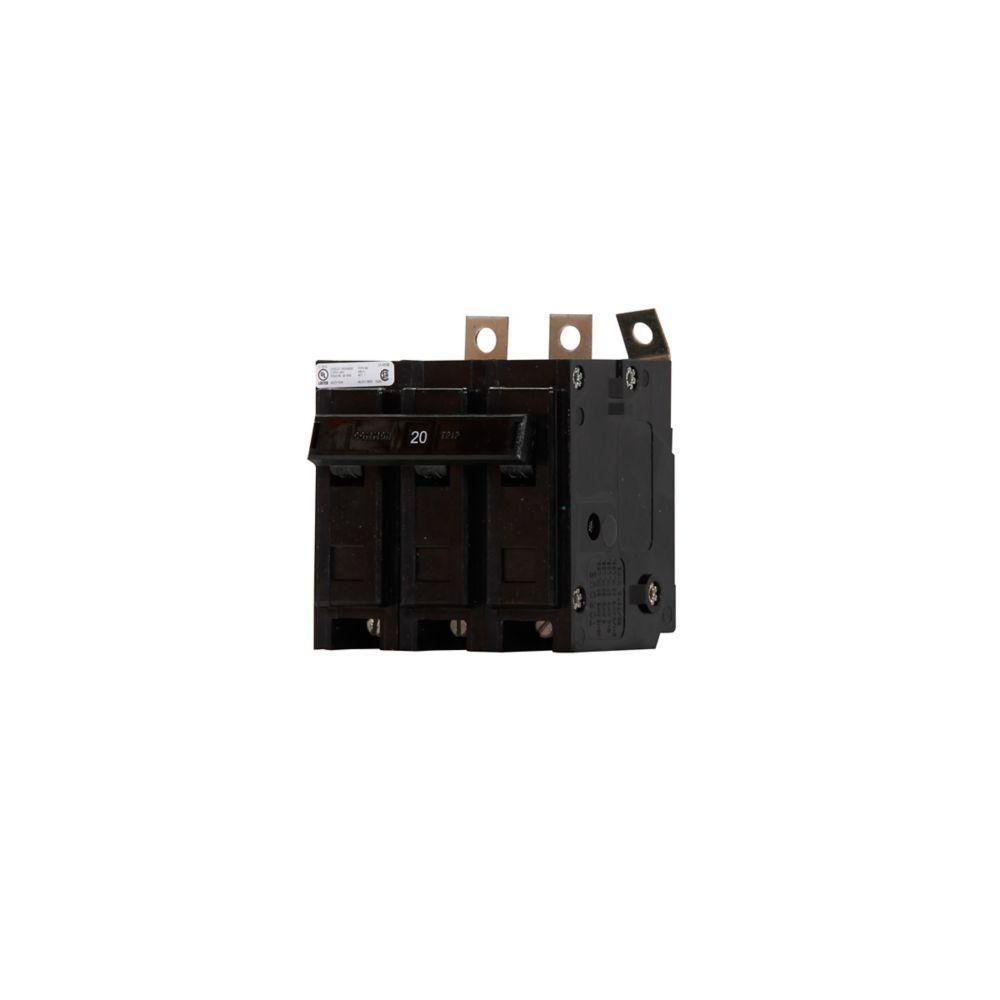

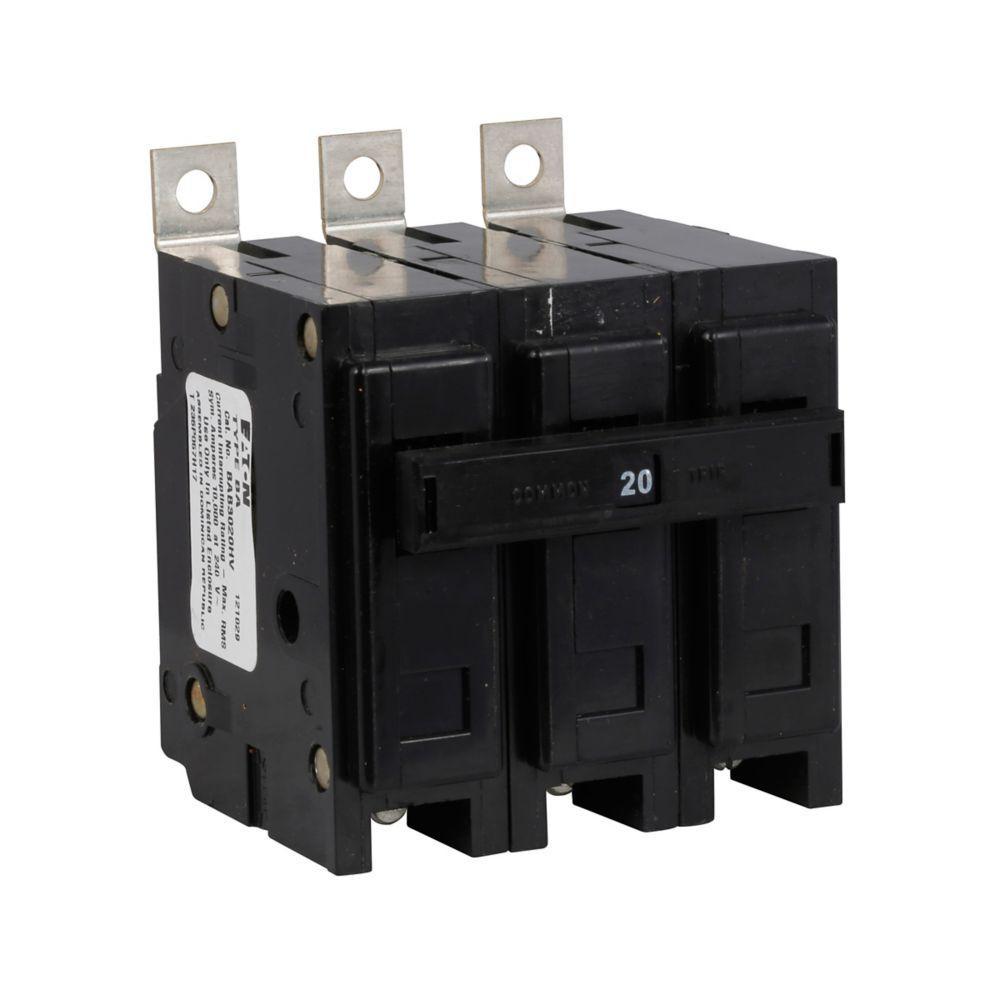

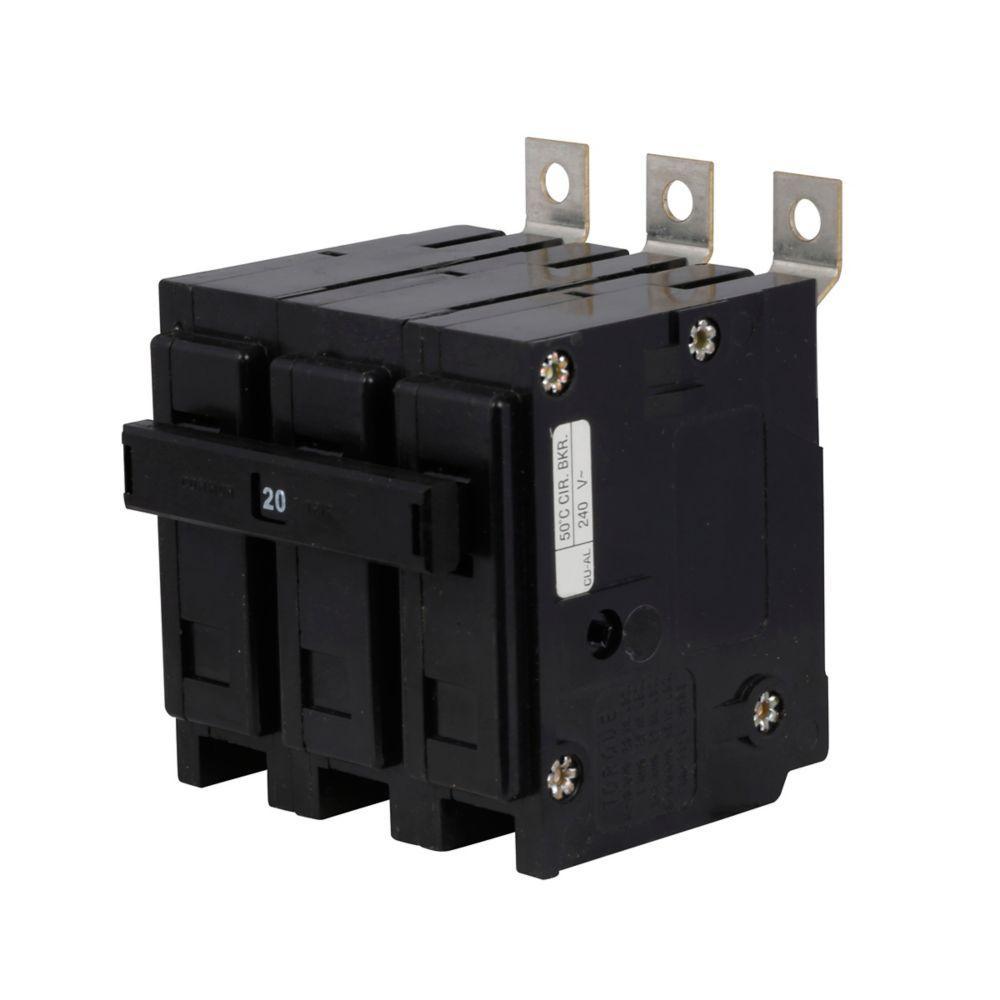

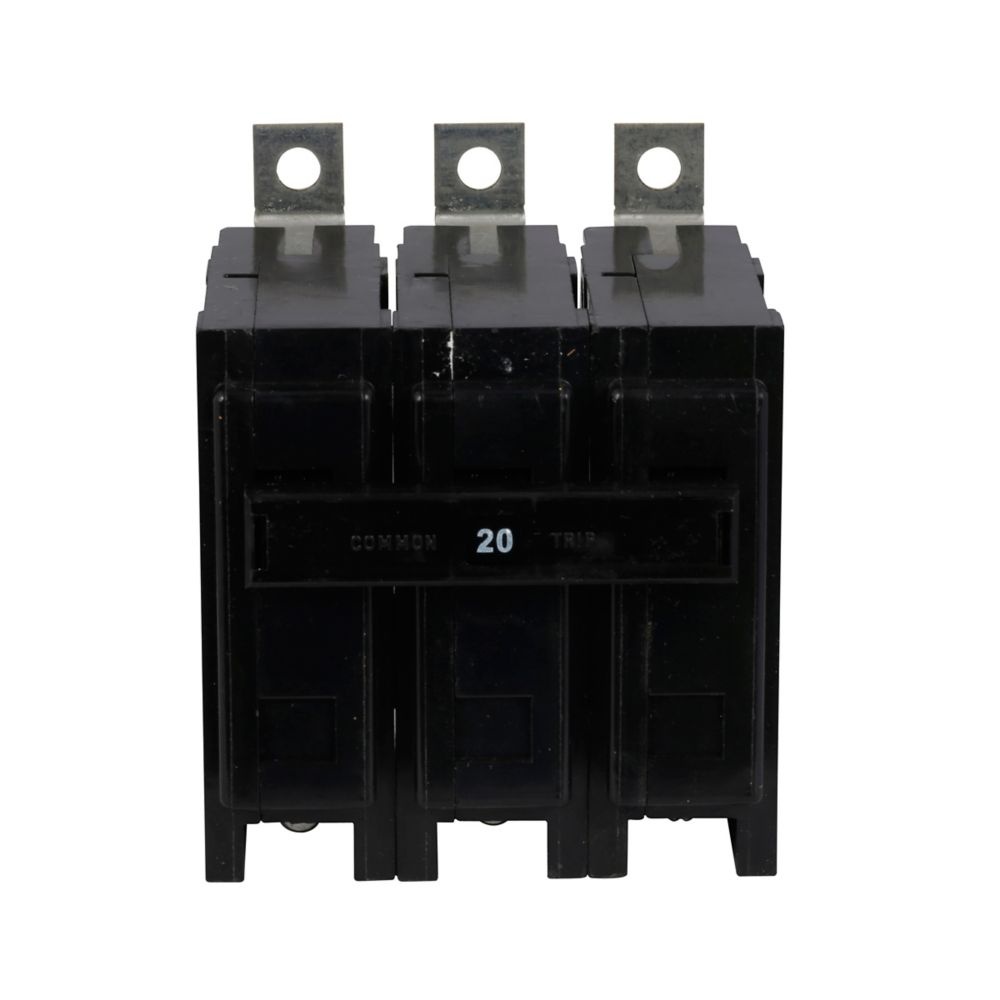

EATON QuickLag® BAB3020H Type BAB Miniature Circuit Breaker, 240 V AC, 20 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.
-
BrandEATON
-
UPC786679303207
-
Manufacturer Part NumberBAB3020H
-
CountryUSA
-
Temperature Rating40 deg C
-
Trip TypeThermal Magnetic
-
TypeType BAB
-
Connection TypeExtended Tang Line Terminal
-
Mounting TypeBolt-On
-
Voltage Rating240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 4 AWG
-
Number of Poles3
-
Dimensions3-3/8 x 3 x 3-1/2 in
-
Interrupt Rating10 kA
- Flexible power feed connection
- Field mountable accessories make installations and on-site custom configuration easy
-
Alternative Part Number7433396
-
UNSPSC39121603
-
IDEA Index ID7433396
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Listed
-
Specification Sheet
-
Owners/User Manual
