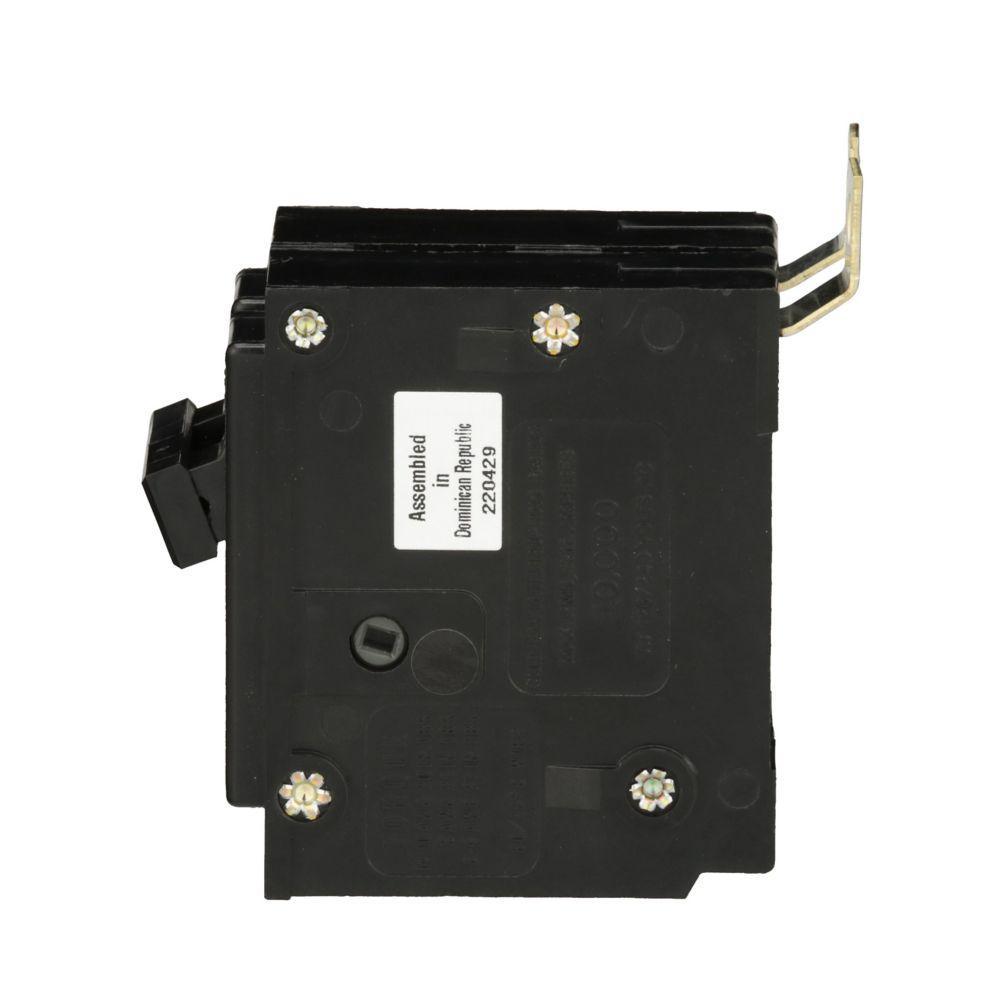

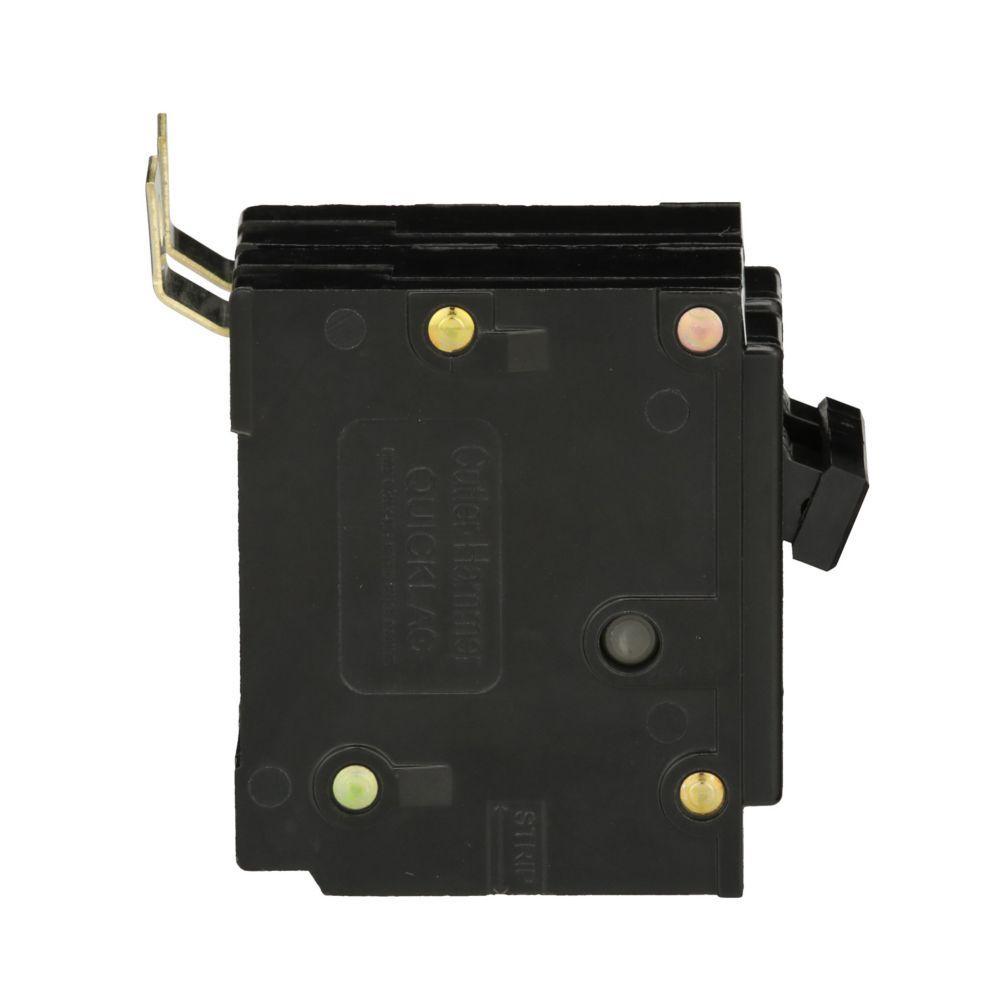

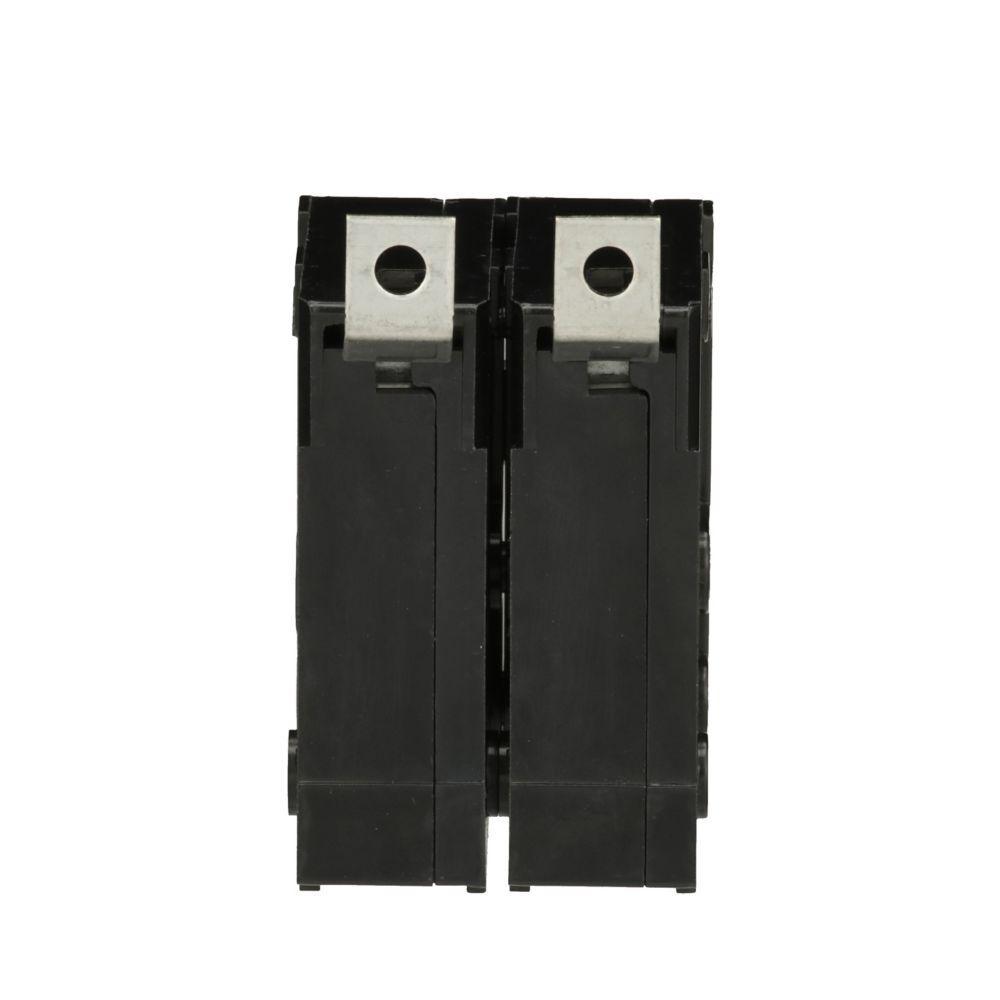

EATON QuickLag® BAB2060 Type BAB Miniature Circuit Breaker, 120/240 V AC, 60 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Eaton’s bolt-on miniature circuit breakers (Quicklag) provide superior protection in panelboards, and offer easy installation. They are also switching duty rated for 120 VAC fluorescent light applications, and UL 489 listed. All products 15–100A are HACR rated. Select from one-, two-, or three-pole designs.
-
BrandEATON
-
UPC786679302606
-
Manufacturer Part NumberBAB2060
-
CountryUSA
-
Temperature Rating40 deg C
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeType BAB
-
Connection TypeSteel Box Lug
-
Mounting TypeBolt-On
-
Voltage Rating120/240 V AC
-
Amperage Rating60 A
-
Wire Size8 to 1/0 AWG
-
Number of Poles2
-
Dimensions3.8 in L x 2.2 in W x 4.8 in H
-
Interrupt Rating10 kA
-
Phase1
- Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installations
- Field mountable accessories make installations and on-site custom configuration easy
-
Alternative Part Number7433305
-
UNSPSC39121603
-
IDEA Index ID7433305
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Listed
-
Specification Sheet
-
Owners/User Manual
