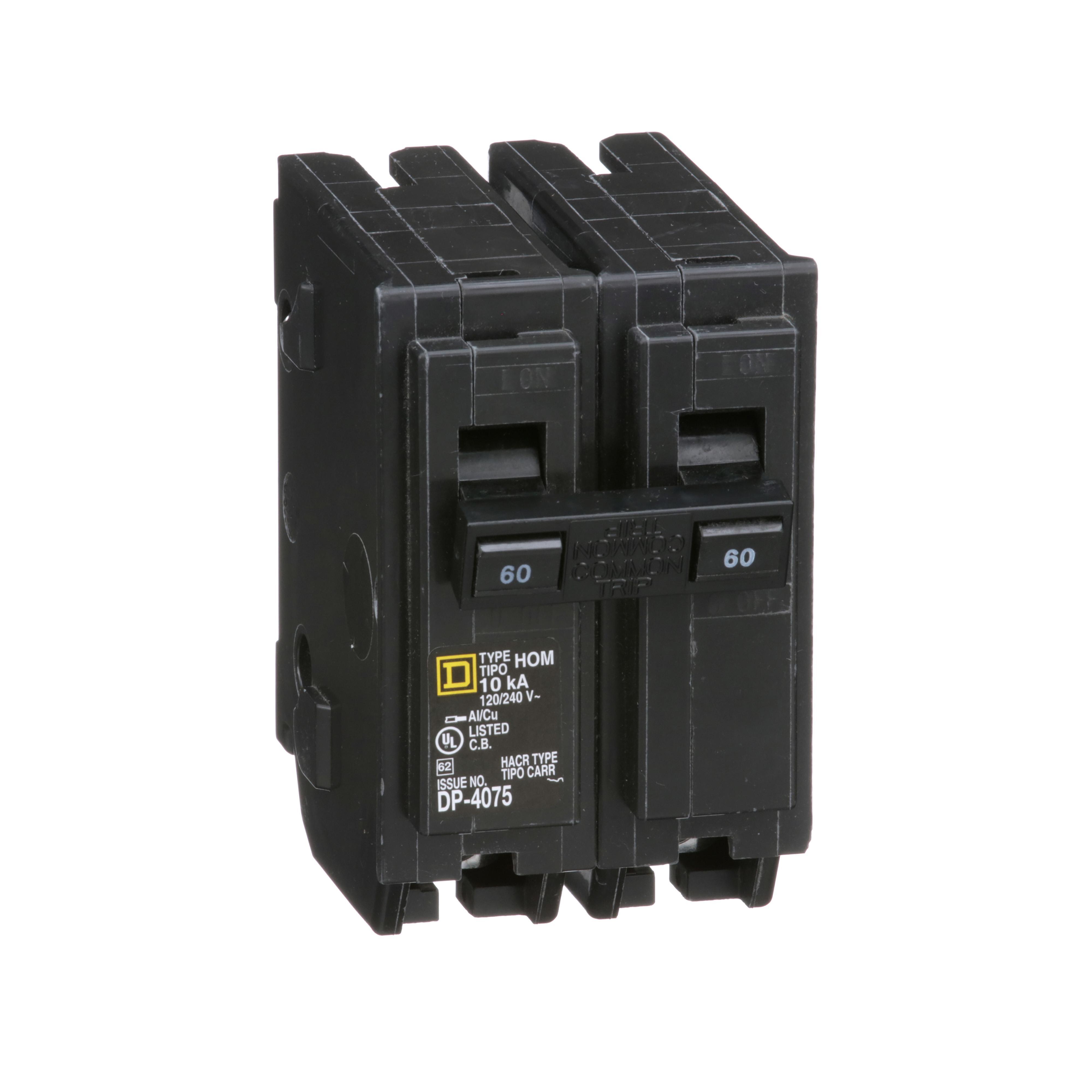

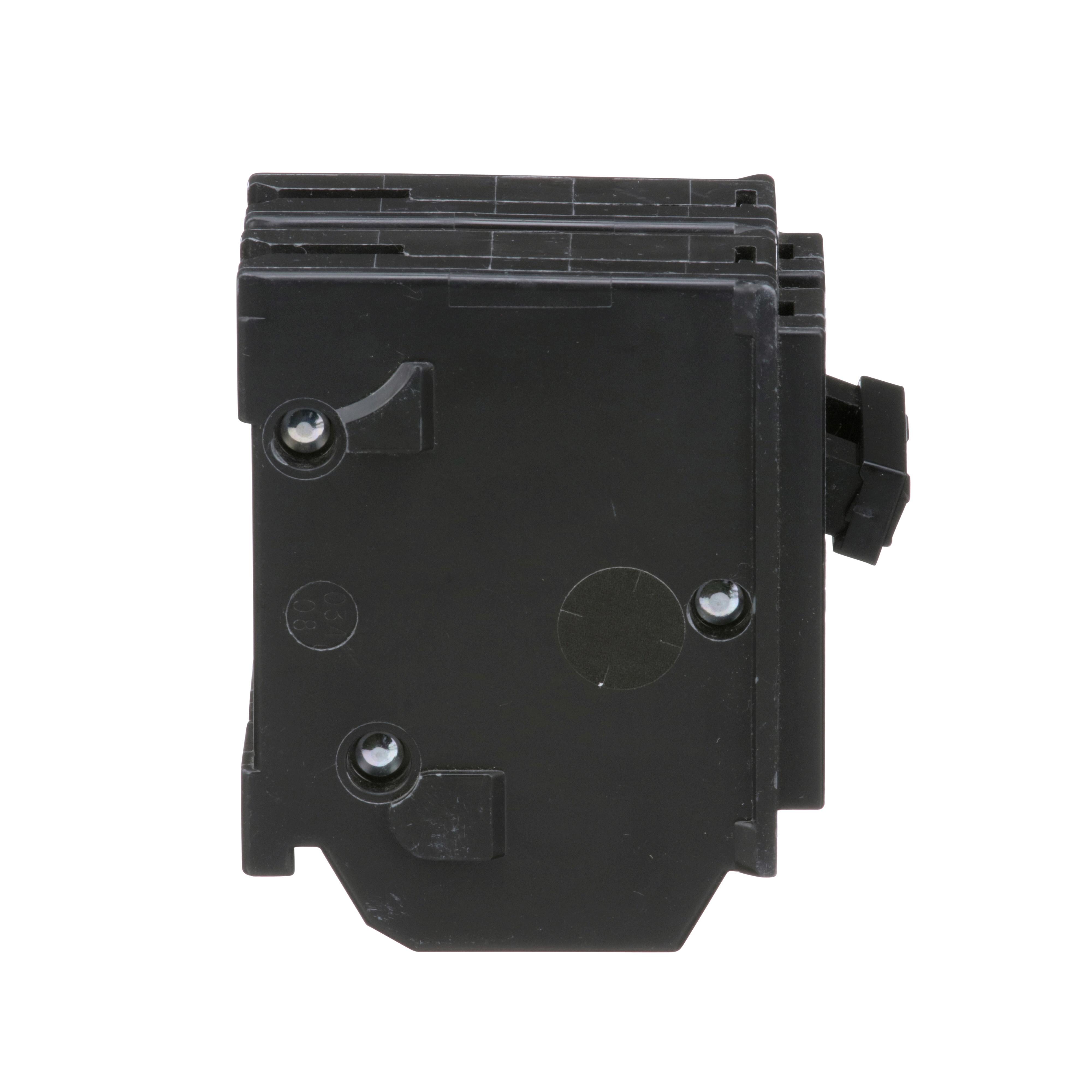

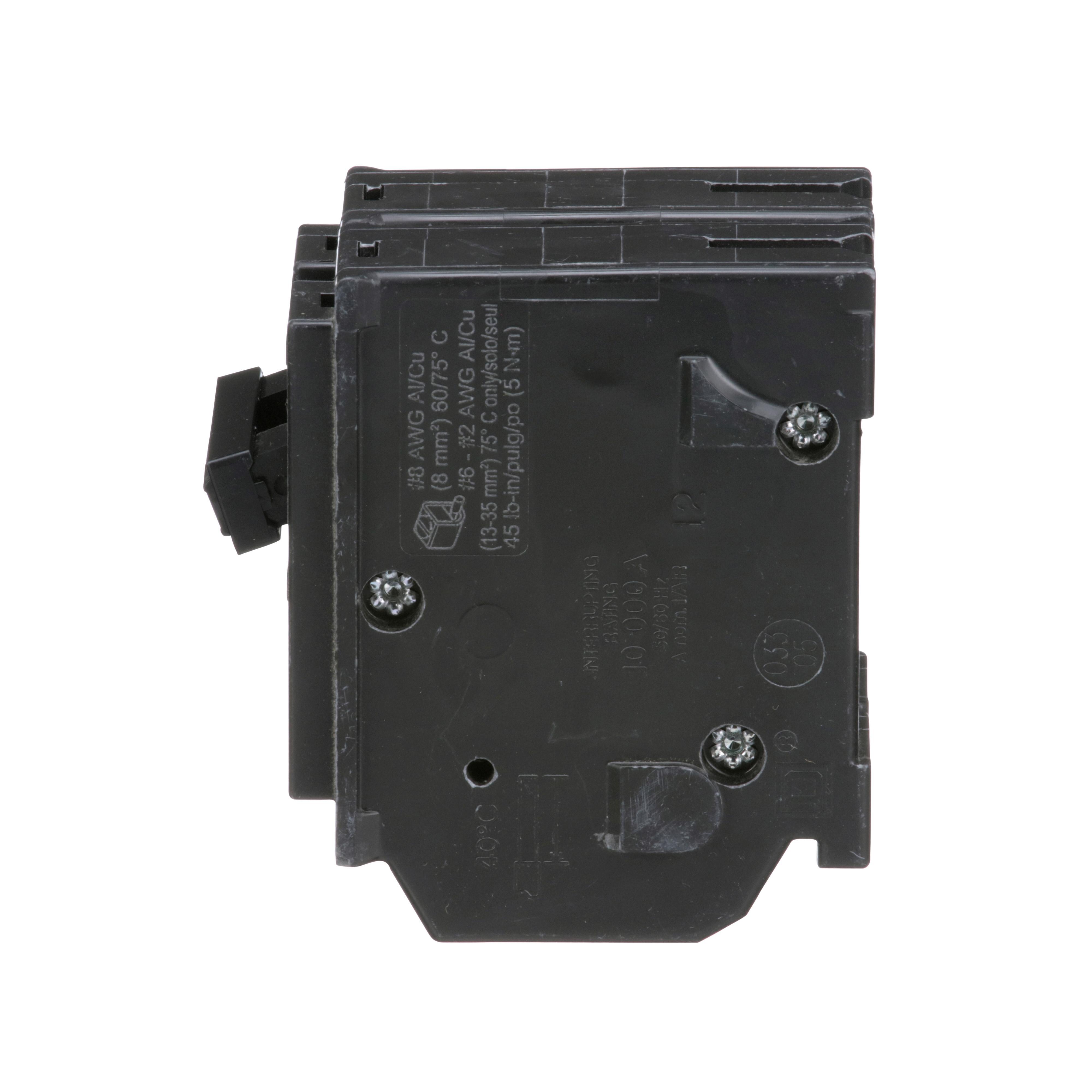

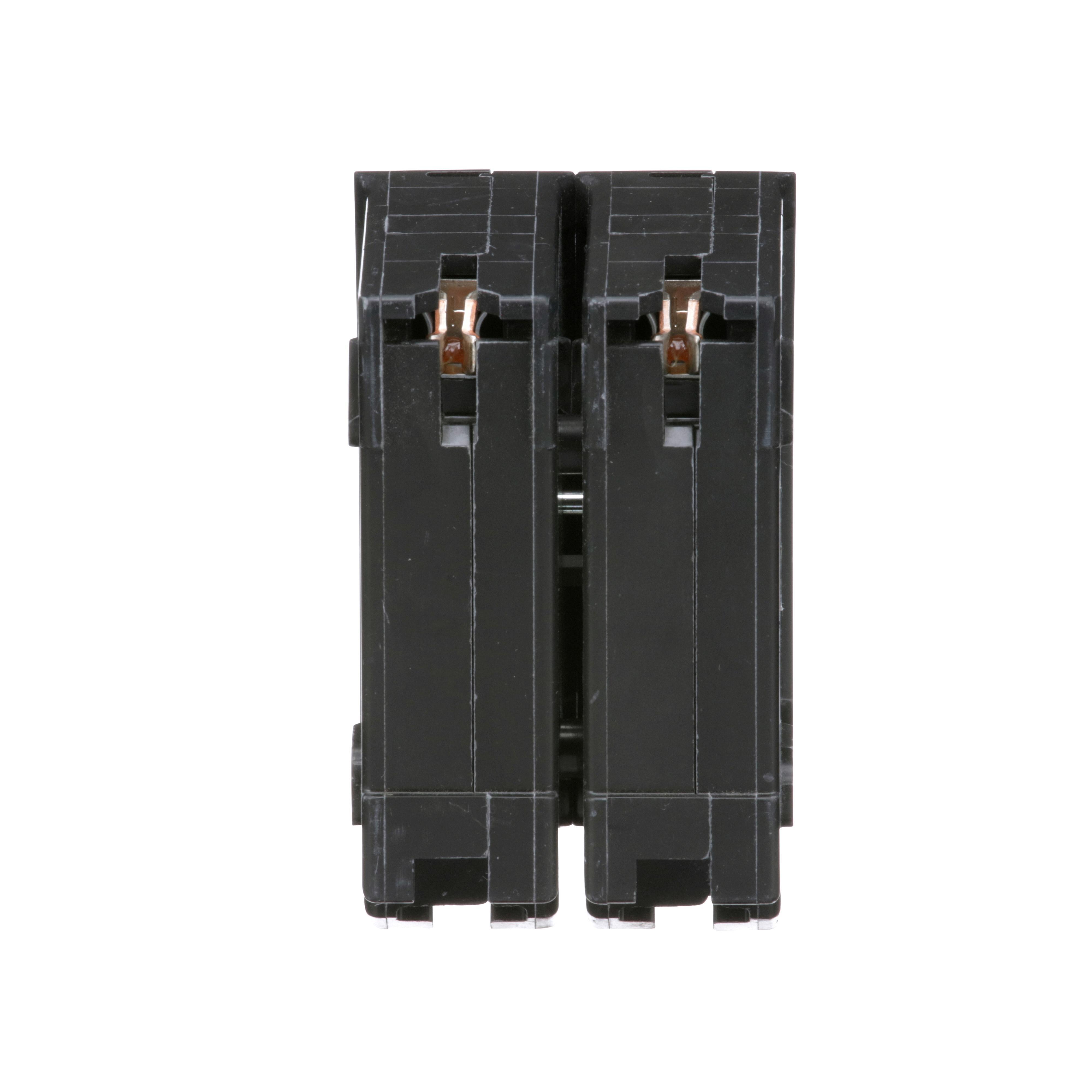

Square D™ Homeline™ HOM260 Standard Miniature Circuit Breaker, 120/240 V AC, 60 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 60A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare D™
-
UPC785901065333
-
Manufacturer Part NumberHOM260
-
CountryUSA
-
Temperature Rating104 deg F
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeStandard
-
Connection TypeTerminal Screw
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating60 A
-
Wire Size8 to 2 AWG
-
Number of Poles2
-
Dimensions2.98 in L x 2 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Phase1
- Easy plug on design with SE Homeline Loadcenters
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Square D™ Homeline™ circuit breakers are in a 1 in wide format for 1-pole circuit breakers
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1D359 |
-
Alternative Part Number8001770
-
UNSPSC39121603
-
IDEA Index ID8001770
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|HACR Rated|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
WarrantyLifetime
-
