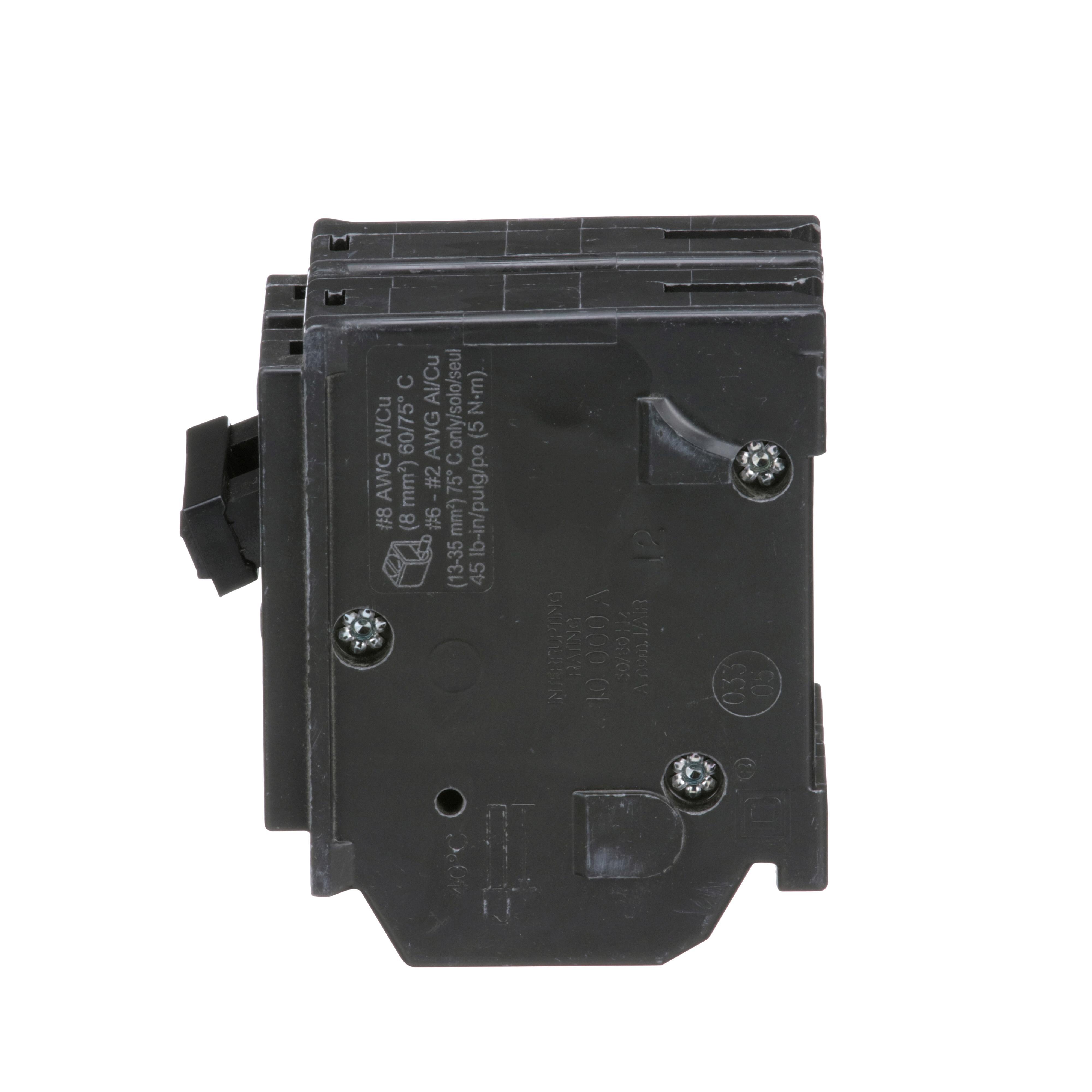

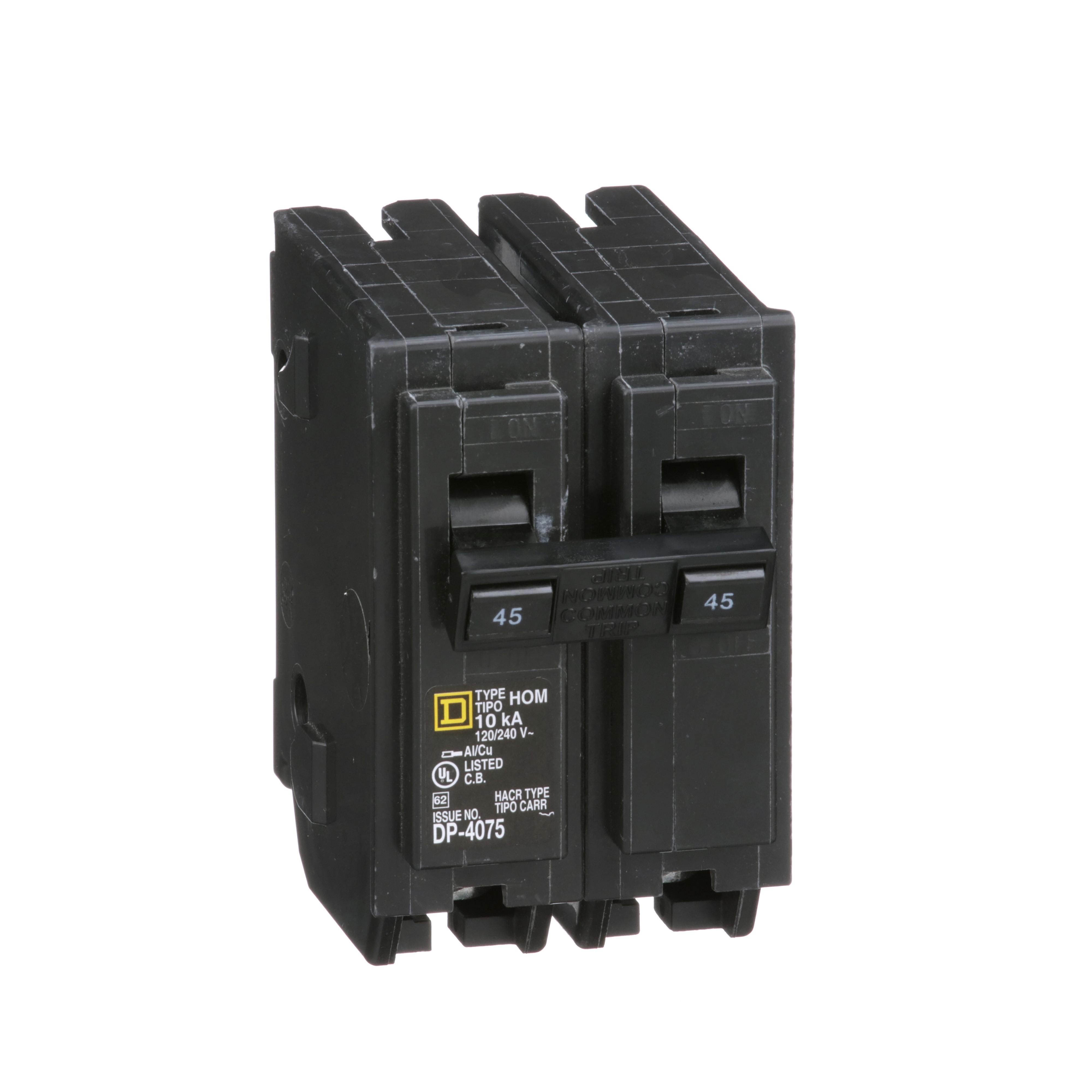

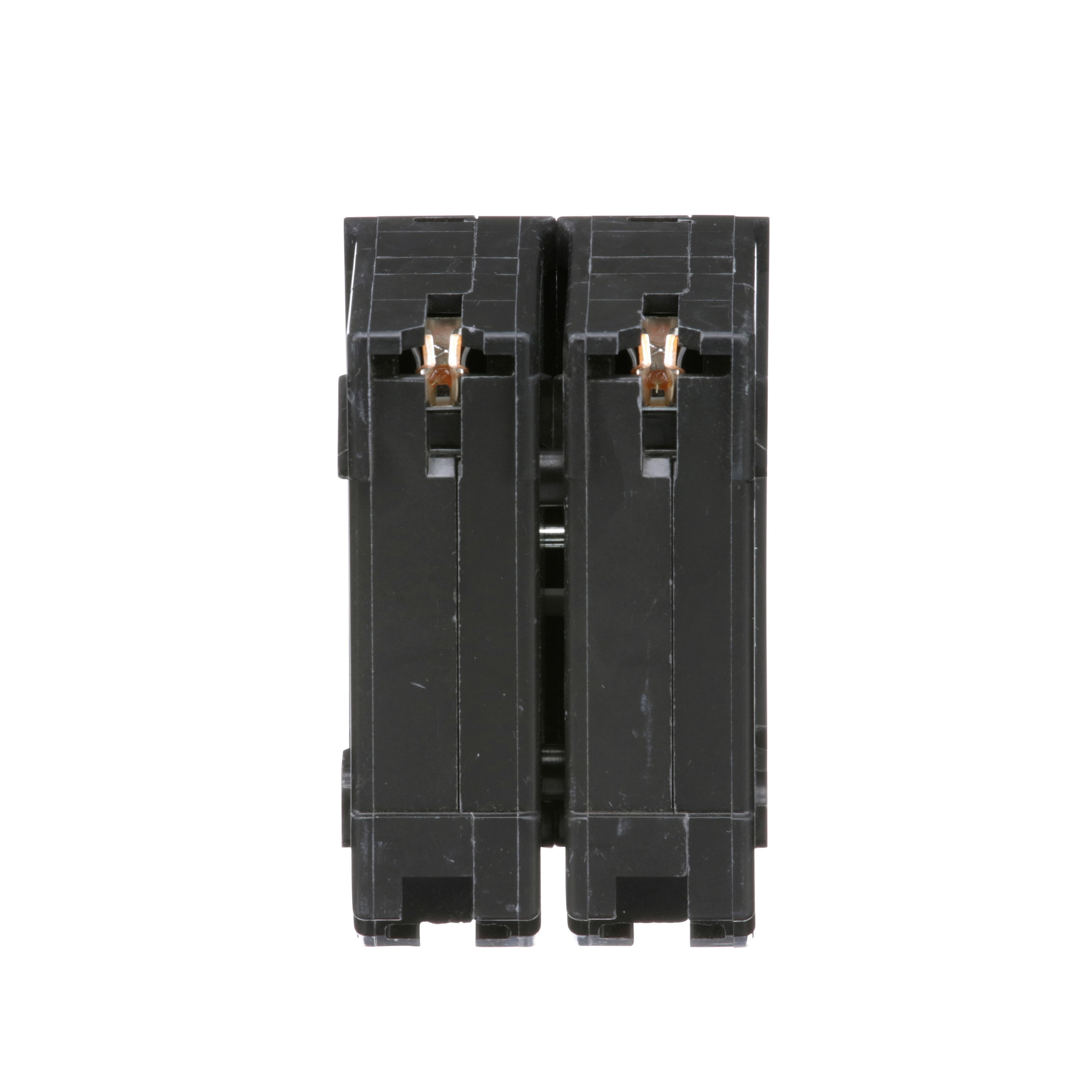

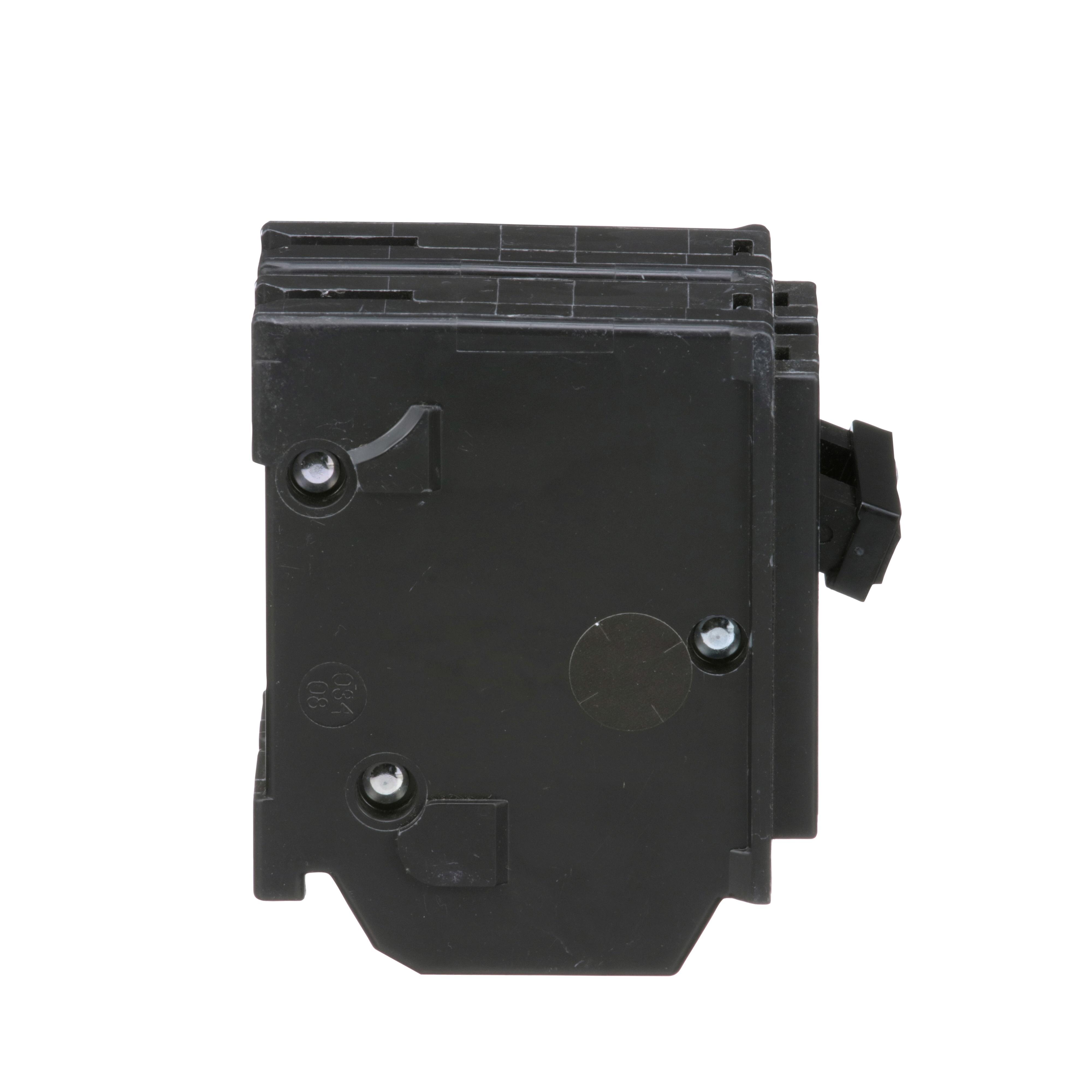

Square D™ Homeline™ HOM245 Standard Miniature Circuit Breaker, 120/240 V AC, 45 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 45A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare D™
-
UPC785901065500
-
Manufacturer Part NumberHOM245
-
CountryUSA
-
Temperature Rating104 deg F
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeStandard
-
Connection TypeTerminal Screw
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating45 A
-
Wire Size8 to 2 AWG
-
Number of Poles2
-
Dimensions2.98 in L x 2 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Phase1
- Easy plug on design with SE Homeline Loadcenters
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Square D™ Homeline™ circuit breakers are in a 1 in wide format for 1-pole circuit breakers
-
Alternative Part Number8004062
-
UNSPSC39121603
-
IDEA Index ID8004062
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|RoHS Compliant|UL Listed|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
WarrantyLifetime
-
RoHS
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
