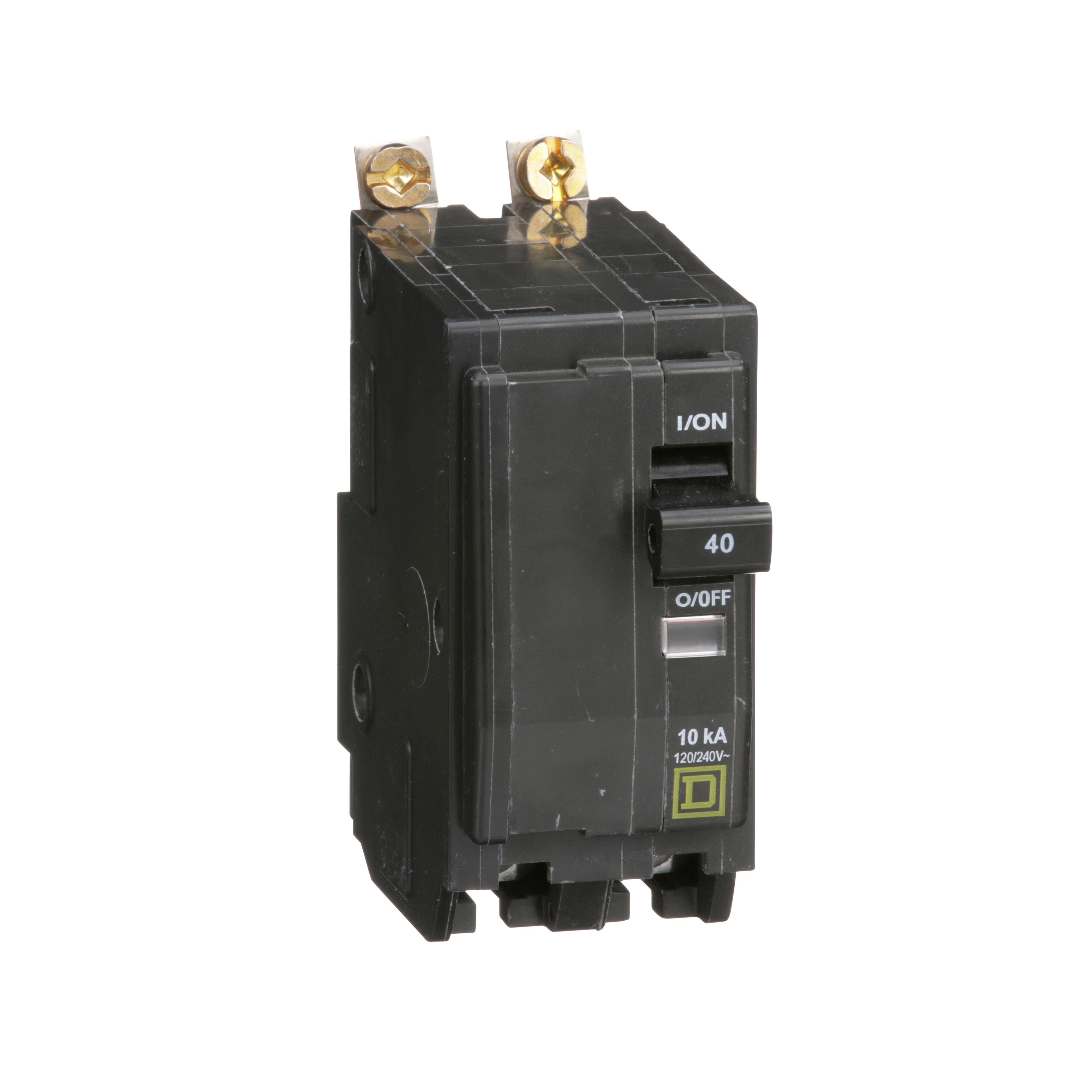

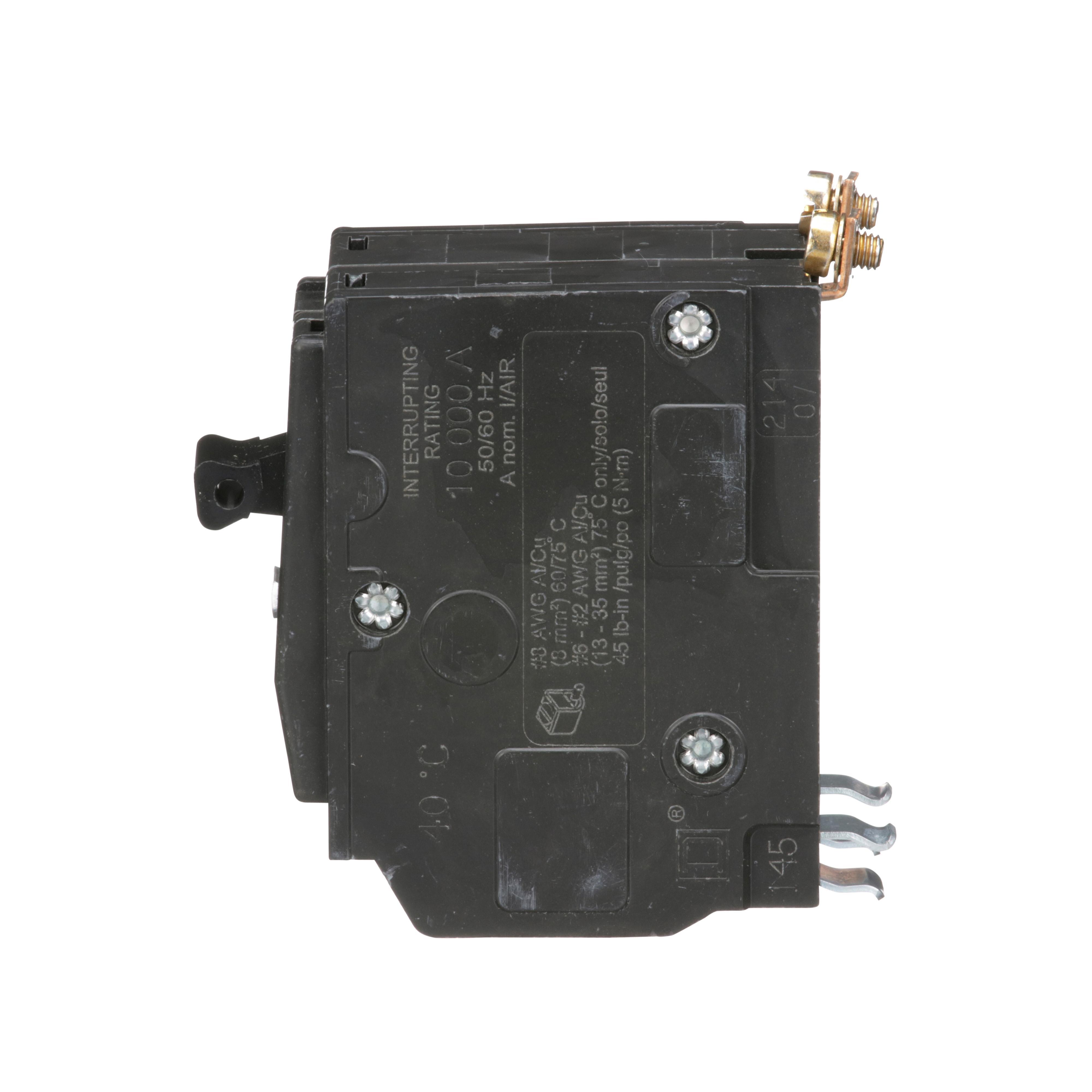

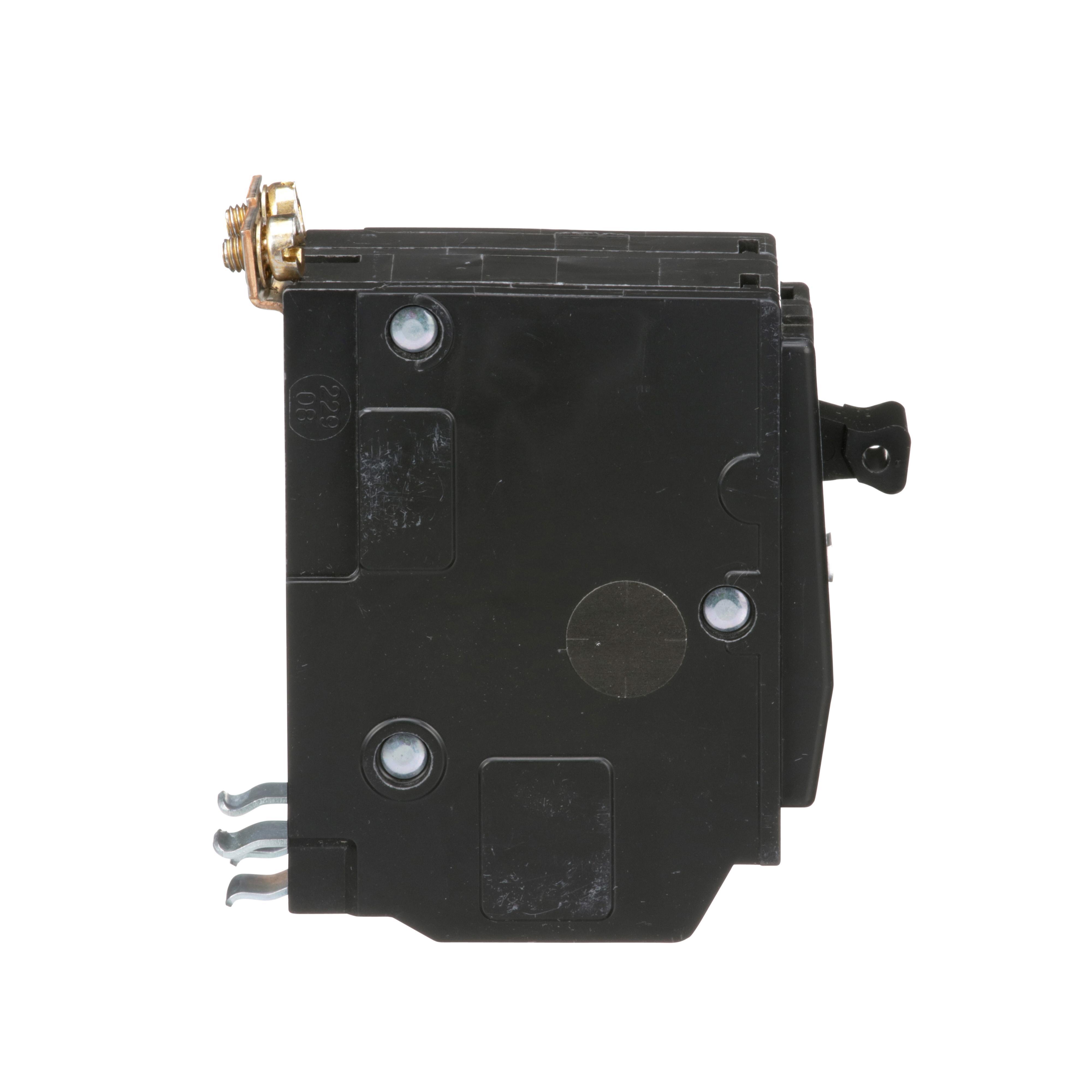

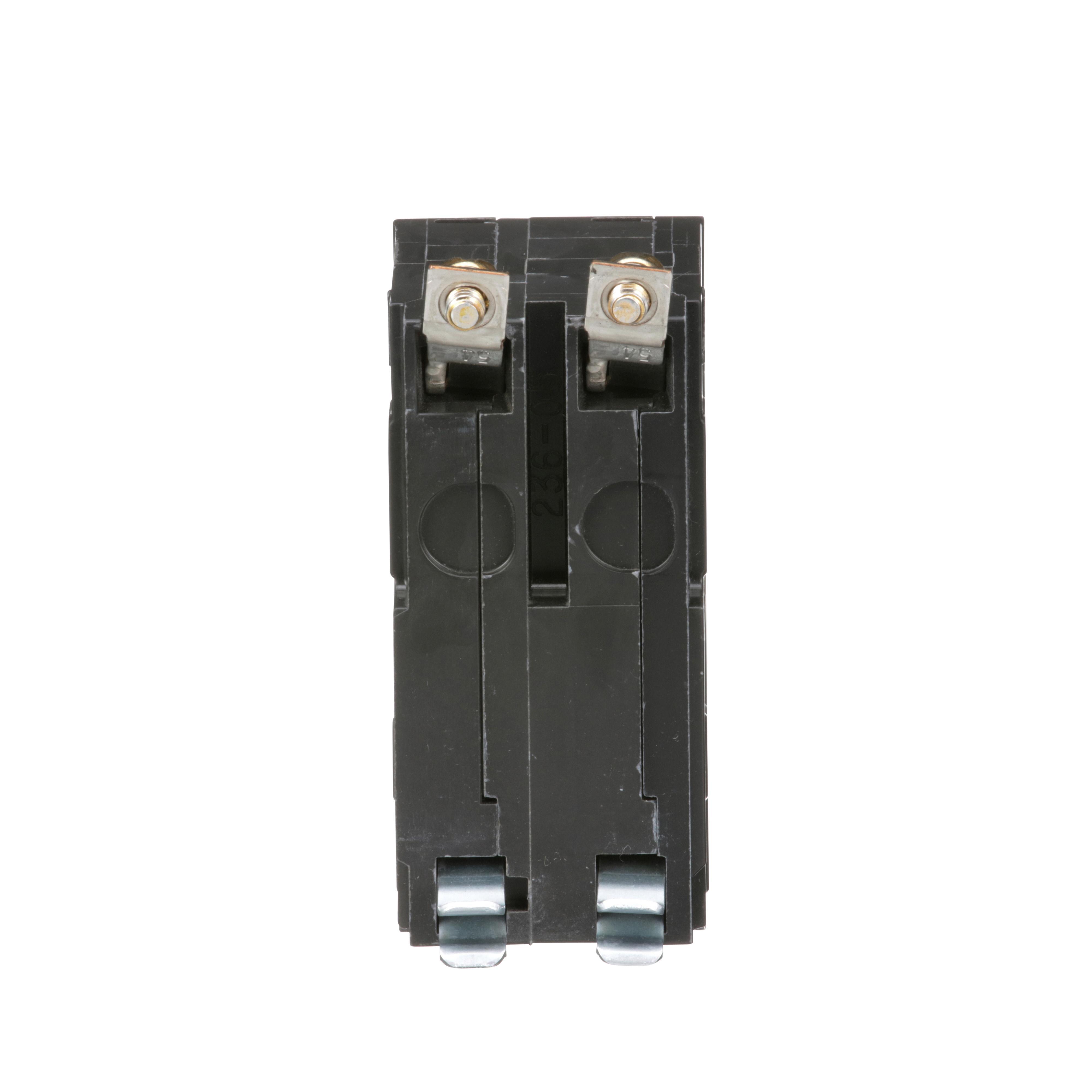

Square-D 40-AMP 2-POLE BOLT-ON CIRC/BREAKER SQU QO-B-2-40
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 40A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
-
BrandSquare Dâ„¢
-
UPC785901416944
-
Manufacturer Part NumberQOB240
-
CountryUSA|Canada
-
Temperature Rating40 deg C
-
FrameQOB
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeStandard
-
Connection TypeBox Lug
-
Mounting TypeBolt-On
-
Voltage Rating120/240 V AC
-
Amperage Rating40 A
-
Wire Size8 to 2 AWG
-
Number of Poles2
-
Dimensions2.91 in L x 1.5 in W x 3.12 in H
-
Interrupt Rating10 kA
-
Phase1
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
- 10 kA at 120/240 VAC, 5 kA at 48 VDC interrupt rating
- 8 to 2 AWG aluminum/copper wire
- Standard
-
Alternative Part Number8041588
-
UNSPSC39121603
-
IDEA Index ID8041588
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 File No. 5|CSA Certified|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 489|UL Listed
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Full Engineering Drawing
-
Full Engineering Drawing
-
Technical Bulletin
