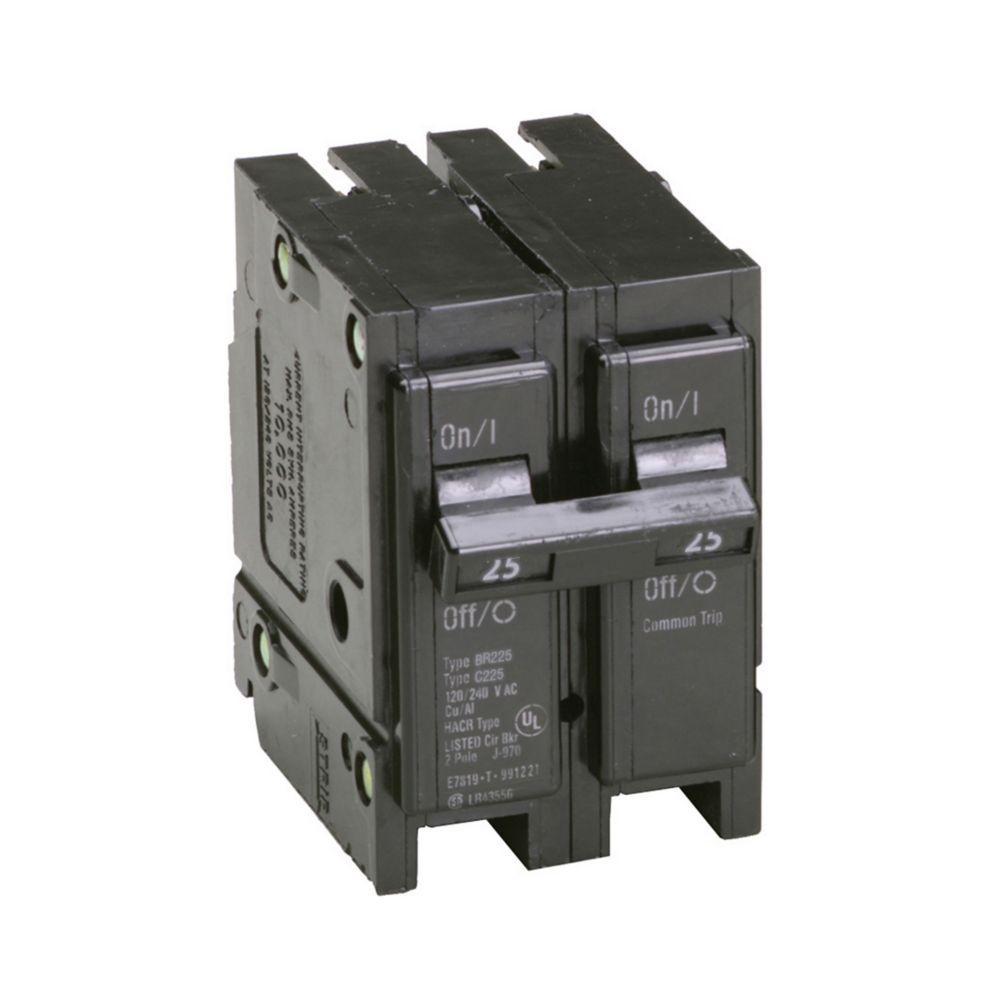

EATON BR225 Type BR Miniature Circuit Breaker, 120/240 V AC, 25 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676362900
-
Manufacturer Part NumberBR225
-
CountryUSA
-
Temperature Rating65 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating25 A
-
Wire Size14 to 4 AWG
-
Number of Poles2
-
Dimensions3 in L x 2 in W x 3 in H
-
Interrupt Rating10 kA
-
Phase1
- High performance MCB provides compact supplementary, energy limiting and circuit protection
- For branch circuit protection
- Fingersafe® and multi-function terminals
- Auxiliary contacts for circuit breaker
-
Alternative Part Number7434468
-
UNSPSC39121603
-
IDEA Index ID7434468
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty10 years
-
Specification Sheet
-
Catalog
