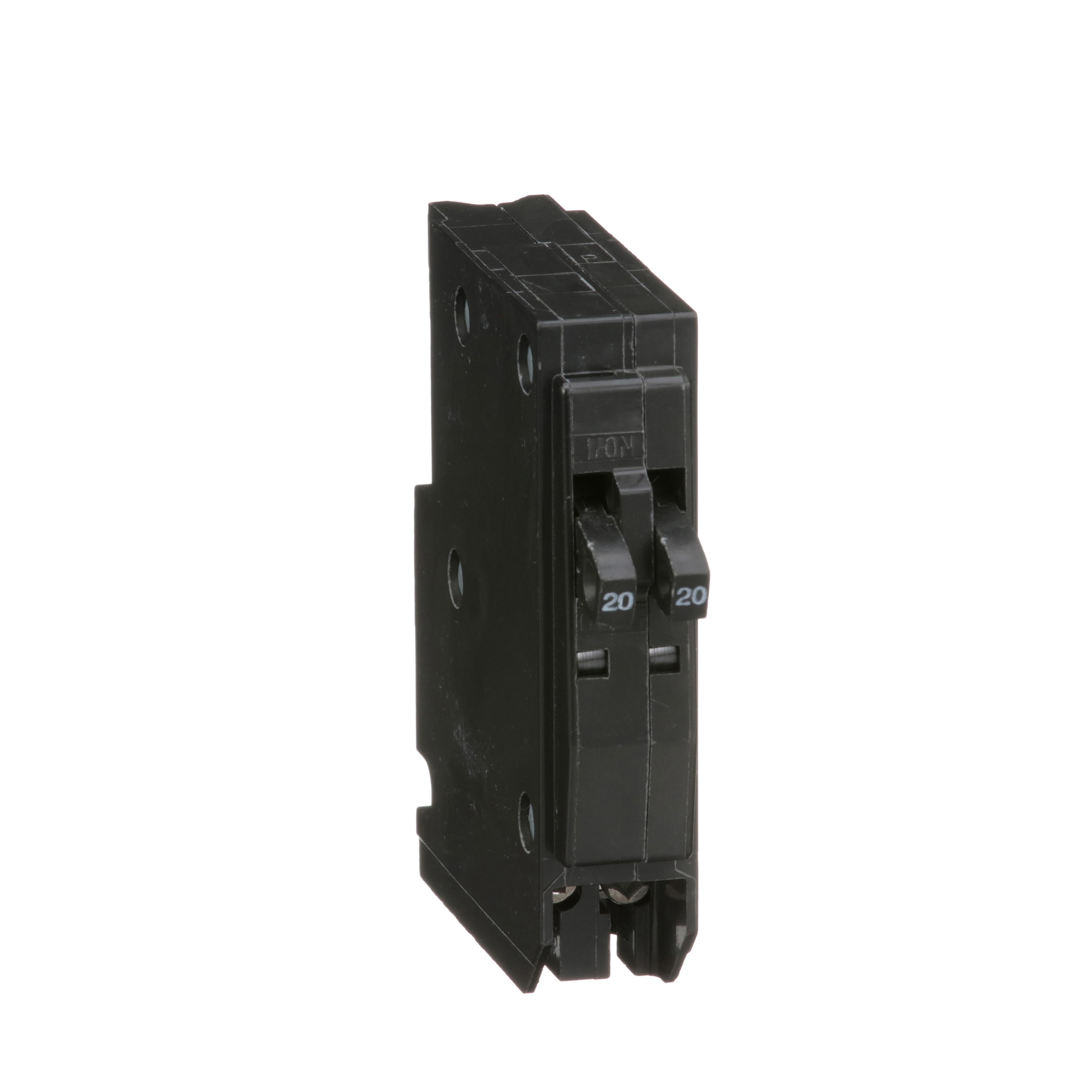

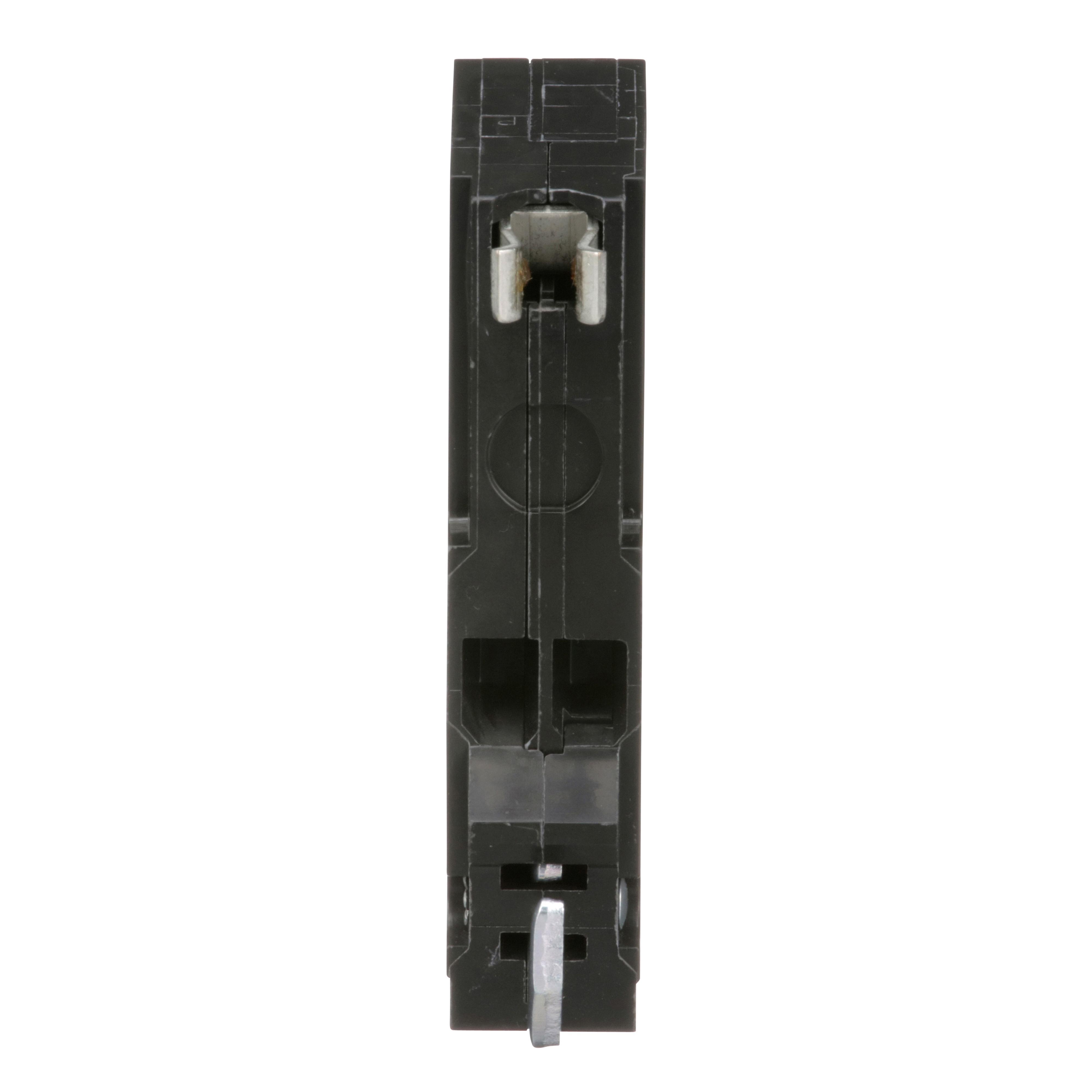

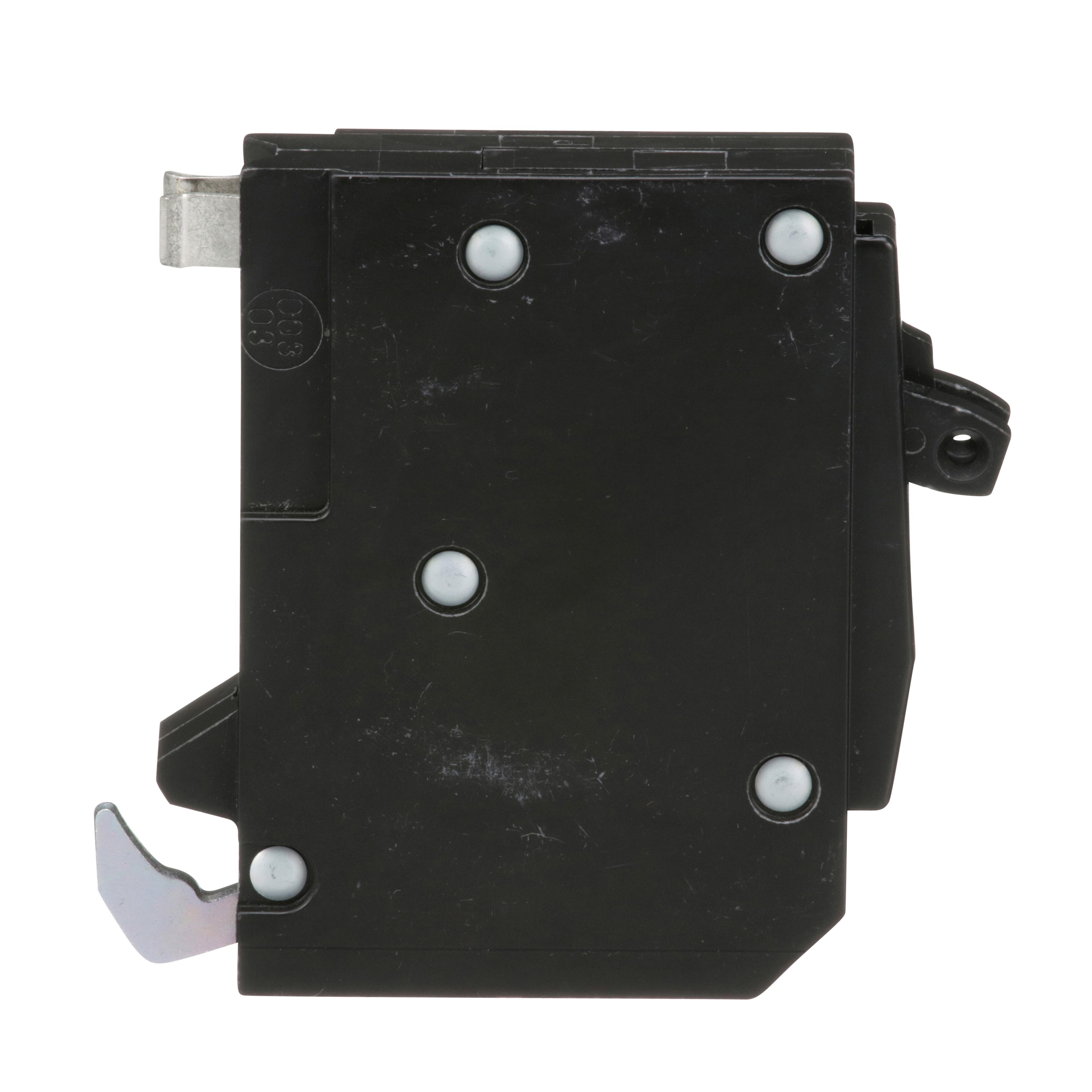

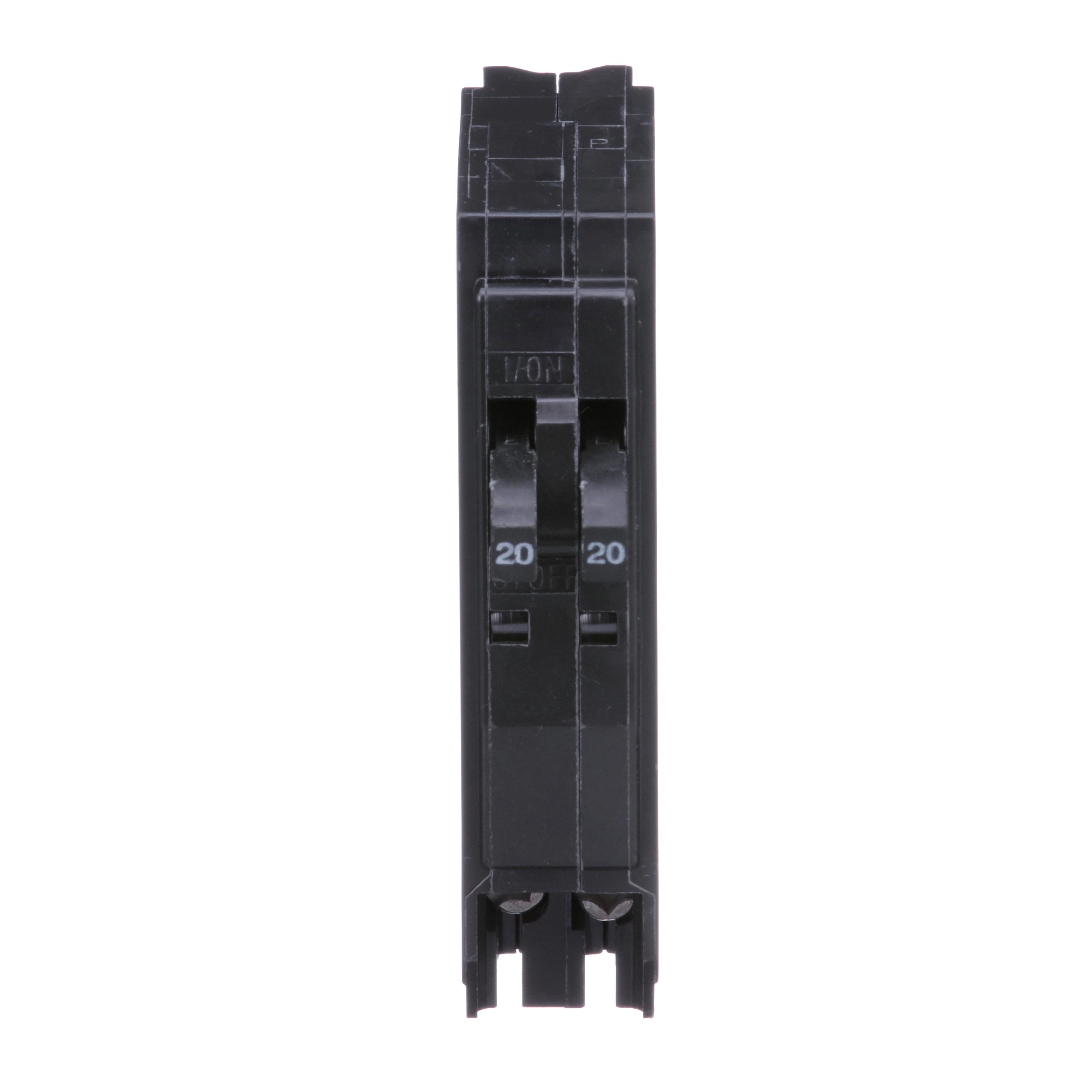

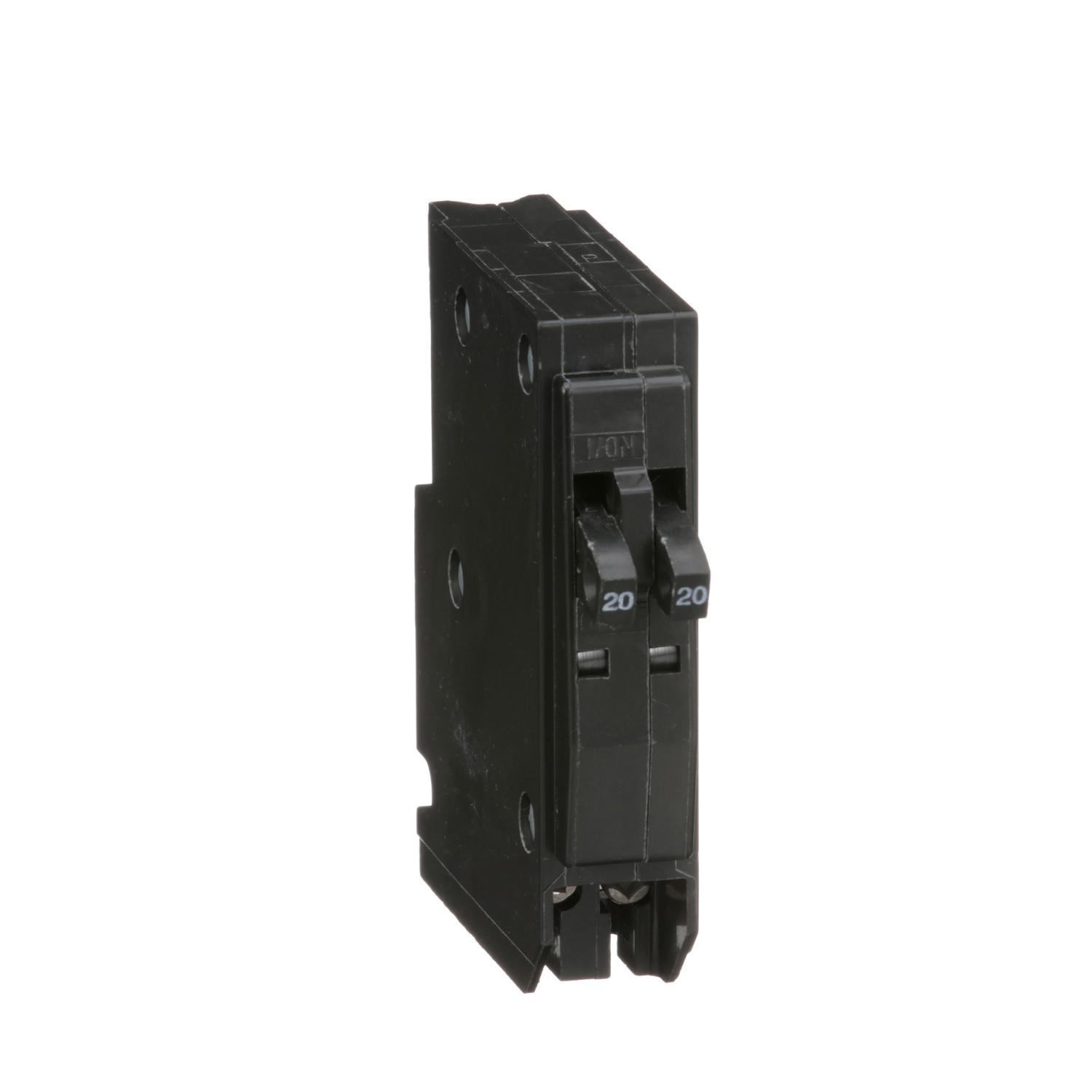

Square D™ QOT2020 Tandem Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This QO tandem mini circuit breaker has 2 one pole at 20A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
-
BrandSquare D™
-
UPC785901418085
-
Manufacturer Part NumberQOT2020
-
CountryUSA|Canada
-
Temperature Rating40 deg C
-
FrameQOT
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
ColorBlack
-
TypeTandem
-
Connection TypePressure Plate
-
Mounting TypePlug-In
-
Actuator TypeToggle
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size12 to 8 AWG, 14 to 8 AWG
-
Number of Poles1
-
Dimensions2.91 in L x 0.75 in W x 3.22 in H
-
Interrupt Rating10 kA
-
Phase1
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
- 12 to 8 AWG aluminum, 14 to 8 AWG copper
- Tandem
- K curve tip
-
Alternative Part Number8042295
-
UNSPSC39121603
-
IDEA Index ID8042295
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL Listed
-
Warranty18 months
-
RoHS
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
