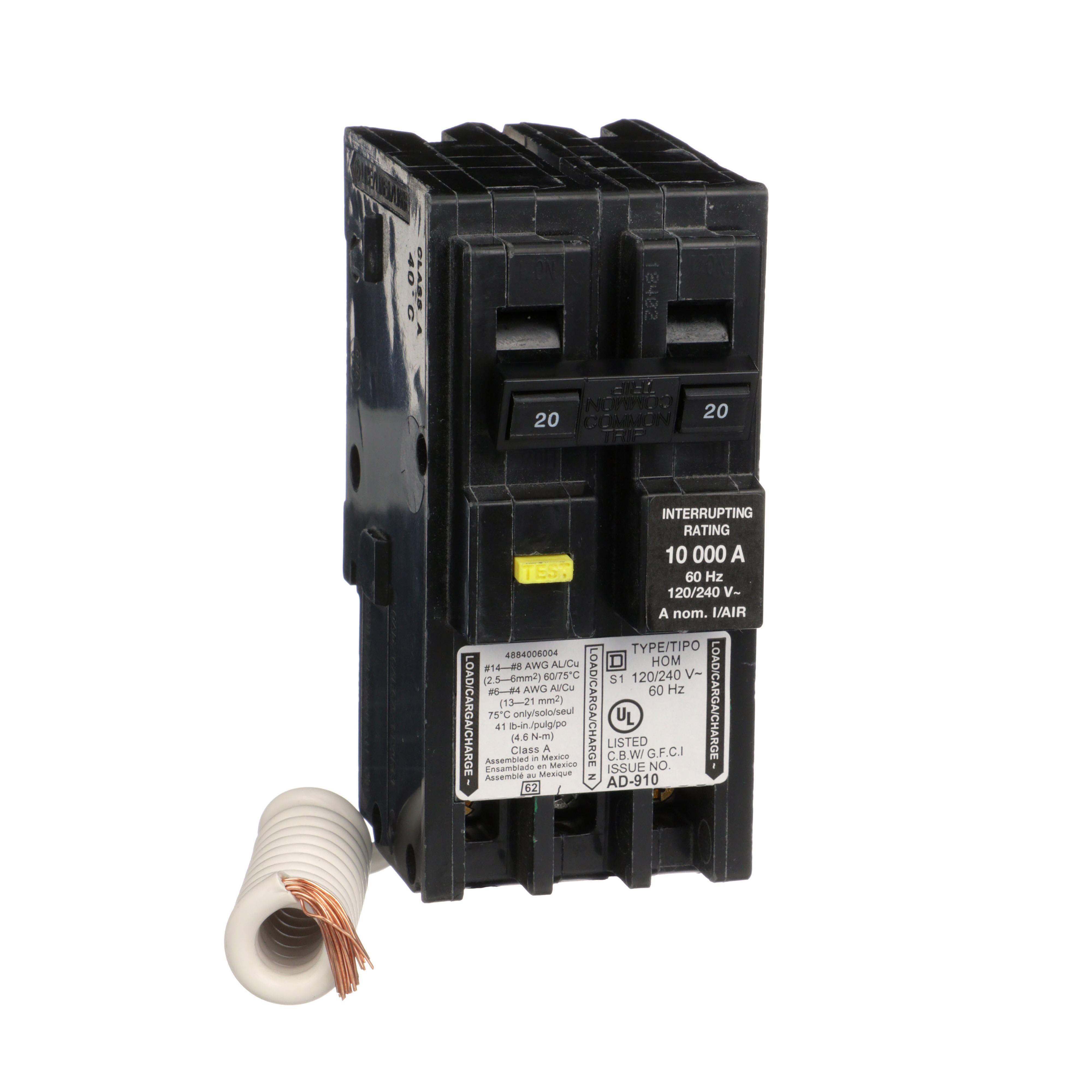

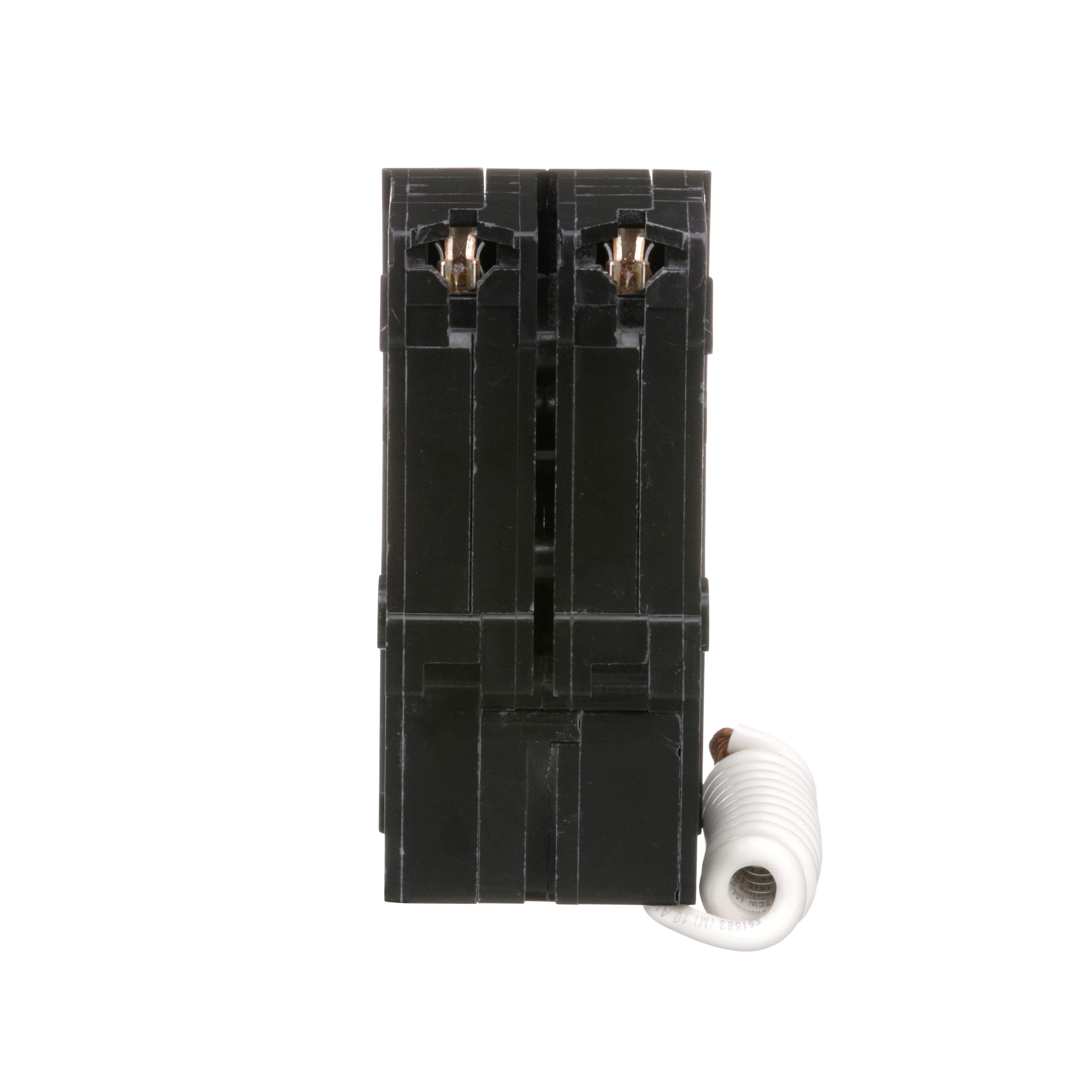

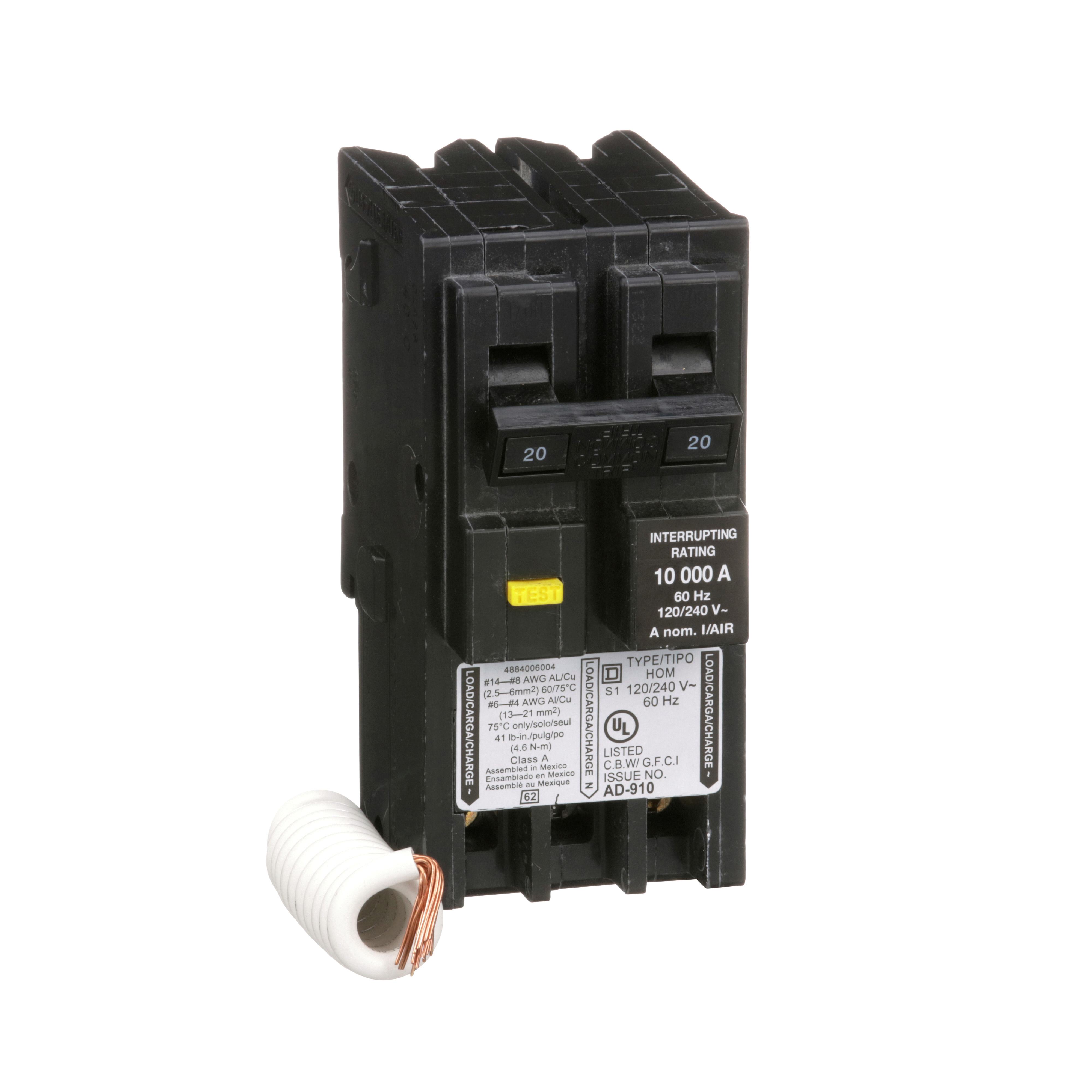

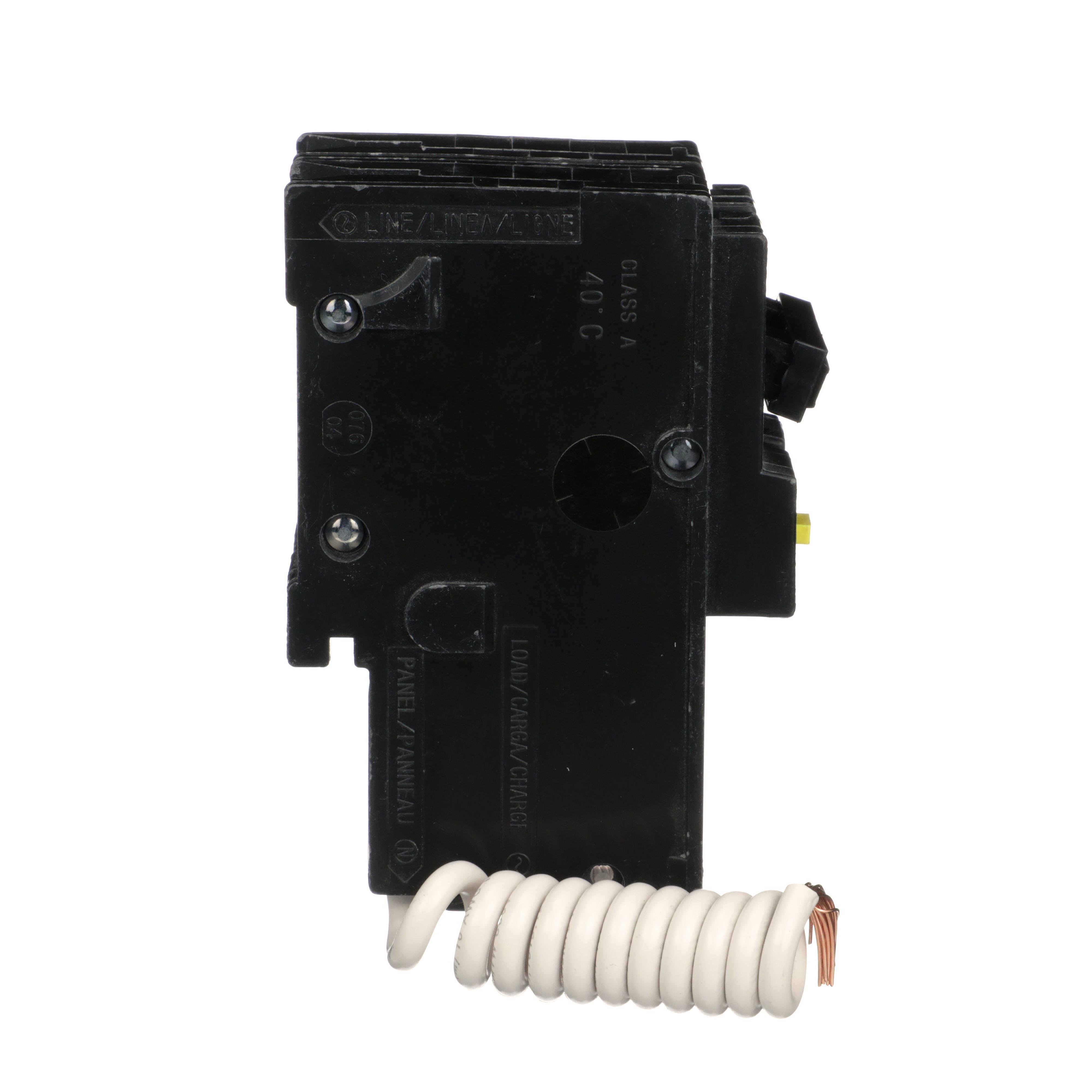

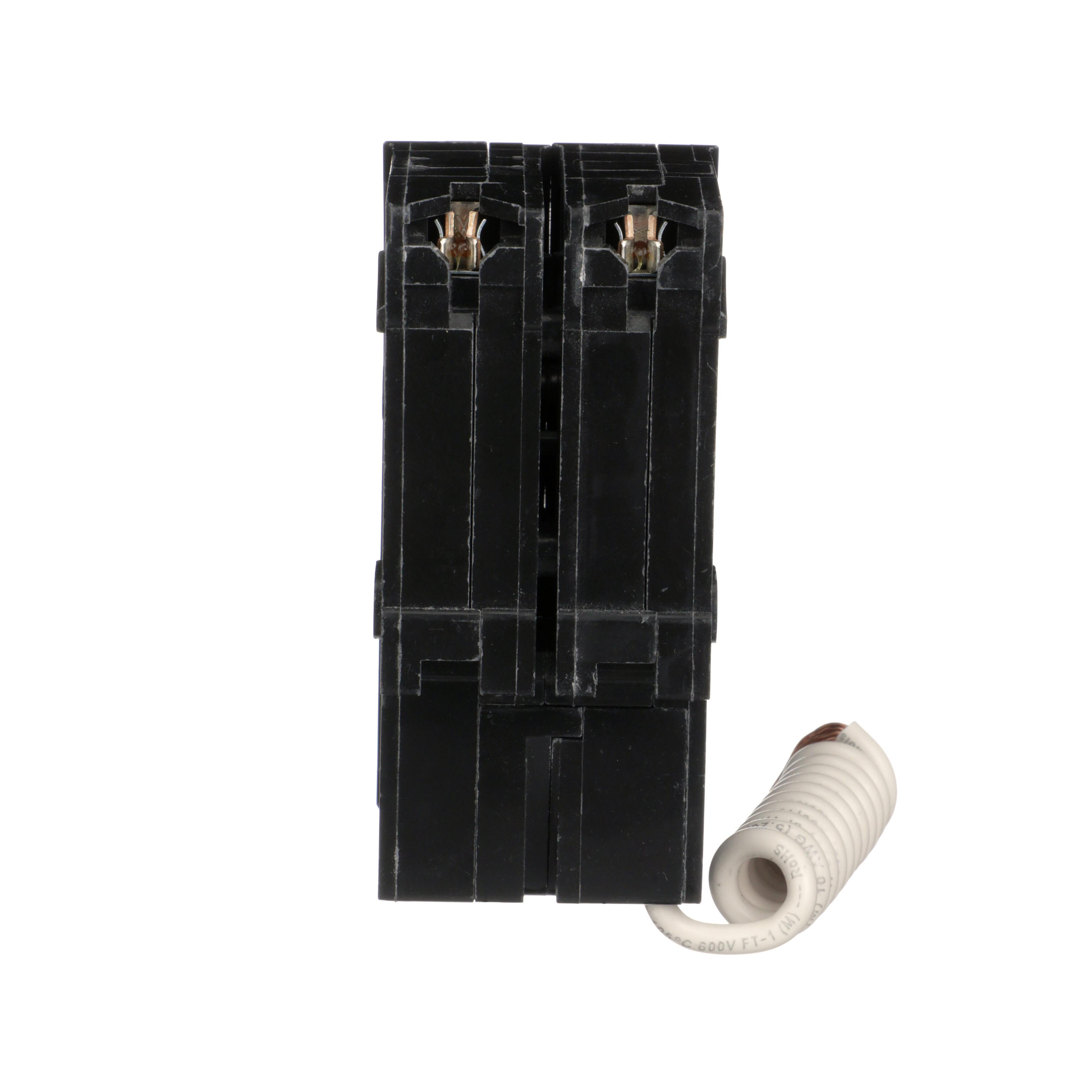

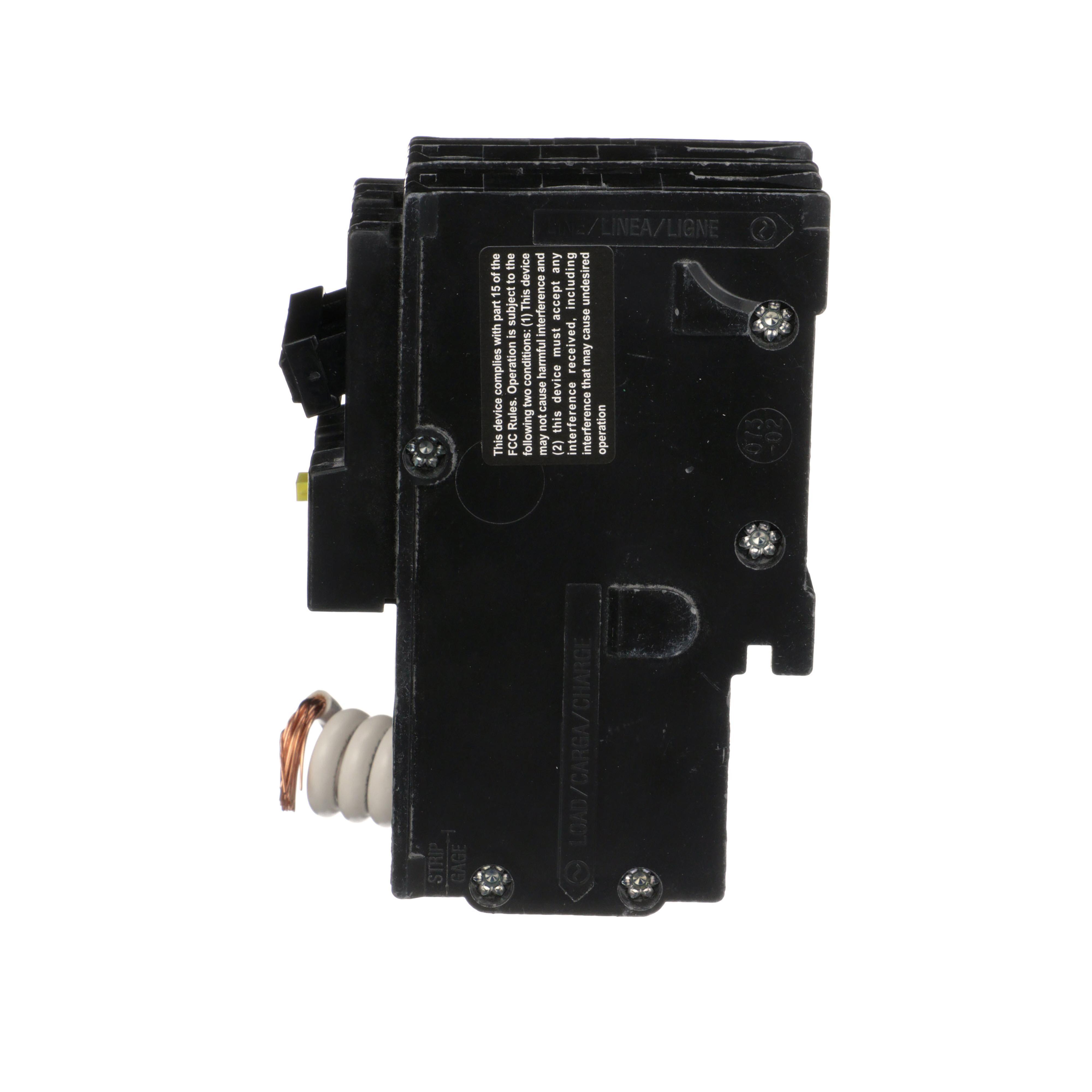

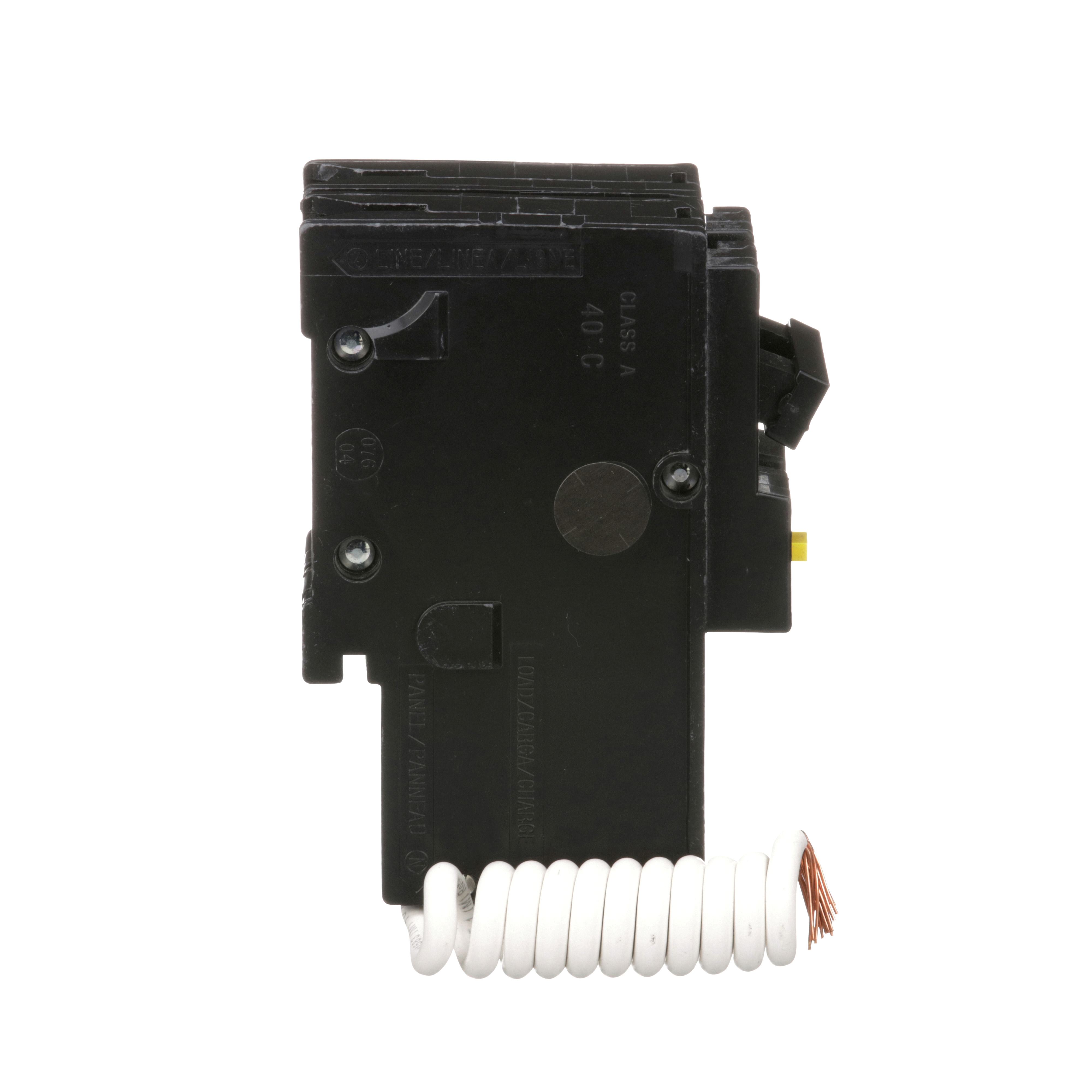

Square D™ HOM220GFIC Type HOM Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Poles
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. This circuit breaker is consumer packaged.
-
BrandSquare D™
-
UPC785901163701
-
Manufacturer Part NumberHOM220GFIC
-
CountryUSA
-
Temperature Rating40 deg C
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeType HOM
-
Connection TypeScrew Clamp
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
SeriesHOM
-
Wire Size12 to 4 AWG Al, 14 to 6 AWG Cu
-
Number of Poles2
-
Dimensions2 in W x 2.98 in D x 3.13 in H
-
Interrupt Rating10 kA
-
Phase1
- Homeline GFCI MCB are designed to protect against irregular electrical current
- Compatible with Homeline electrical panel and CSEDs
- Protects against overload, short curcuits, and ground faults with a current greater than 6mA
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- HOM-GFI circuit breakers provide overload and short circuit protection, combined with class a ground fault protection
- Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 mA or more
- Ground fault protecting class A 6 mA
- Al/Cu wire
-
Alternative Part Number13832860
-
UNSPSC39121603
-
IDEA Index ID13832860
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|HACR Rated|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
WarrantyLimited
-
