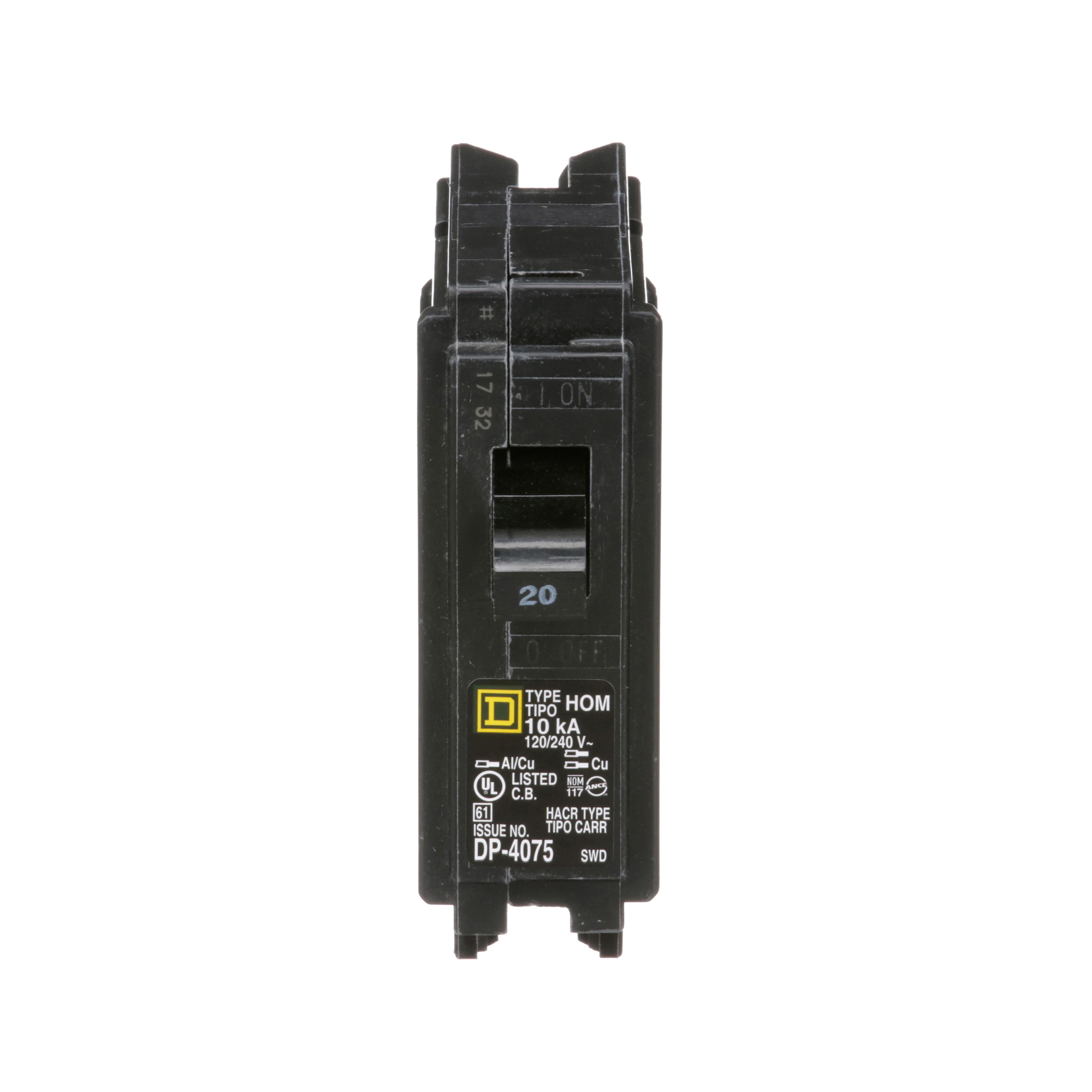

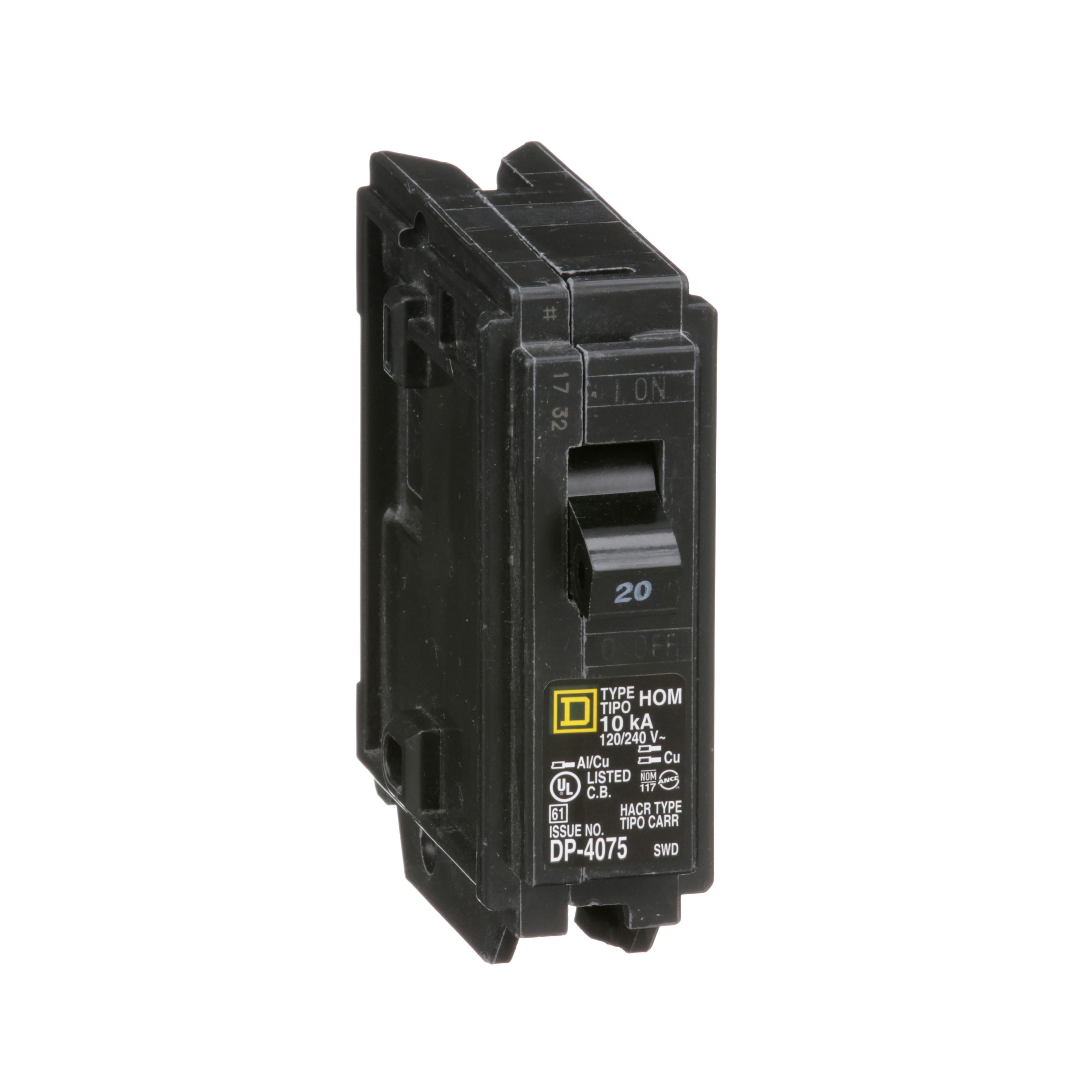

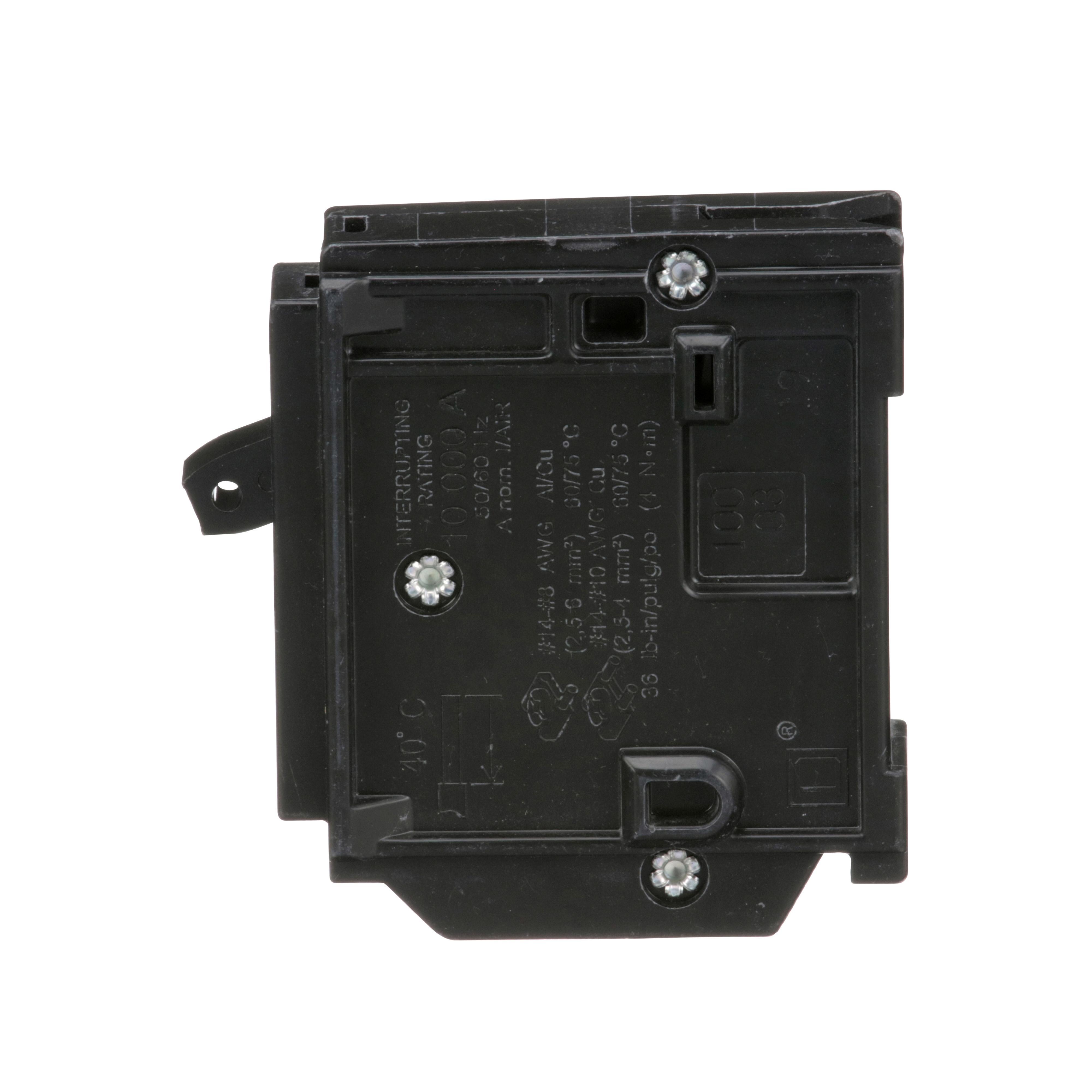

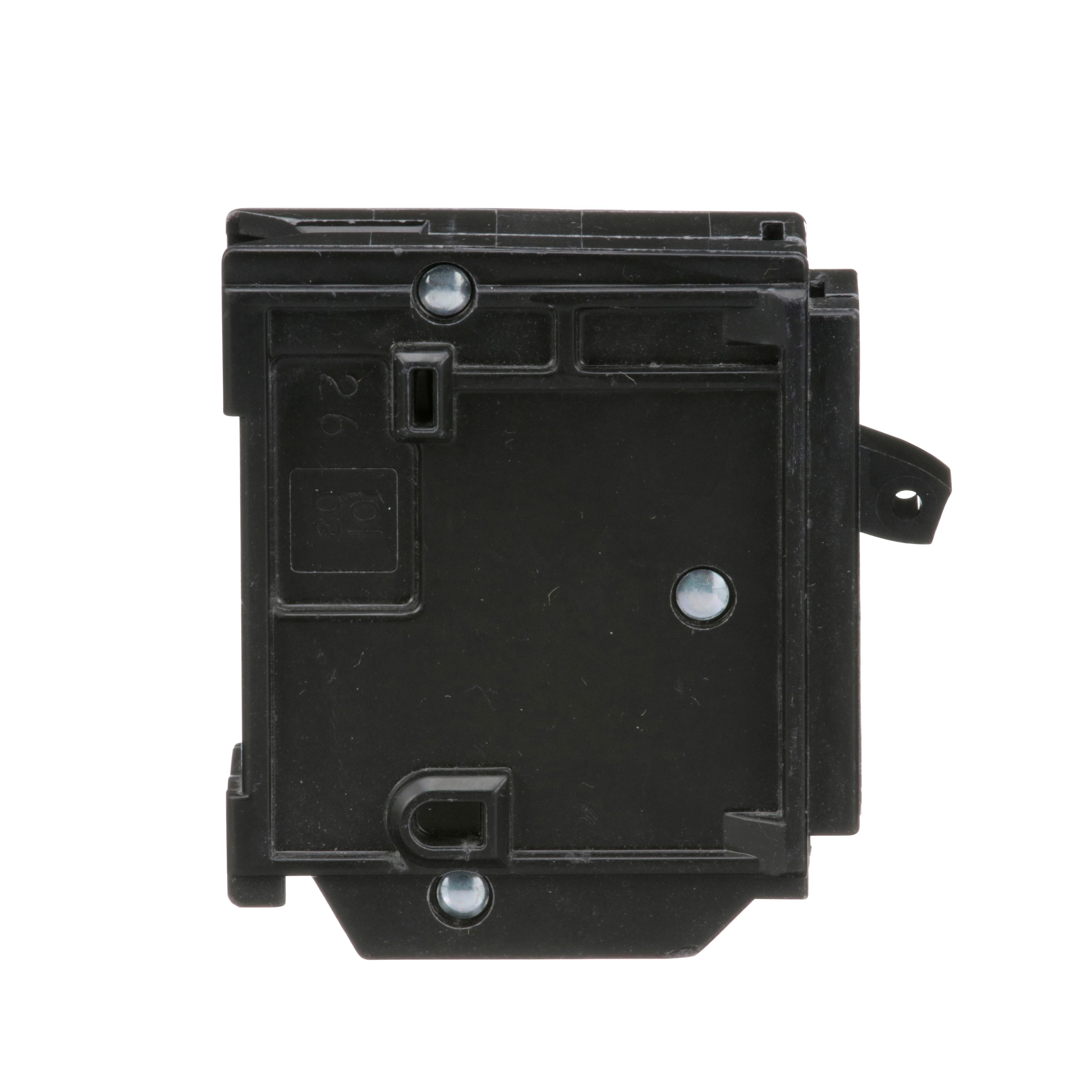

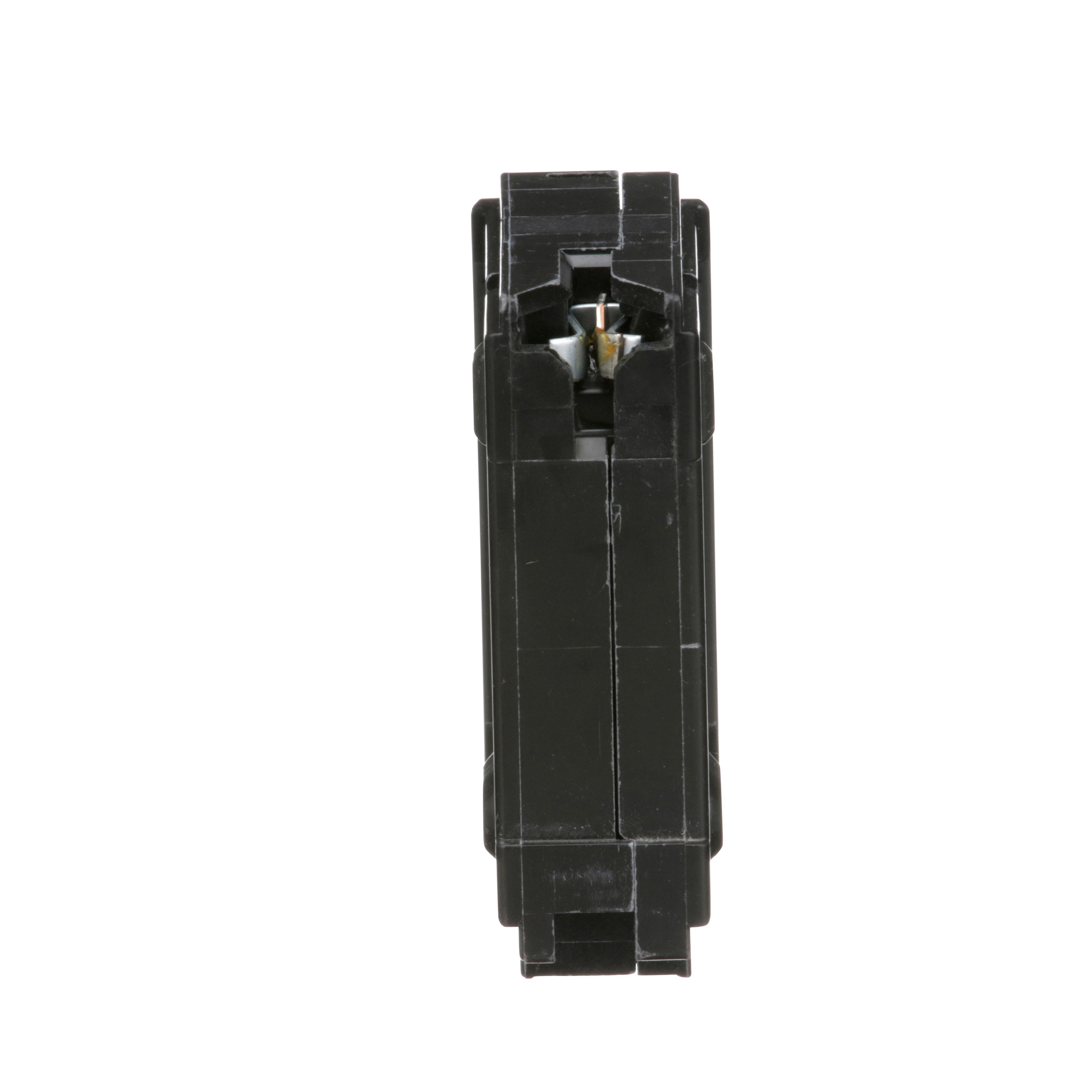

Square D™ Homeline™ HOM120 Standard Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

0 Ratings
$11.78
In Stock
SKU: SQUHOM120
GTIN (EAN,ISBN): 00785901065210
noimage_new

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 7
HCI of Humboldt: 8
HCI of Union City: 25
HCI of Gallatin: 8
My Wishlist
Compare
Main specs
  • Brand
    Square D™
  • UPC
    785901065210
  • Manufacturer Part Number
    HOM120
  • Country
    USA
Specification
  • Temperature Rating
    40 deg C
  • Frequency Rating
    50/60 Hz
  • Trip Type
    Thermal Magnetic
  • Type
    Standard
  • Connection Type
    Screw
  • Mounting Type
    Plug-In
  • Voltage Rating
    120/240 V AC
  • Amperage Rating
    20 A
  • Wire Size
    14 to 8 AWG
  • Number of Poles
    1
  • Dimensions
    2.98 in L x 1 in W x 3.13 in H
  • Interrupt Rating
    10 kA
  • Phase
    1
Features
  • Easy plug on design with SE Homeline Loadcenters
  • Multiple applications Homeline™ circuit breakers offer a full range of amperage, poles and advanced function devices that offer superior arc fault, combination arc fault (CAFI) and ground fault (Class A, GFCI) and dual function (CAFI and GFCI) protection
  • Faster installations fewer connections
  • Saves wire fully distributed split neutral bar
  • Frees gutter space no pigtails
  • Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
  • Faster and easier wiring, all spaces accept tandems
  • For heating, air conditioning and refrigeration
  • 14 to 8 AWG Al/Cu wire
  • Switching duty rated
  • Screw clamp terminal connections
Competitor Information
Competitor Name Competitor Part Number
Grainger 1D342
Additional Information
  • Alternative Part Number
    8001674
  • UNSPSC
    39121603
  • IDEA Index ID
    8001674
  • Package Description
    EACH
  • Standards/Approvals
    RoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
  • Warranty
    Lifetime
