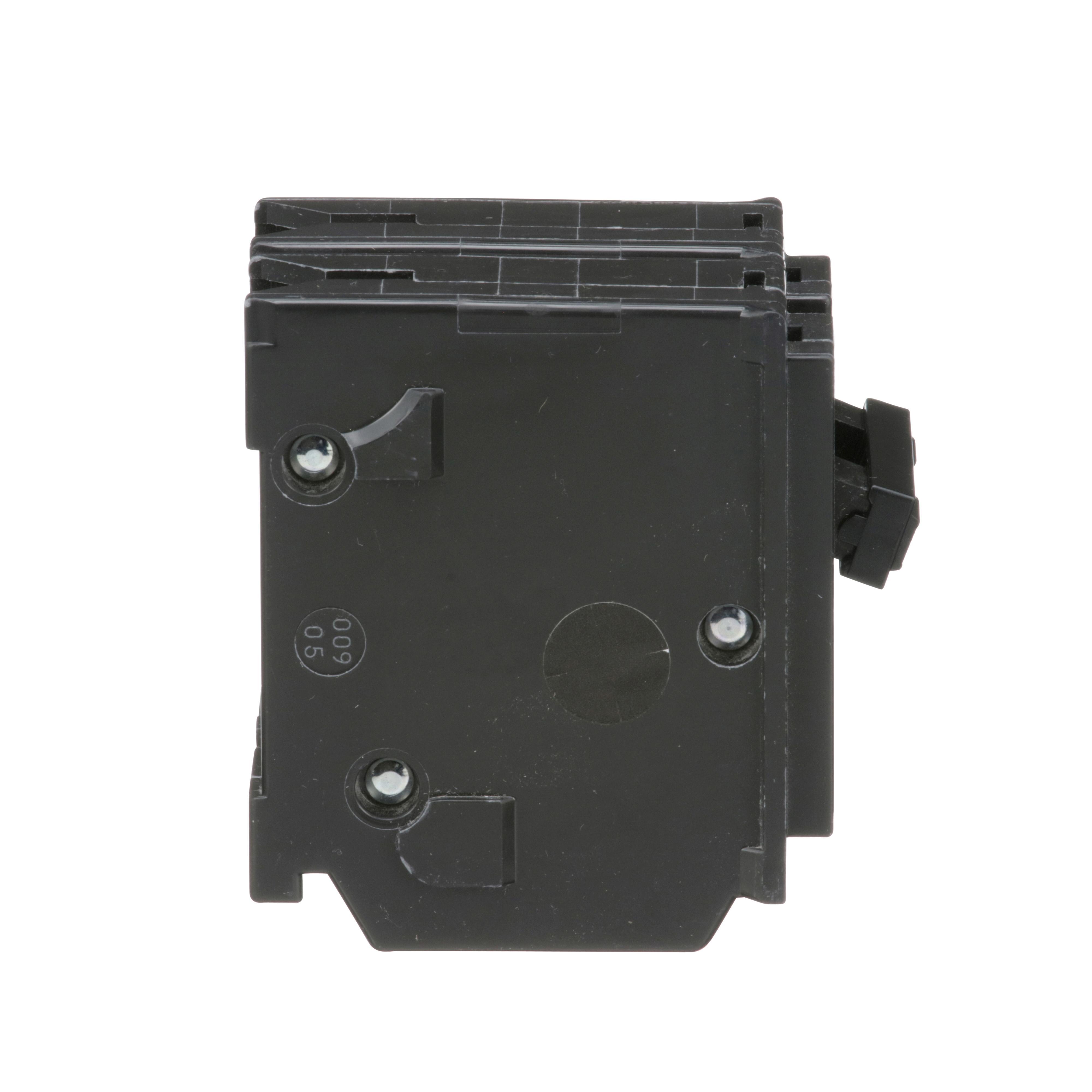

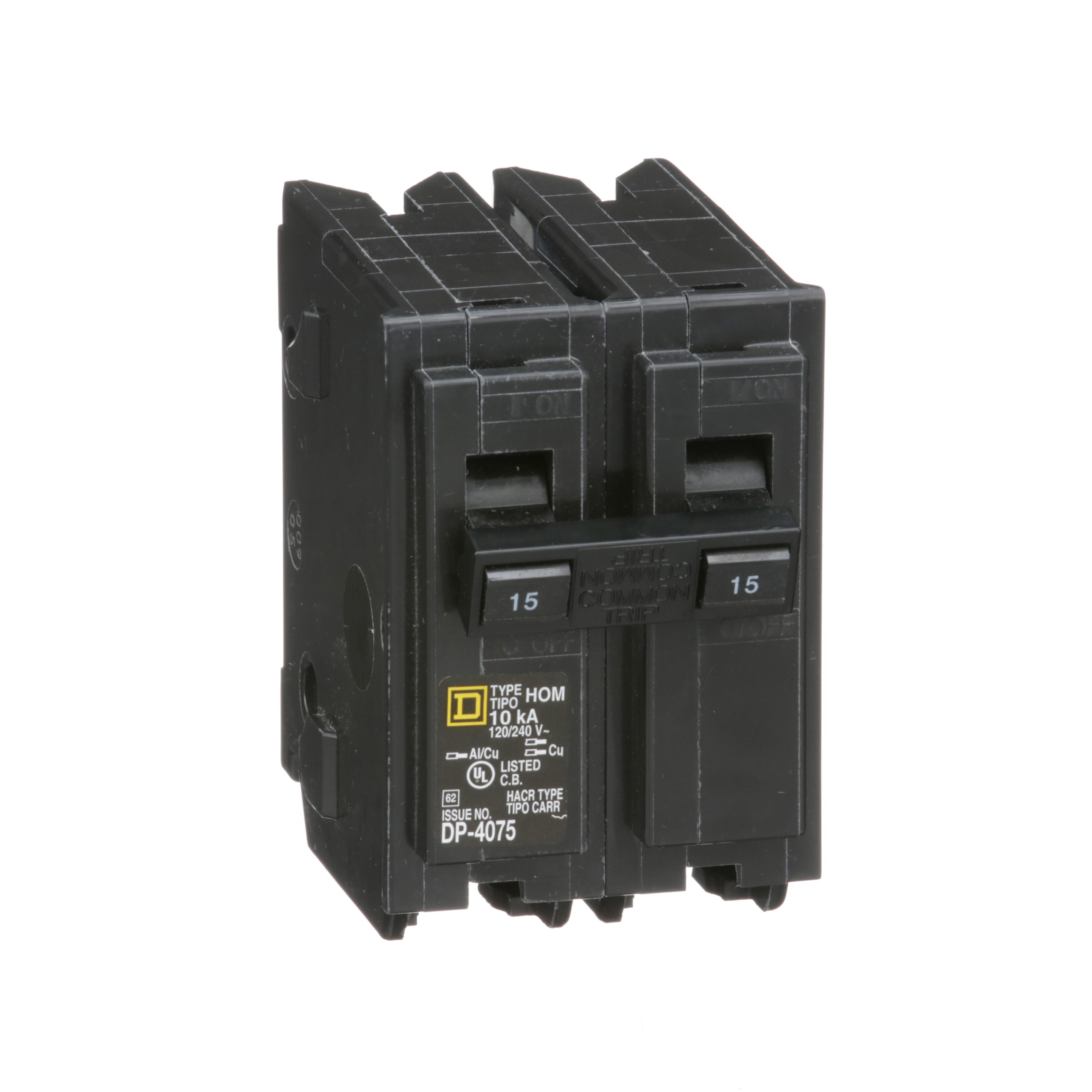

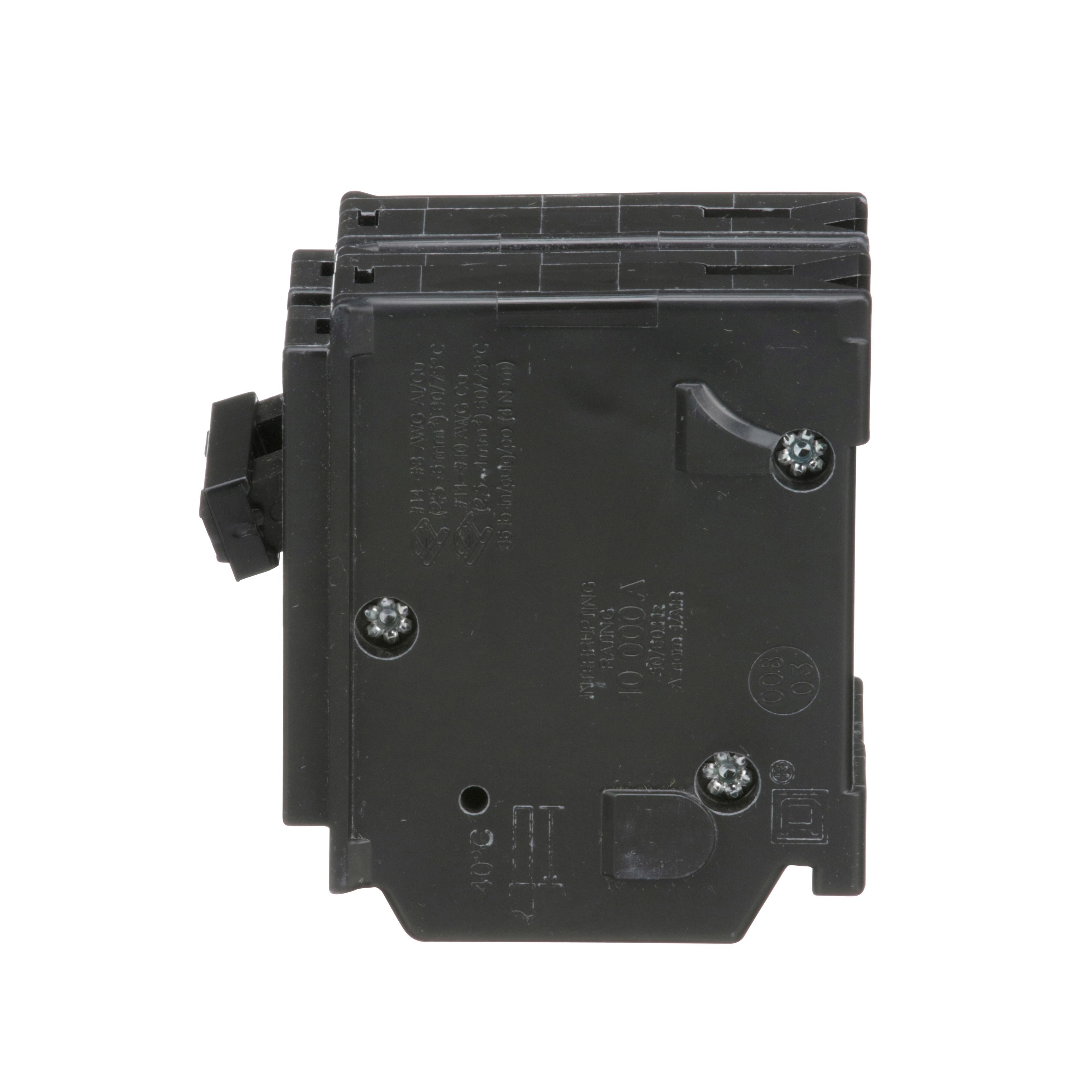

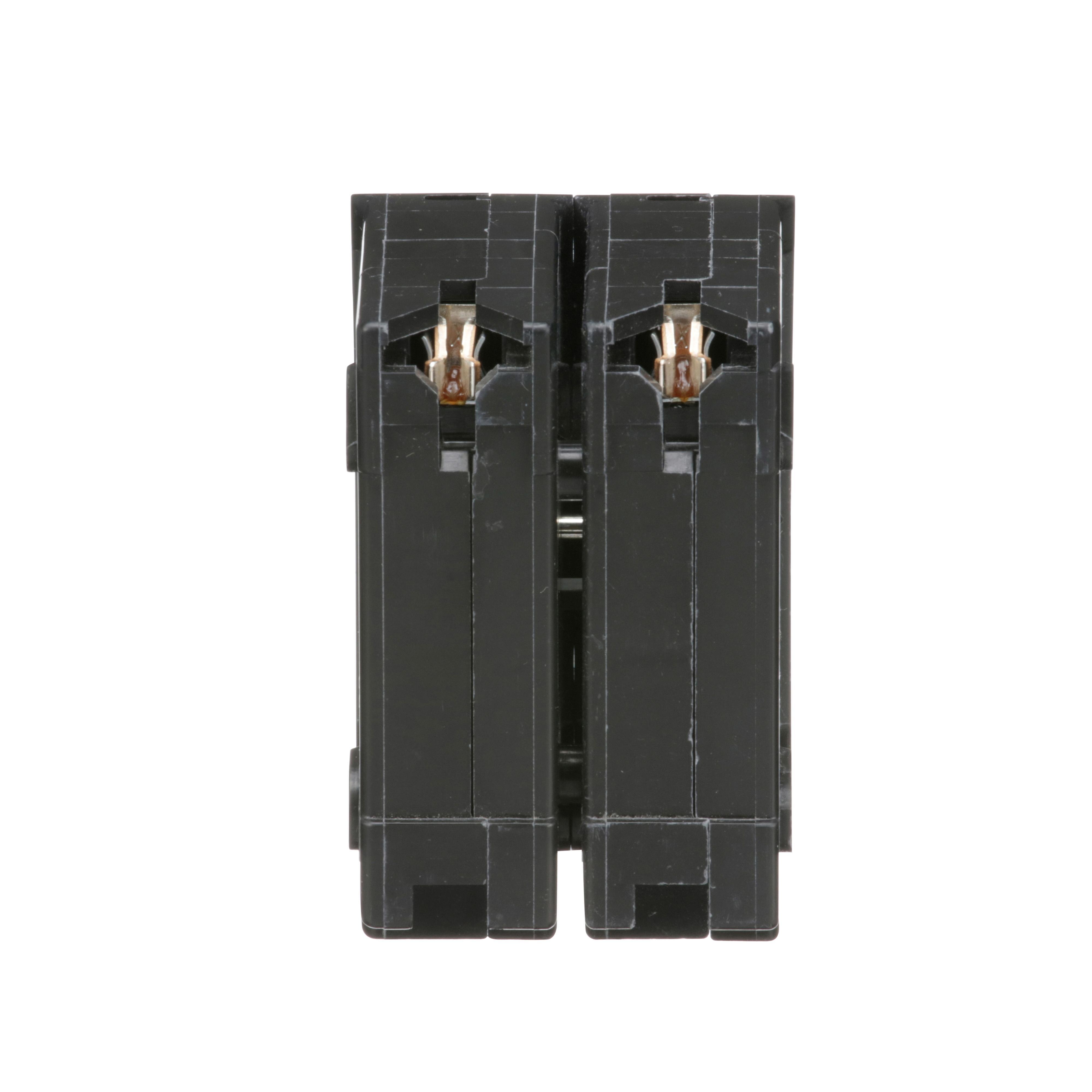

Square D™ Homeline™ HOM215 Standard Miniature Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare D™
-
UPC785901065265
-
Manufacturer Part NumberHOM215
-
CountryUSA
-
Temperature Rating104 deg F
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeStandard
-
Connection TypeTerminal Screw
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating15 A
-
Wire Size14 to 8 AWG
-
Number of Poles2
-
Dimensions2.98 in L x 2 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/2
-
Phase1
- Easy plug on design with SE Homeline Loadcenters
- Square D™ offers Homeline™ a wide range of circuit breakers to meet all National Electrical Code® requirements and provide superior electrical safety
- Homeline™ load centers accept plug-on neutral, pigtail, full size and tandem circuit breakers on every space
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Square D™ Homeline™ circuit breakers are in a 1 in wide format for 1-pole circuit breakers
- 14 to 8 AWG Al/Cu wire
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1D350 |
-
Alternative Part Number8001714
-
UNSPSC39121603
-
IDEA Index ID8001714
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL File No. E6294|CSA Certified|HACR Rated|Federal Specification WP115B|NEMA Compliant|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
WarrantyLifetime
-
RoHS
-
Specification Sheet
-
Owners/User Manual
