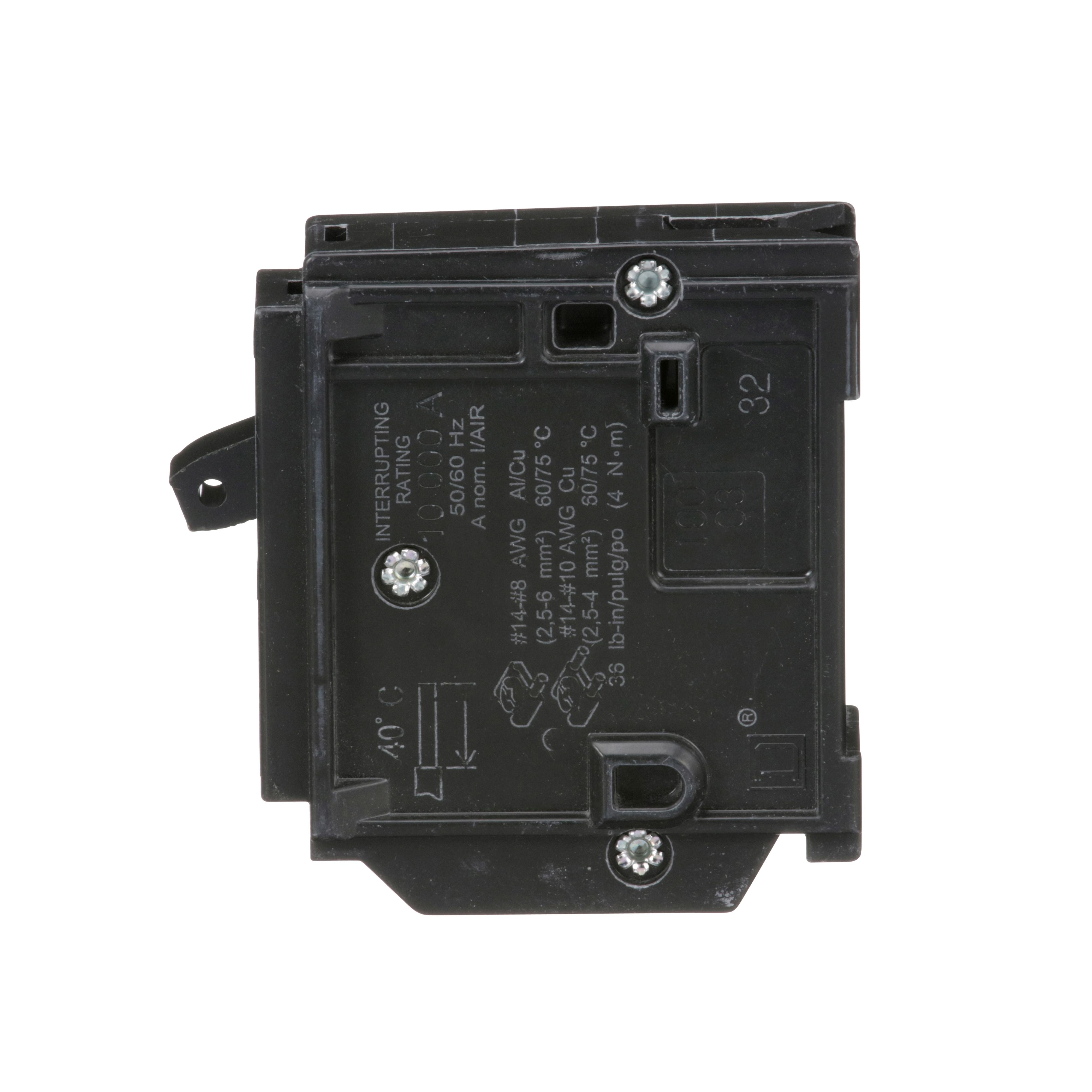

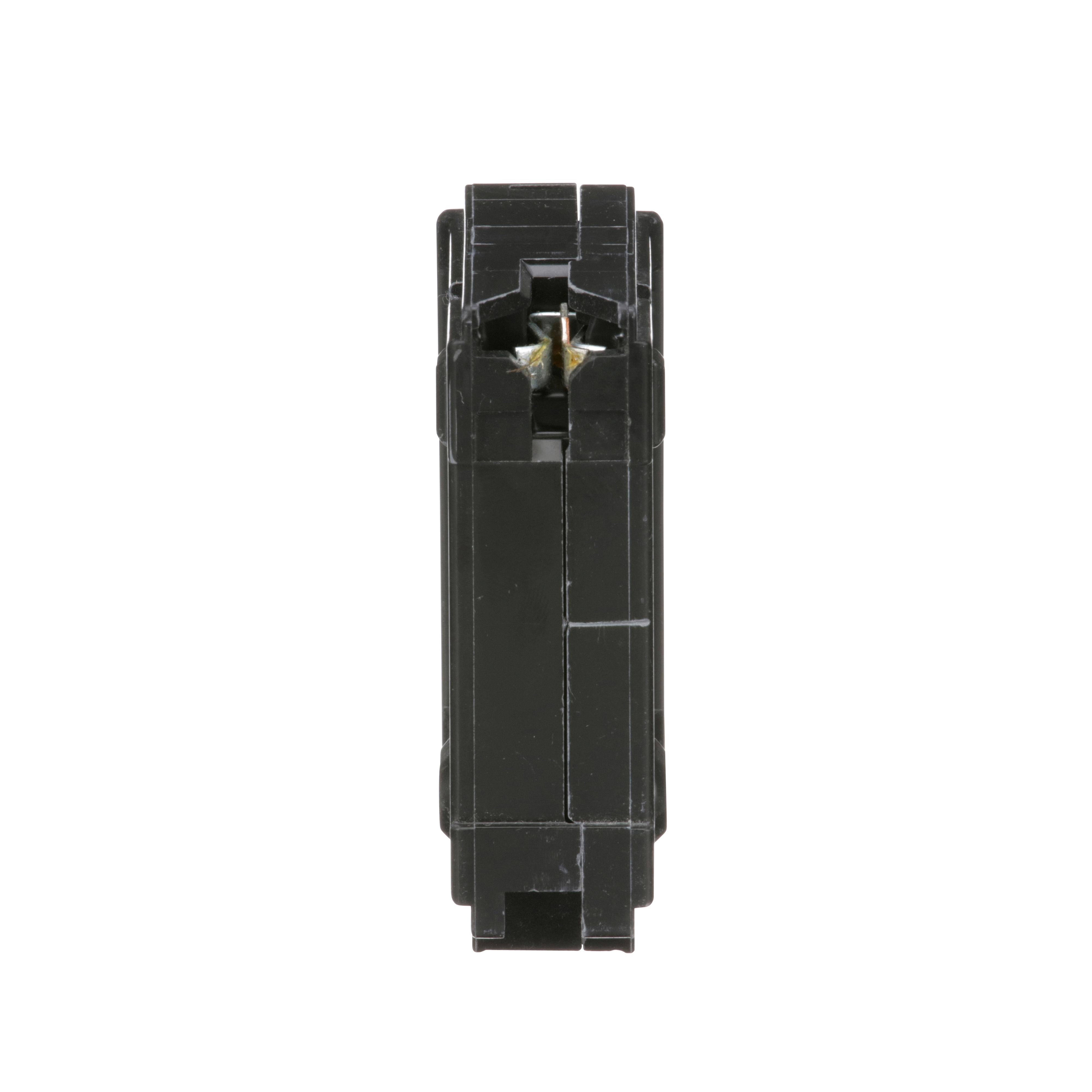

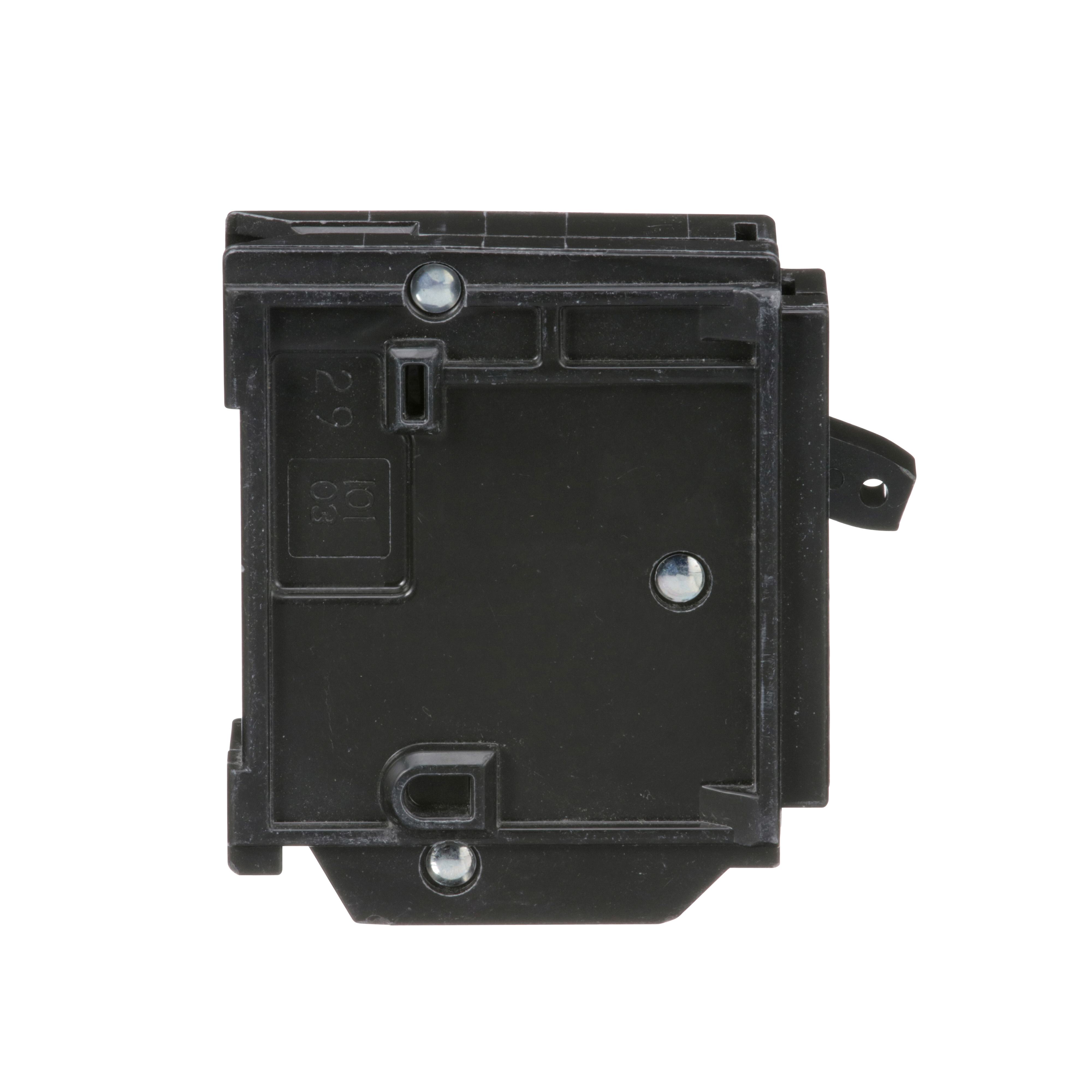

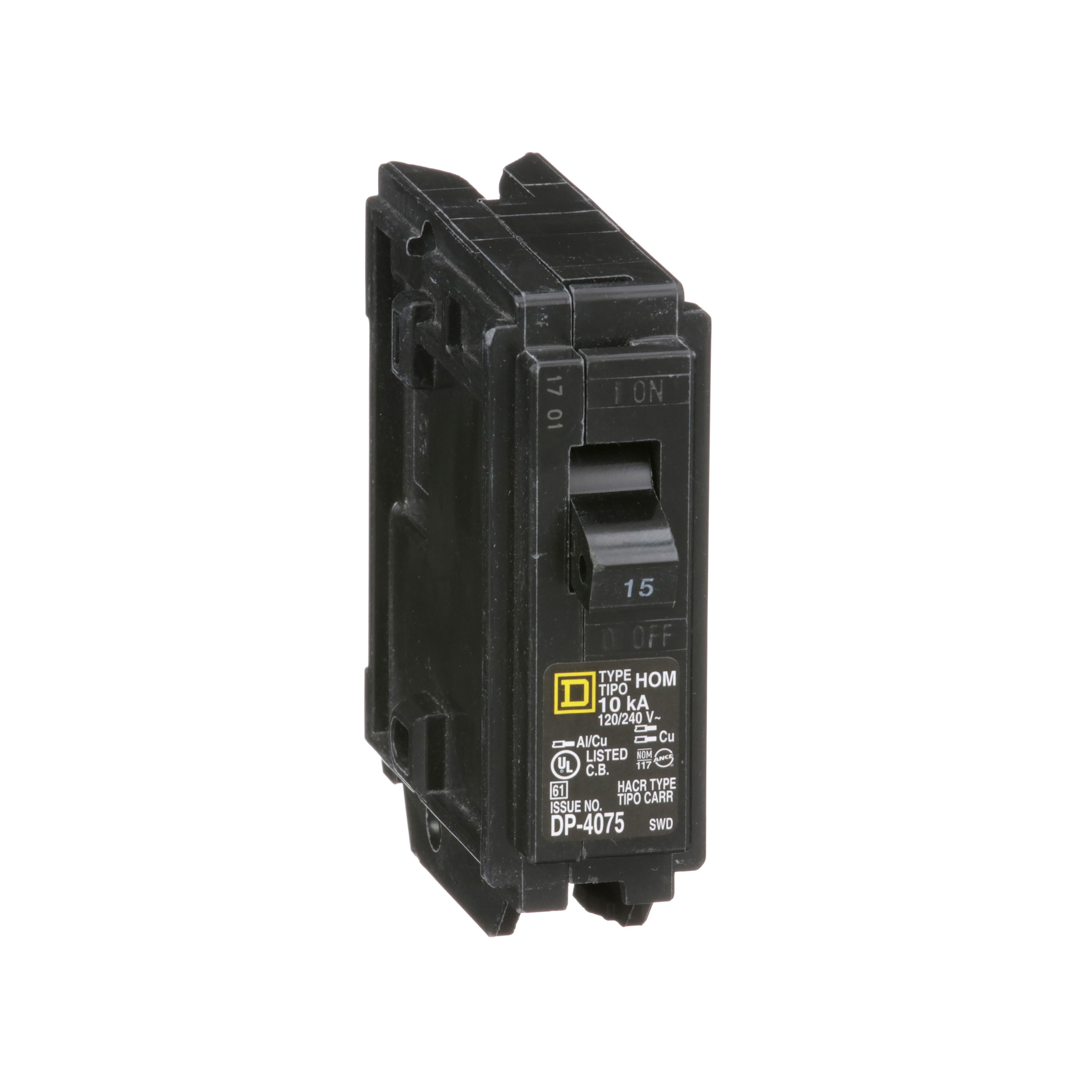

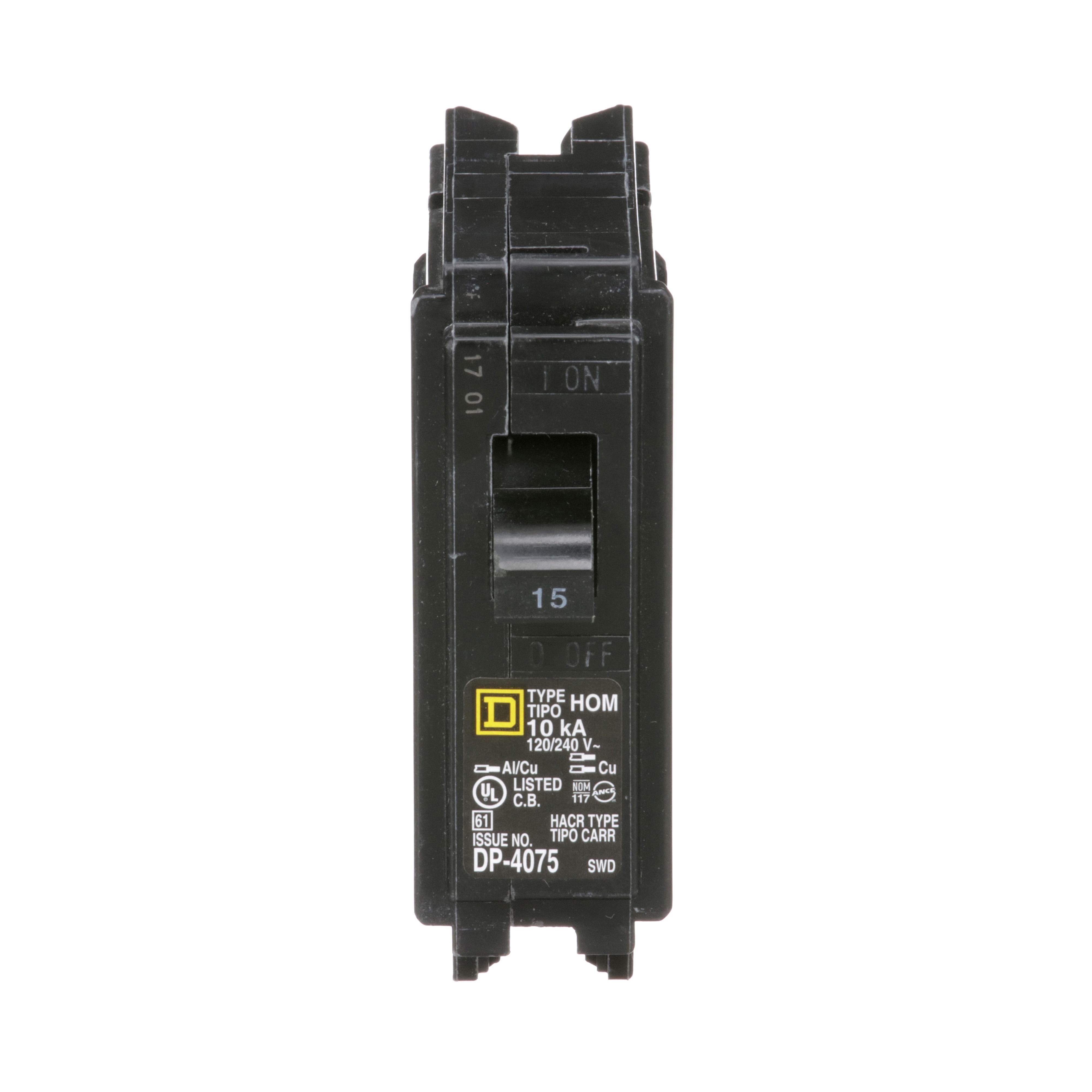

Square D™ Homeline™ HOM115 Standard Miniature Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare D™
-
UPC785901065203
-
Manufacturer Part NumberHOM115
-
CountryUSA
-
Temperature Rating40 deg C
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeStandard
-
Connection TypeScrew
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating15 A
-
Wire Size14 to 8 AWG
-
Number of Poles1
-
Dimensions2.98 in L x 1 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Phase1
- Easy plug on design with SE Homeline Loadcenters
- Multiple applications Homeline™ circuit breakers offer a full range of amperage, poles and advanced function devices that offer superior arc fault, combination arc fault (CAFI) and ground fault (Class A, GFCI) and dual function (CAFI and GFCI) protection
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- For heating, air conditioning and refrigeration
- 14 to 8 AWG Al/Cu wire
- Switching duty rated
- Screw clamp terminal connections
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1D340 |
-
Alternative Part Number8001666
-
UNSPSC39121601
-
IDEA Index ID8001666
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL Listed|CSA Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
WarrantyLifetime
-
RoHS
-
Specification Sheet
-
Owners/User Manual
