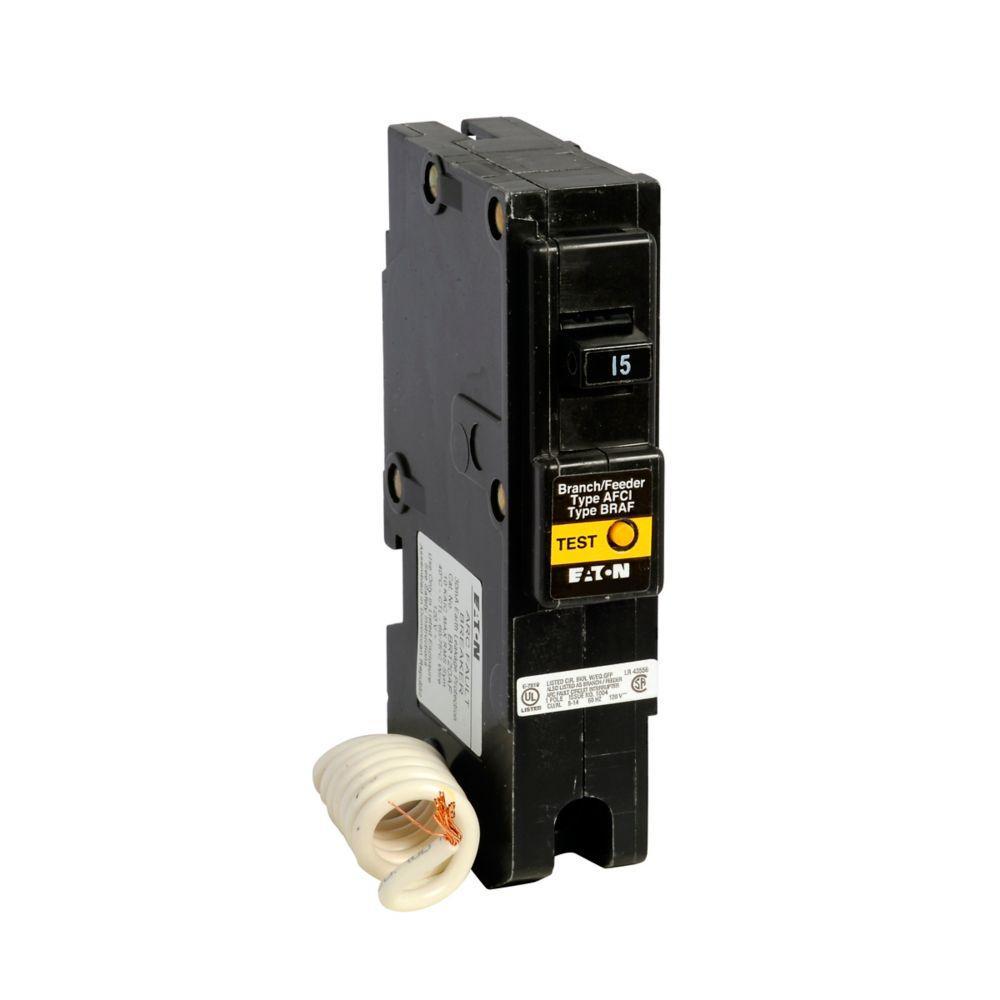

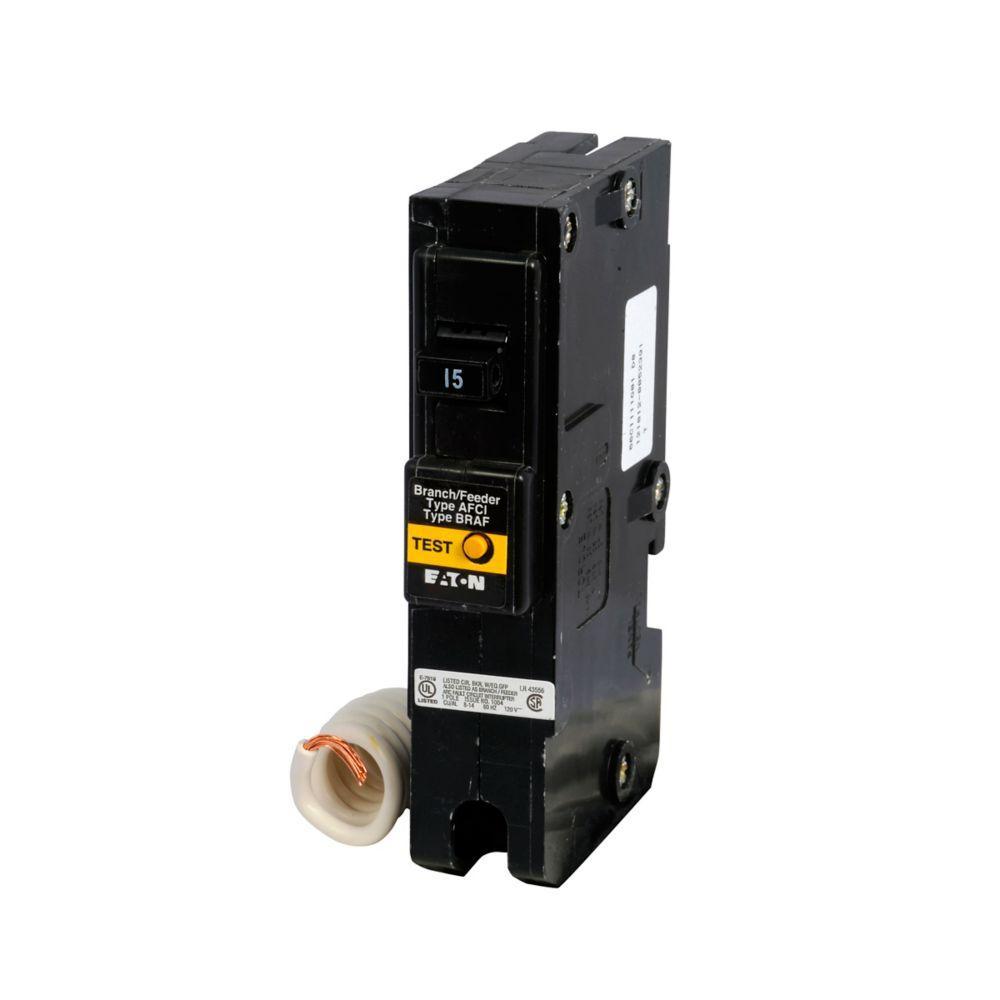

EATON FIRE-GUARD® BR120AF Type BR Arc Fault Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Eaton's residential BR Circuit Breakers are used in load centers, panelboards, or similar devices. They are made for a wide range of applications and include: BR 1" circuit breakers and accessories for BR-style load centers; arc fault circuit interrupters (AFCI); and ground fault circuit interrupters (GFCI).
-
BrandEATON
-
UPC782114231500
-
Manufacturer Part NumberBR120AF
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Connection TypeBox Lug
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 4 AWG
-
Number of Poles1
-
Dimensions3 in L x 4-3/4 in W x 1-1/4 in H
-
Interrupt Rating10 kA
-
Phase1
-
Alternative Part Number7364046
-
UNSPSC39121601
-
IDEA Index ID7364046
-
Package DescriptionEACH
-
Standards/ApprovalsUL 1699|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Catalog
-
Specification Sheet
