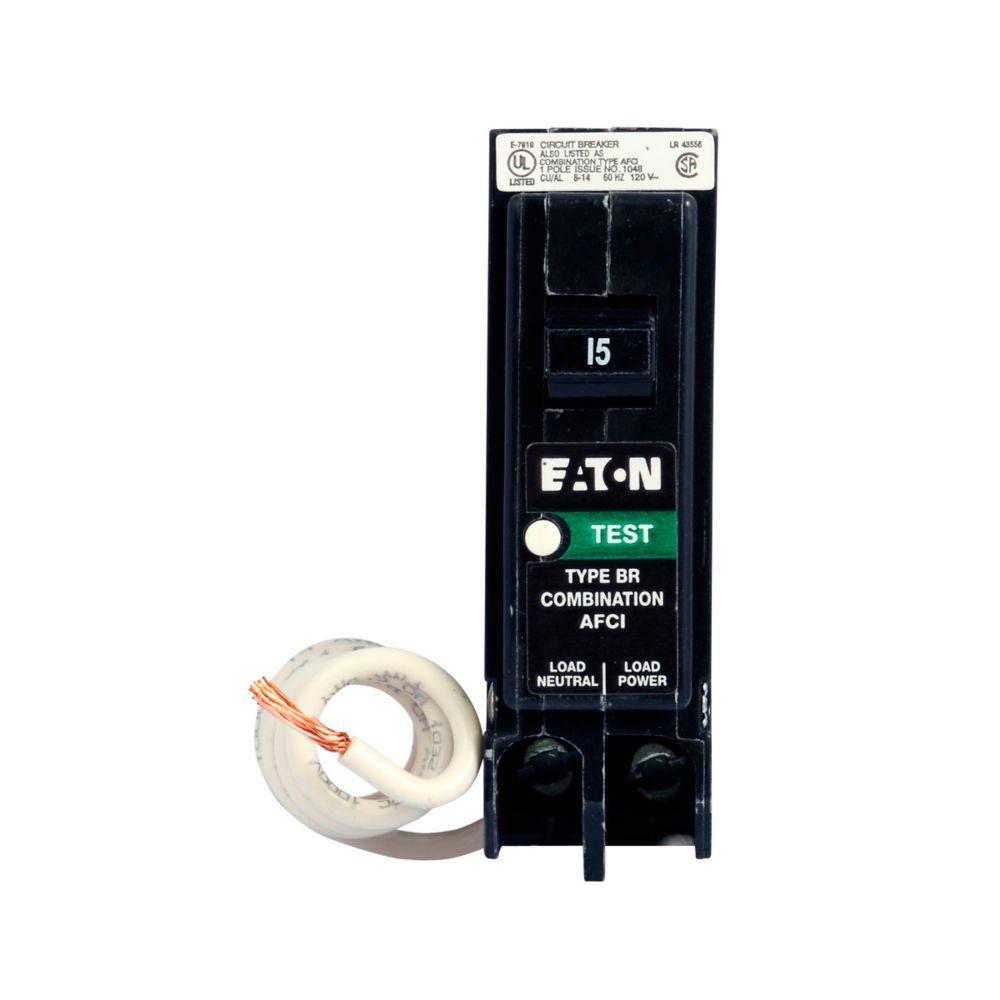

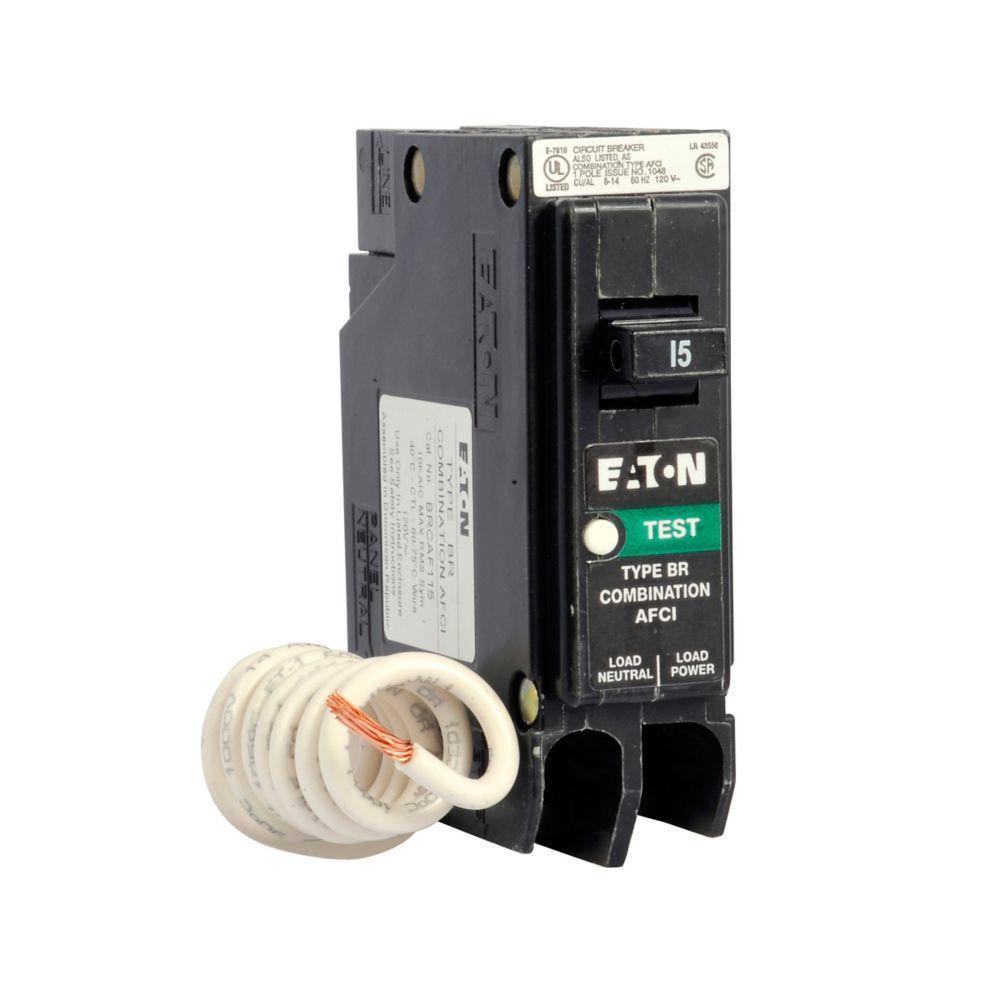

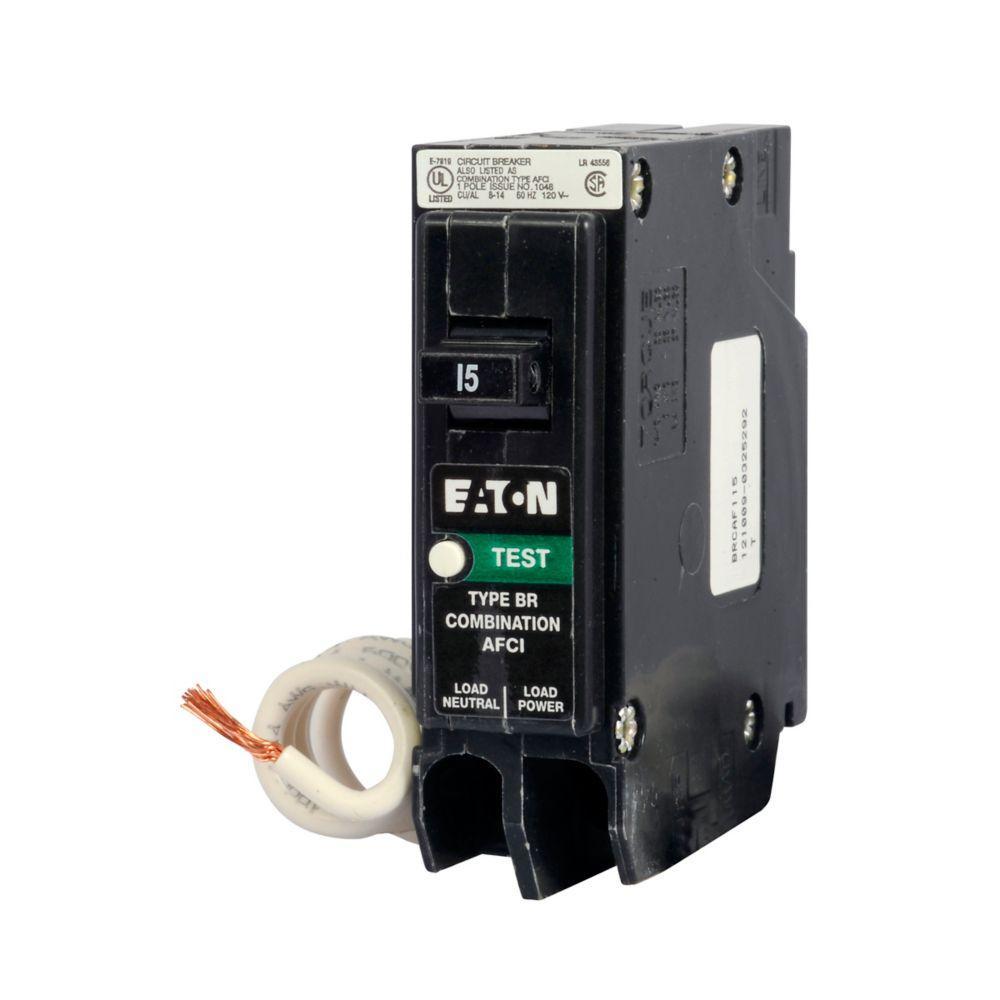

EATON BRCAF120CS Type BR Combination Arc-Fault Circuit Breaker, 120 V AC, 20 A, 10 kAIC Interrupt, 1 Poles, Thermal Magnetic Trip
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786685514376
-
Manufacturer Part NumberBRCAF120CS
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
MaterialThermoset
-
Trip TypeThermal Magnetic
-
TypeType BR Combination
-
Connection TypePigtail
-
Voltage Rating120 V AC
-
Amperage Rating20 A
-
Wire Size14 to 4 AWG Copper/Aluminum
-
Number of Poles1
-
Dimensions6 in L x 3-1/2 in W x 1-1/4 in H
-
Interrupt Rating10 kAIC
- 14 to 4 AWG copper aluminum at 60 to 75 deg C wire range
- Eaton volume 1 residential and light commercial
- Clamshell pack
-
Alternative Part Number11702417
-
UNSPSC39121603
-
IDEA Index ID11702417
-
Package DescriptionEACH
-
Standards/ApprovalsUL 1699,Federal Specifications Classification W-C375
-
WarrantyLimited Lifetime
-
Specification Sheet
-
Owners/User Manual
