MORSE C/Tool 3/4" SE CARBIDE ENDMILLS MCT 59035

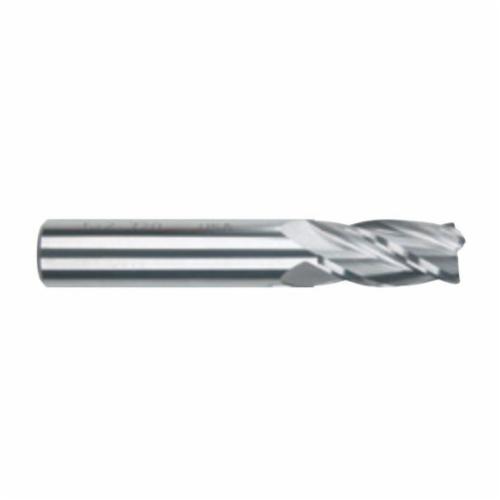

MORSE® 59035 5968 Center Cutting High Performance Regular Length Single End End Mill, 3/4 in Dia Cutter, 0.06 in Corner Radius, 1-1/2 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 4 in OAL, Bright
-
BrandMORSE®
-
UPC686125590352
-
Manufacturer Part Number59035
-
CountryUSA
-
FinishBright
-
MaterialMicrograin Solid Carbide
-
Flute TypeSpiral
-
TypeCenter Cutting High Performance Regular Length Single End
-
Corner Radius0.06 in
-
Helix Angle30 deg
-
Series5968
-
Cutter Diameter3/4 in
-
Shank Diameter3/4 in
-
Number of Flutes4
-
Cutting DirectionRight Hand
-
Shank TypePlain/Round
-
Length of Cut1-1/2 in
-
Overall Length4 in
- Corner radius strengthens the end mill corners to minimize chipping especially in tough milling applications
- Corner radius also used when the finished part requires a radius
- These end mills with a greater core thickness offer increased tool strength and reduced tool defection
- 4-flute also reduce chip load per tooth for the milling of tougher materials, greater wear resistance and improved surface finish
- Solid carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance and heat resistance and long tool life
- Tool coatings further enhance milling performance
-
UNSPSC27112803
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
-
