Hougen 3/4" ROTALOC 1" DOC CUTTER HOU 17824

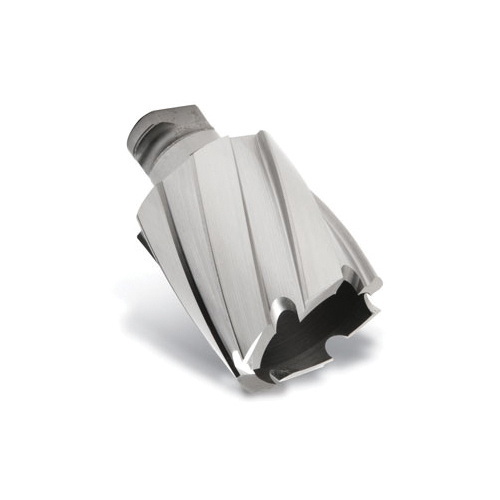

RotaLoc Plus™ Annular Cutters are designed for the Hougen® HMD130 low profile drill. They're made of M42 HSS, feature stack cut geometry for penetrating multiple plates in a single pass and are designed for a full 1 in depth of cut. They feature a 5/8 in bayonet style shank mounting for fast change out, with no tools required to install in the drill spindle and can be as easily removed. For optimum cutter tool life and cutter efficiency use Hougen® Slick-Stik™ lubricant or RotaGel™ cutting lube.
-
BrandHougen®
-
Manufacturer Part Number17824
-
CountryUSA
-
MaterialM42 HSS
-
Applicable MaterialsCast Iron, Non-Ferrous, Plastics and Steel
-
Cutter Diameter3/4 in
-
Cutting Depth1 in
-
Cutting Edge MaterialM42 HSS
-
UNSPSC23241606
-
Standards/ApprovalsPROP65 - This product contains Cobalt, a chemical known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
-
