MORSE C/Tool 8-MM JOBBERS LENGTH DRILLBITS MCT 13110

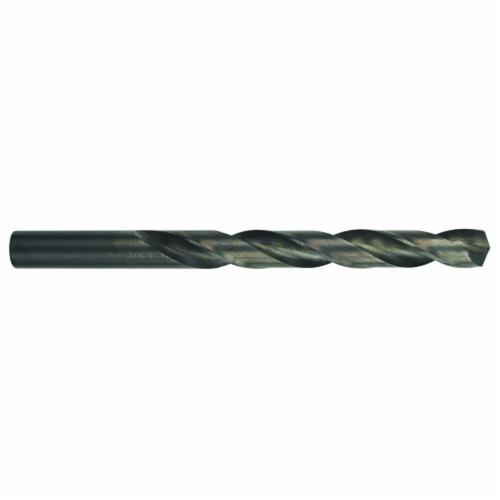

MORSE® 13110 1333 General Purpose Jobber Length Drill Bit, 8 mm Drill - Metric, 0.315 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide
-
BrandMORSE®
-
UPC686125131104
-
Manufacturer Part Number13110
-
CountryUSA
-
FinishBlack Oxide
-
Point Angle118 deg
-
Point TypeStandard
-
MaterialHSS
-
Through Coolant (Yes/No)No
-
Flute Length75 mm
-
Flute TypeStandard
-
TypeGeneral Purpose
-
Applicable MaterialsAluminum and Non-Ferrous Metals
-
Series1333
-
Number of Flutes2
-
Cutting Depth75 mm
-
Shank Size8 mm
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Diameter Measurement SystemMetric/Imperial
-
Drill Size - Decimal Inch0.315 in
-
Drill Size - Metric8 mm
-
Overall Length117 mm
- Black oxide surface treatment increases wear resistance, reduces galling and chip welding, improves chip flow and increases drill lubricant retention
-
UNSPSC23241606
-
Package Description1/PK
-
Standards/ApprovalsNSF Listed
