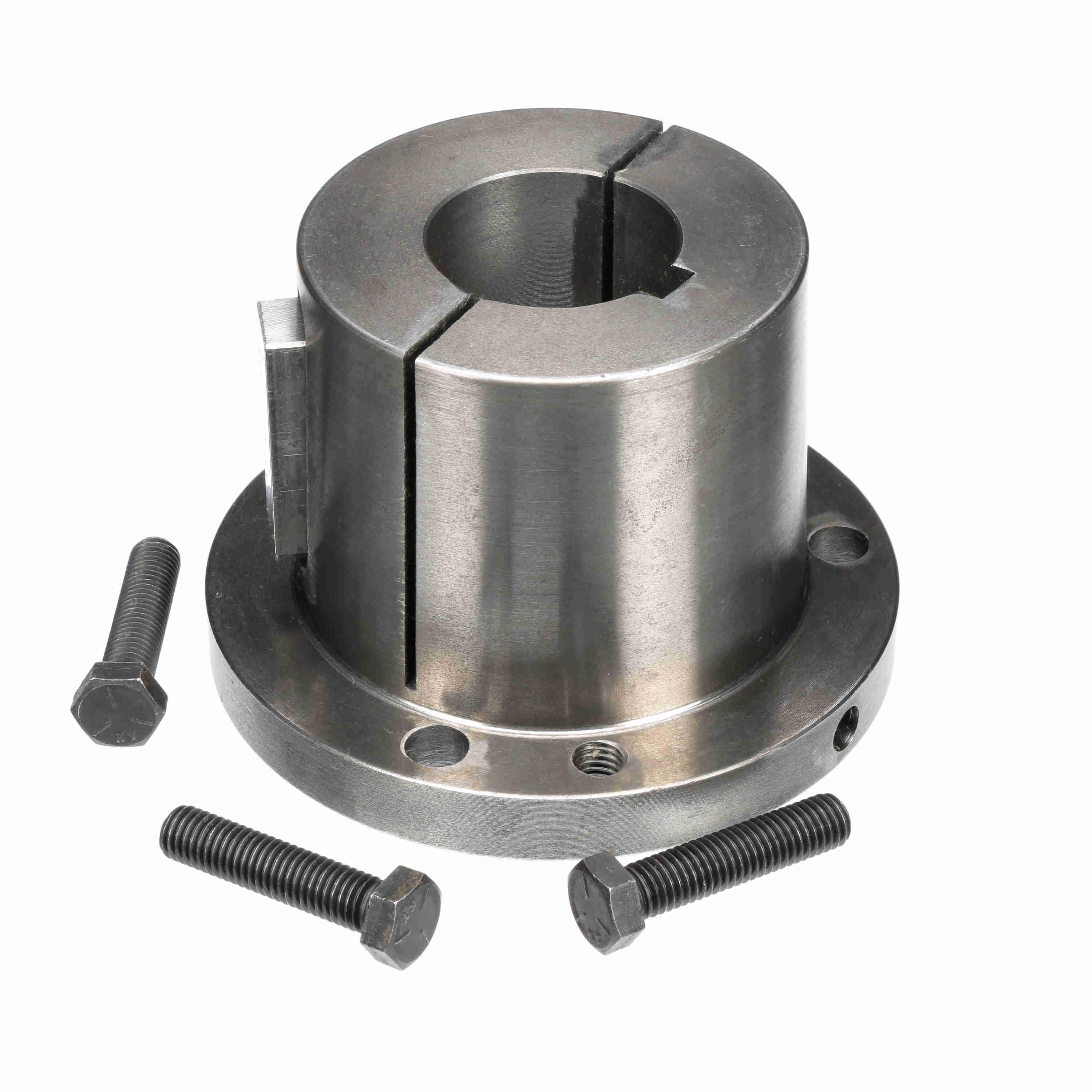

Browning® 1080076 Type S1 Split-Taper Bushing, 2-3/16 in Dia Bore, 4.418 in Dia Small End/4-5/8 in Dia Large End Dia Barrel, 6-3/8 in Dia Flange, 4-3/8 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289121205
-
Manufacturer Part Number1080076
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter6-3/8 in
-
Flange Thickness3/4 in
-
TypeType S1
-
Screw Size1/2 x 2-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter4.418 in Dia Small End/4-5/8 in Dia Large End
-
Bolt Circle Diameter5-3/8 in
-
Bore Diameter2-3/16 in
-
Overall Length4-3/8 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- Solid flange and double split barrel, assures better concentricity to the shaft
- 3/4 in/ft taper on barrel, Self-locking taper provides the highest degree of mechanical locking product to product
- Key to key drive with keys on both the shaft and product to provide the strongest possible drive
-
Alternative Part NumberS1 2 3/16
-
UNSPSC31171605
-
Package Description1/PK
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
