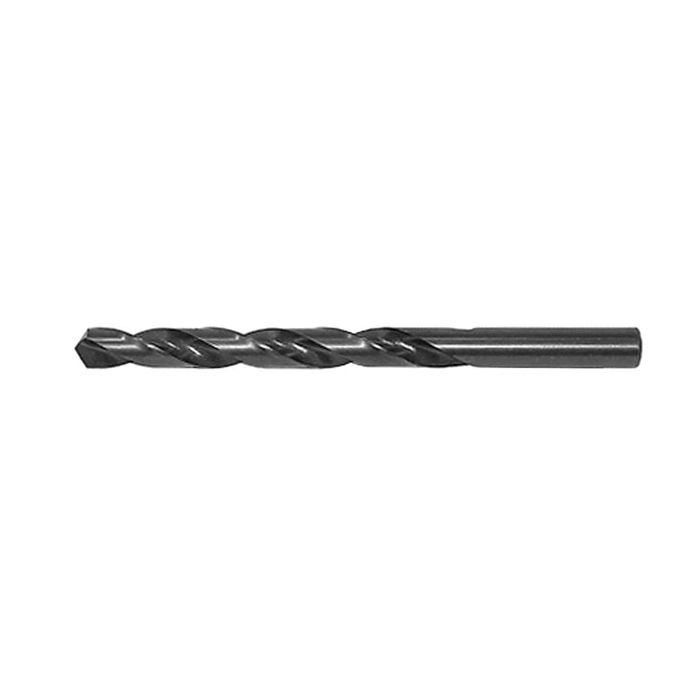

Drillco 200A101 Jobber Length Drill Bit, 1/64 in Drill - Fraction, 0.0156 in Drill - Decimal Inch, 118 deg Point, HSS, Oxide Treated
200/240/280 series drills are designed for general purpose drilling under a wide range of conditions. For low to medium tensile strength materials. The surface treatment prevents chip welding, improves chip flow and increases abrasion resistance.
-
BrandDrillco
-
UPC045996699029
-
Manufacturer Part Number200A101
-
CountryUSA|Canada
-
FinishOxide Treated
-
Point Angle118 deg
-
Point TypeConventional
-
MaterialHSS
-
Through Coolant (Yes/No)No
-
Flute Length3/16 in
-
Flute TypeSpiral
-
Applicable MaterialsCast Iron, Steel and Steel Forging
-
Series200
-
Number of Flutes2
-
Cutting Depth3/16 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.0156 in
-
Drill Size - Fraction1/64 in
-
Overall Length3/4 in
- Black oxide surface treatment for improved life
- Jobber length for most use cases
- Black oxide surface treatment for improved life
- Jobber length for most use cases
-
UNSPSC23241634
-
Package Description12/PK
-
