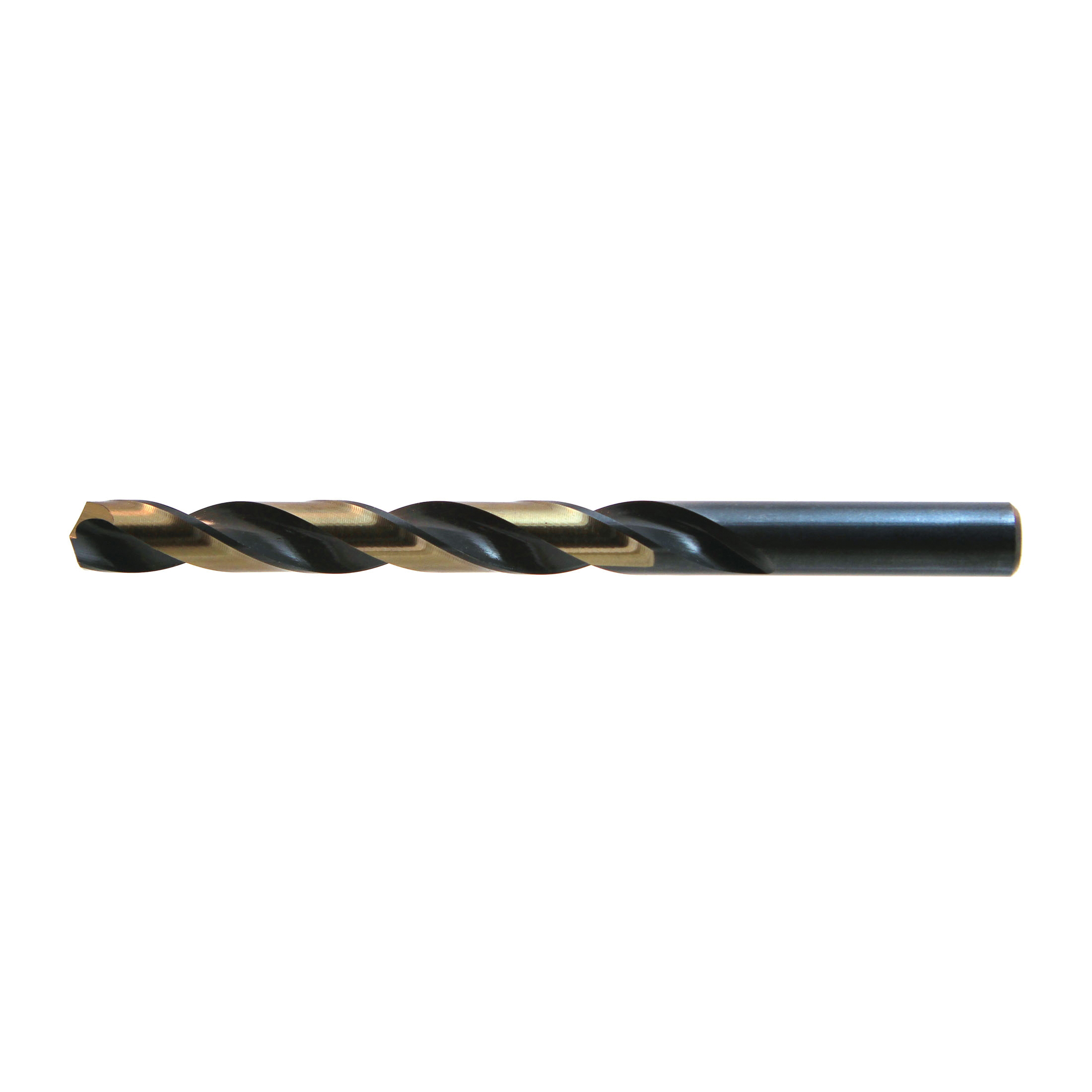

DRILLCO 400N104 Type B Heavy Duty Jobber Length Drill Bit, 1/16 in Drill - Fraction, 0.0625 in Drill - Decimal Inch, 135 deg Point, HSS, Oxide Treated
Nitro® drills (NAS Type B) offer superior performance over standard HSS drills. Heavy-duty design increases tool life and performance. 135° Split Point reduces walking at the point. Ideal for both hand held and CNC Operations. Black & Gold.
-
BrandDrillco
-
UPC045997093390
-
Manufacturer Part Number400N104
-
CountryUSA|Canada
-
FinishOxide Treated
-
Point Angle135 deg
-
Point TypeSplit
-
MaterialHSS
-
Through Coolant (Yes/No)No
-
Flute Length7/8 in
-
Flute TypeSpiral
-
TypeType B Heavy Duty
-
Applicable MaterialsStainless Steel and other Hard Metals
-
Series400N
-
Number of Flutes2
-
Cutting Depth7/8 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.0625 in
-
Drill Size - Fraction1/16 in
-
Overall Length1-7/8 in
- Made with premium grade HSS to last longer
- Self centering 135 split-point for reduced thrust requirements and minimized walking
- Black and gold surface treatment for maximum lubricity
- Jobber length for most use cases
- Made with premium grade HSS to last longer
- Jobber length for most use cases
- Jobber length for most use cases
-
UNSPSC23241634
-
Package Description12/PK
-
Standards/ApprovalsNAS 907
-
SDS
-
Catalog
-
Specification Sheet
