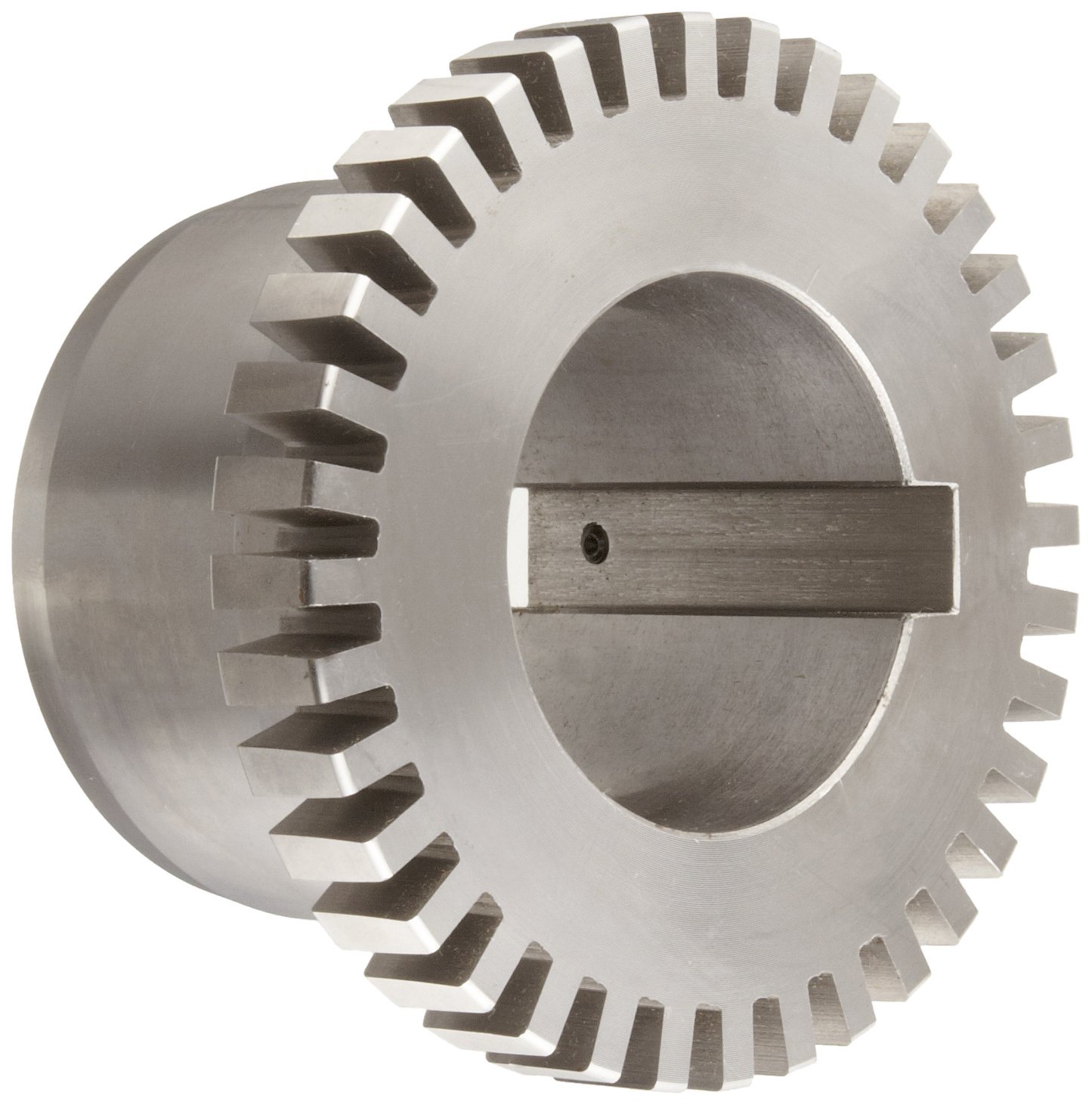

1090-T-3-3/8 Dodge® 6802 Type T10/T20 Grid Coupling Hub, 1090T Coupling, 3-3/8 in Dia Bore, 3.9 in L Through Bore, 4.88 in Dia Hub, Steel
The basic Grid-Lign® coupling consists of two steel shaft hubs, a high strength spring steel tapered grid element, two seals and a cover assembly. Misalignment and end float are accommodated by the sliding action of the grid in the lubricated hub grooves.
-
BrandDodge®
-
UPC782475380282
-
Manufacturer Part Number6802
-
CountryUSA
-
MaterialSteel
-
Maximum Speed3600 rpm
-
TypeType T10/T20
-
Coupling Size1090T
-
Hub Diameter4.88 in
-
Keyway Size7/8 x 7/16 in
-
Length Through Bore3.9 in
-
Bore Diameter3-3/8 in
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100943901 |
-
UNSPSC31163009
-
Standards/ApprovalsAGMA 9002 Standard
-
Specification Sheet
