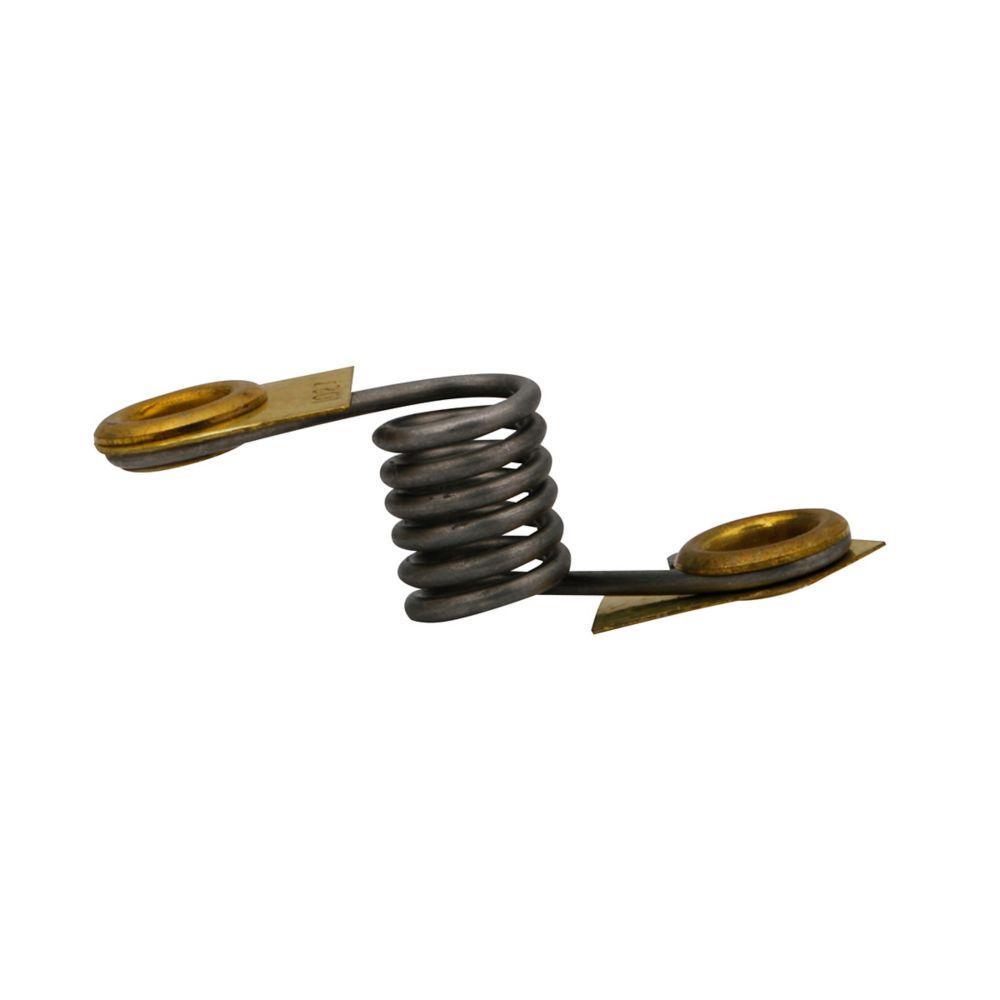

EATON H1022 Heater Coil With Marty-Mouse™ Ears
Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
-
BrandEATON
-
UPC782113212562
-
Manufacturer Part NumberH1022
-
CountryUSA
-
Full Load Current1.78 to 2.1 A
-
Trip TypeStandard
-
Enclosure TypeNEMA 00/0/1/1.5/5/6/7/8
- For replacement in existing applications only
-
Alternative Part Number7345585
-
UNSPSC39122330
-
IDEA Index ID7345585
-
Package DescriptionEACH
-
Standards/ApprovalsContact Manufacturer,Not Applicable
-
Specification Sheet
-
Owners/User Manual
Recently Viewed
Eaton's Freedom starters and contactors feature a compact, space-saving design, using state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. In addition to the bimetallic overload, Eaton also offers a series of electronic overload relay (C440) available as a standalone unit and assembled with Freedom contactor.
Square D™ 8910DPA53V02 8910DPA Electro-Mechanical 3-Phase Electromechanical Type Dpa Definite Purpose Contactor, 110/120 V AC V Coil, 50 A, 3NO Contact, 3 Poles
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 50 ampere and a resistive rating of 65 amperes. It also has a 3 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 15 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
Each heater is identified by a catalog number stamped on one terminal. The heater application table indicates the range of full load motor current to which a given heater may be applied. Heaters should be selected on the basis of the actual full load current and service factor as shown on the motor nameplate or in the manufacturer's published literature. When motor and overload relay are in the same ambient and the service factor of the motor is 1.15 to 1.25, select heaters from the heater application table. If the service factor of the motor is 1 or there is no service factor shown or a maximum of 115% protection is desired, select one size smaller heater than indicated.
