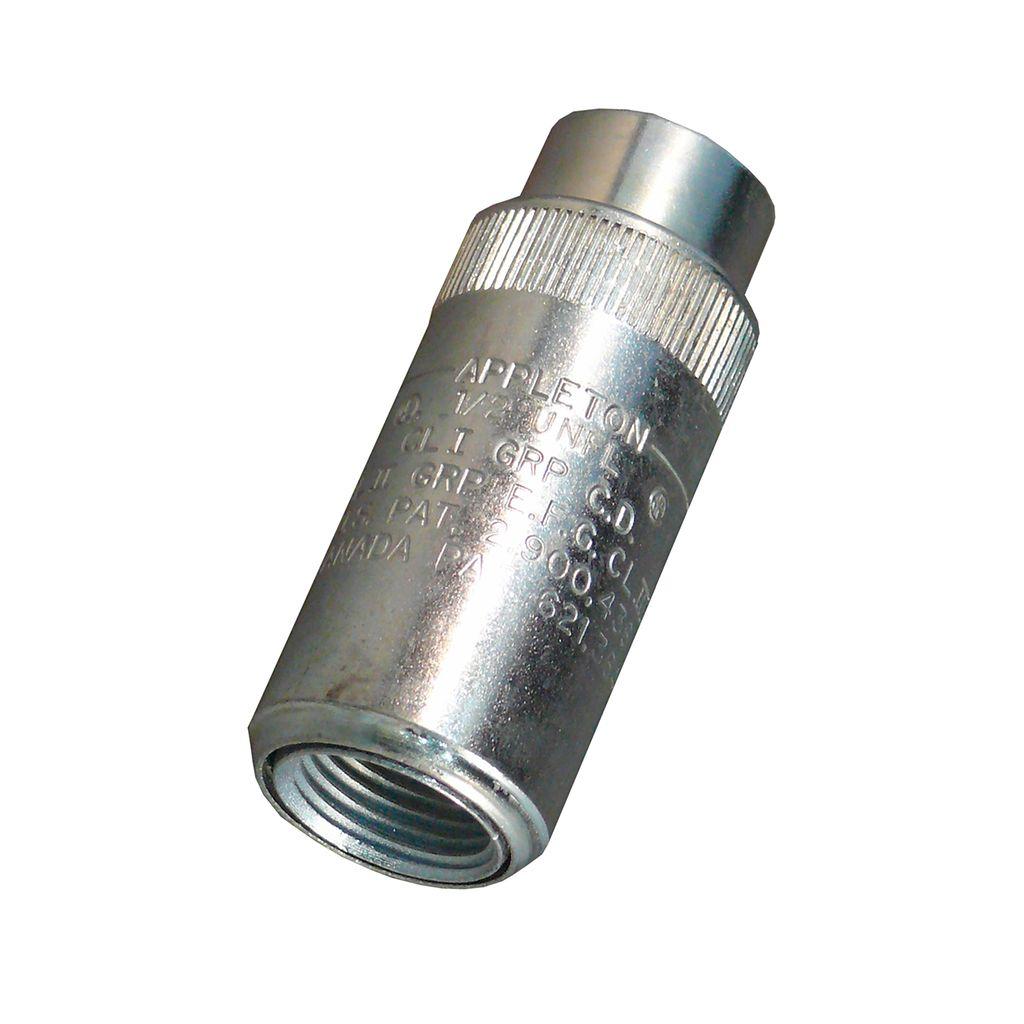

Appleton® UNILETS® UNY75NR Dust-Ignitionproof Explosionproof Conduit Union, 3/4 in, Steel, Zinc Electroplated
Appleton® UNY, UNF, and UNL explosionproof and dust-ignitionproof unions are used for joining conduit and connecting conduit to enclosures. They facilitate modifications and permit the removal of enclosures without turning or removing conduit. They are also available as expansion unions, which compensate for the expansion and contraction of conduit.
-
BrandAppleton®
-
UPC781381234245
-
Manufacturer Part NumberUNY75NR
-
CountryUSA|Canada
-
FinishZinc Electroplated
-
MaterialSteel
-
TypeDust-Ignitionproof Explosionproof
-
SeriesUNY
-
Dimensions1.75 in OD x 2.16 in L
-
Size3/4 in
-
Suitable For Use WithIMC/Threaded Rigid Metallic Conduit
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Concentric ring interlocked design sizes makes possible smaller diameter, allowing use in tighter spaces
- Facilitates modifications, permits removal of enclosures without turning or removal of conduit
- Nipple not removable
- Male/female threaded connection
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 10U904 |
-
Alternative Part Number8328463
-
UNSPSC39131707
-
IDEA Index ID8328463
-
Package DescriptionEACH
-
Standards/ApprovalsUL 886|UL 1203|UL File No. E10444|Class I, Div 1 and 2 Groups A, B, C, D, Class II, Div 1 and 2 Groups E, F, G, Class III|CSA C22.2 No. 25/30|CSA 065181
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
