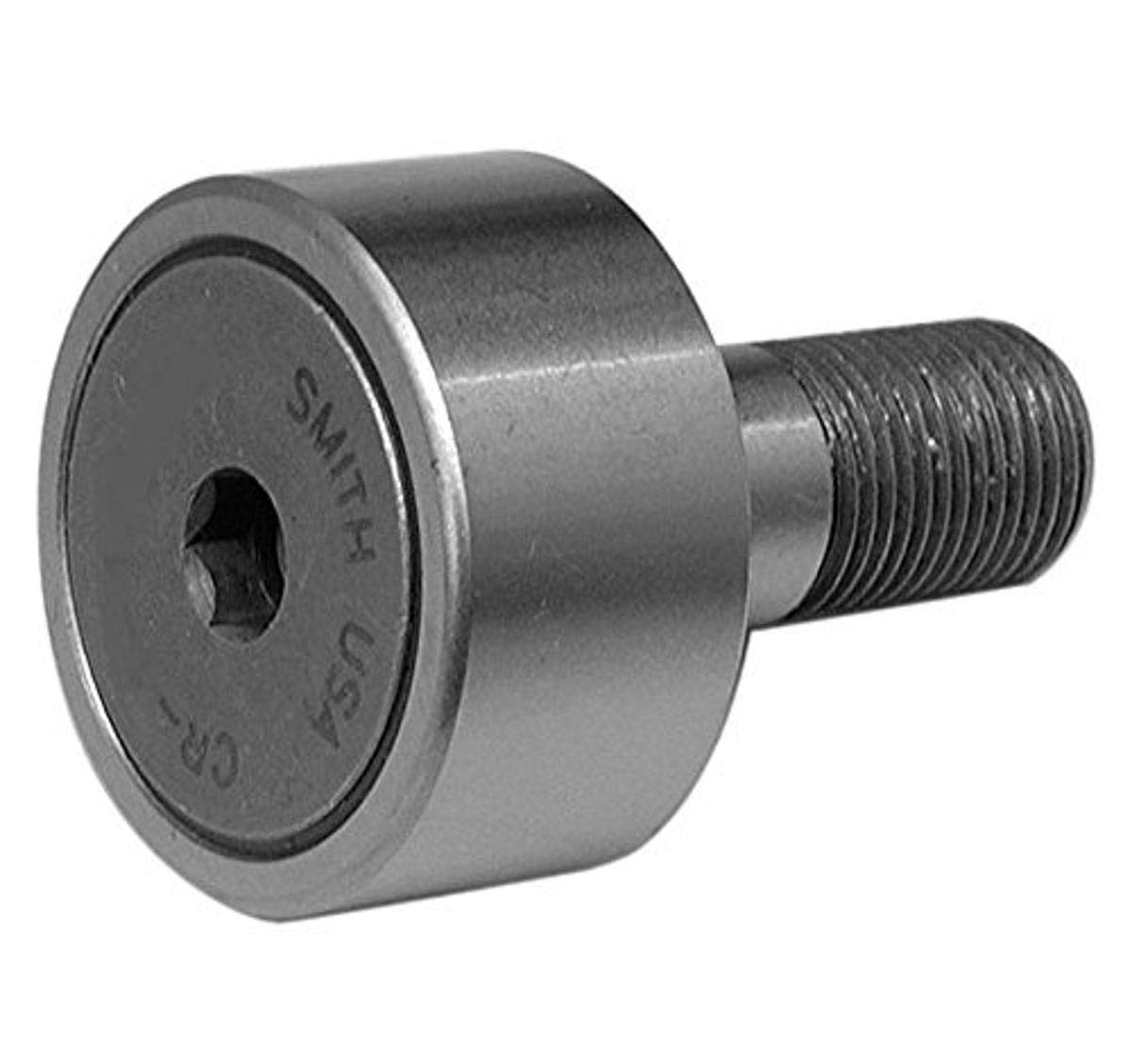

Smith Bearing® HR-1-X Cylindrical Stud Type Needle Bearing Cam Follower, 1 in Dia x 5/8 in W Roller, 5/8 in Dia x 1 in L Stud, 52100 Steel Roller
The HR Series have a larger diameter stud and are recommended for applications with high running loads and/or heavy shocks where deflection should be held to a minimum. Rollers and outer races are identical to the standard CR Series. Manufactured from high alloy bearing quality steel.
-
BrandSmith Bearing®
-
UPC651041128682
-
Manufacturer Part NumberHR-1-X
-
CountryUSA
-
Load Capacity2850 lb Dynamic/6200 lb Static
-
Thread Length1/2 in
-
Thread Size5/8-18 UNF-2A
-
Closure TypeSealed
-
TypeCylindrical Stud Type
-
Roller Diameter1 in
-
Roller Material52100 Steel
-
Roller Width5/8 in
-
Head TypeScrewdriver Slot
-
SeriesHR-X
-
Stud Diameter5/8 in
-
Stud Length1 in
-
Stud TypeHeavy
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 11Y010 |
-
UNSPSC31171530
-
Warranty12 months
-
Catalog
-
Full Engineering Drawing
