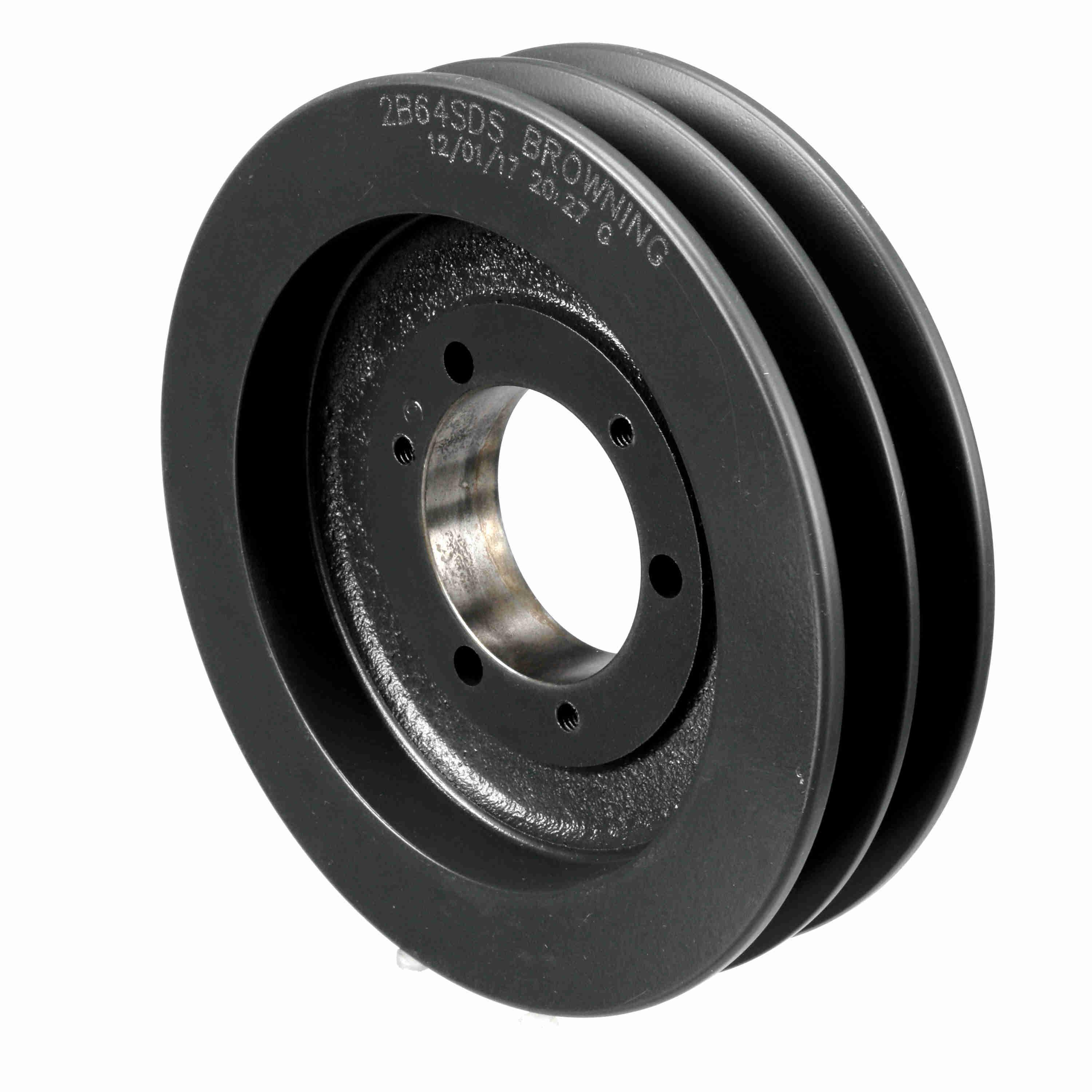

Browning® 1004282 Type D2 Multiple Sheave, 1/2 to 2 in QD® Bore, 6-3/4 in OD, 2 Grooves, 6.2 in (A)/6.7 in (B) Dia Pitch, 1-3/4 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289392919
-
Manufacturer Part Number1004282
-
CountryUSA
-
Face Width1-3/4 in
-
Bushing TypeSDS
-
Pitch Diameter6.2 in (A)/6.7 in (B)
-
MaterialCast Iron
-
TypeType D2
-
Hub Projection0.04375 in
-
Number of Grooves2
-
Outside Diameter6-3/4 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length1.79375 in
-
Suitable For Use WithGripbelt® A and B Cross Section Belts
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
-
Alternative Part Number2B64SDS
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
