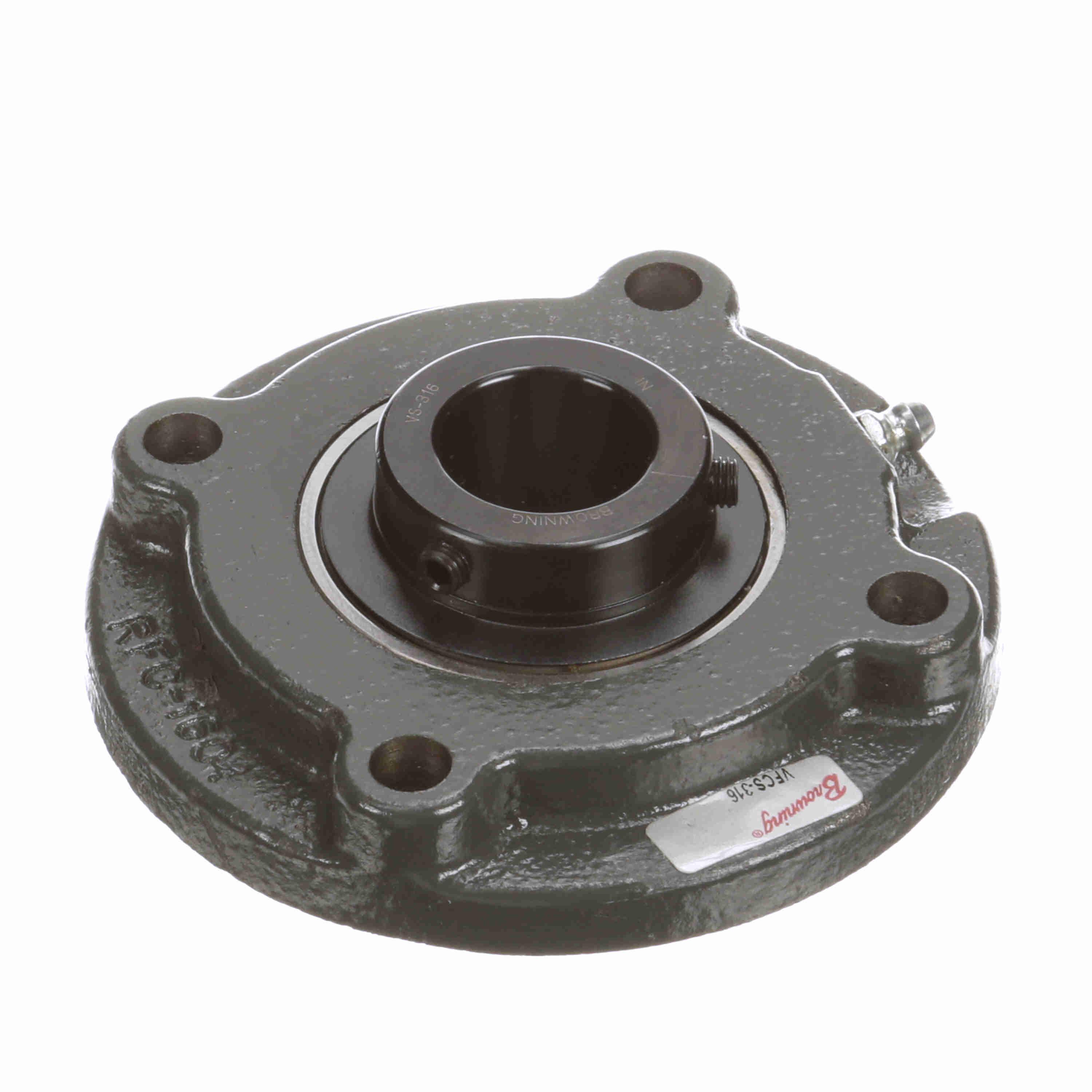

Browning® 767559 VFCS 300 Medium Duty Non-Expansion Round/Straight Bore Flange Mount Ball Bearing Unit, 1 in Dia Bore, 3-5/8 in Dia Bolt Circle, 4-Bolt Flange Mount, 4-3/8 in OAL/Dia
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289520343
-
Manufacturer Part Number767559
-
CountryUSA
-
Load Capacity4381 lb Dynamic/2567 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating-20 to 200 deg F
-
Flange Mounting Type4-Bolt
-
Maximum Speed4500 rpm
-
TypeMedium Duty Non-Expansion Round/Straight Bore
-
Seal MaterialNitrile Rubber
-
SeriesVFCS 300
-
Bearing MaterialSteel
-
Bolt Circle Diameter3-5/8 in
-
Bore Diameter1 in
-
Overall Depth1-1/4 in
-
Overall Length/Diameter4-3/8 in
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Zone hardened inner race
- 52100 black oxide coating steel insert
- Powder coat epoxy cast iron housing
-
Alternative Part NumberVFCS-316
-
UNSPSC31171504
-
Package DescriptionEACH
-
Warranty1 Year
-
