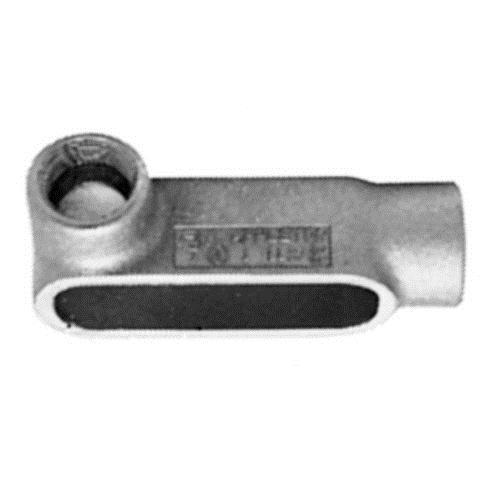

Appleton® UNILETS™ LL67 Type LL Conduit Outlet Body, 2 in Hub, Form 7, 50 cu-in, Grayloy Iron, Triple Coated
Appleton® FM7™ Conduit Outlet Bodies are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
-
BrandAppleton®
-
UPC781381506878
-
Manufacturer Part NumberLL67
-
CountryUSA|Canada
-
Capacity50 cu-in
-
FinishTriple Coated
-
MaterialGrayloy Iron
-
FormForm 7
-
ColorGray
-
TypeType LL
-
Connection TypeTapered FNPT
-
Mounting TypeSurface
-
Hub Size2 in
-
Number of Hubs2
-
Dimensions8.13 in L x 4.06 in W x 4.25 in H
-
EnclosureNEMA FB-1
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Wedge-Lok™ form-in-place covers with integral gasket are approved for use in wet locations
- Grayloy iron bodies with cast covers and gasket are approved for use in wet locations
- Unique Wedge-Lok™ clip cover design allows easy removal at any later time, without damaging the conduit body and cover is secured with clips, not screws
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7™ and Form 7™ units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling, and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation
- Smooth hub openings allow easy conduit joining
- Pan head cover screws secure cover clips and provide superior screwdriver seating and torque
- Cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 10W028 |
-
Alternative Part Number8175145
-
UNSPSC39131708
-
IDEA Index ID8175145
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|UL 514A|UL 514B File No. E2527|CSA C22.2 No. 18.3/065183
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
