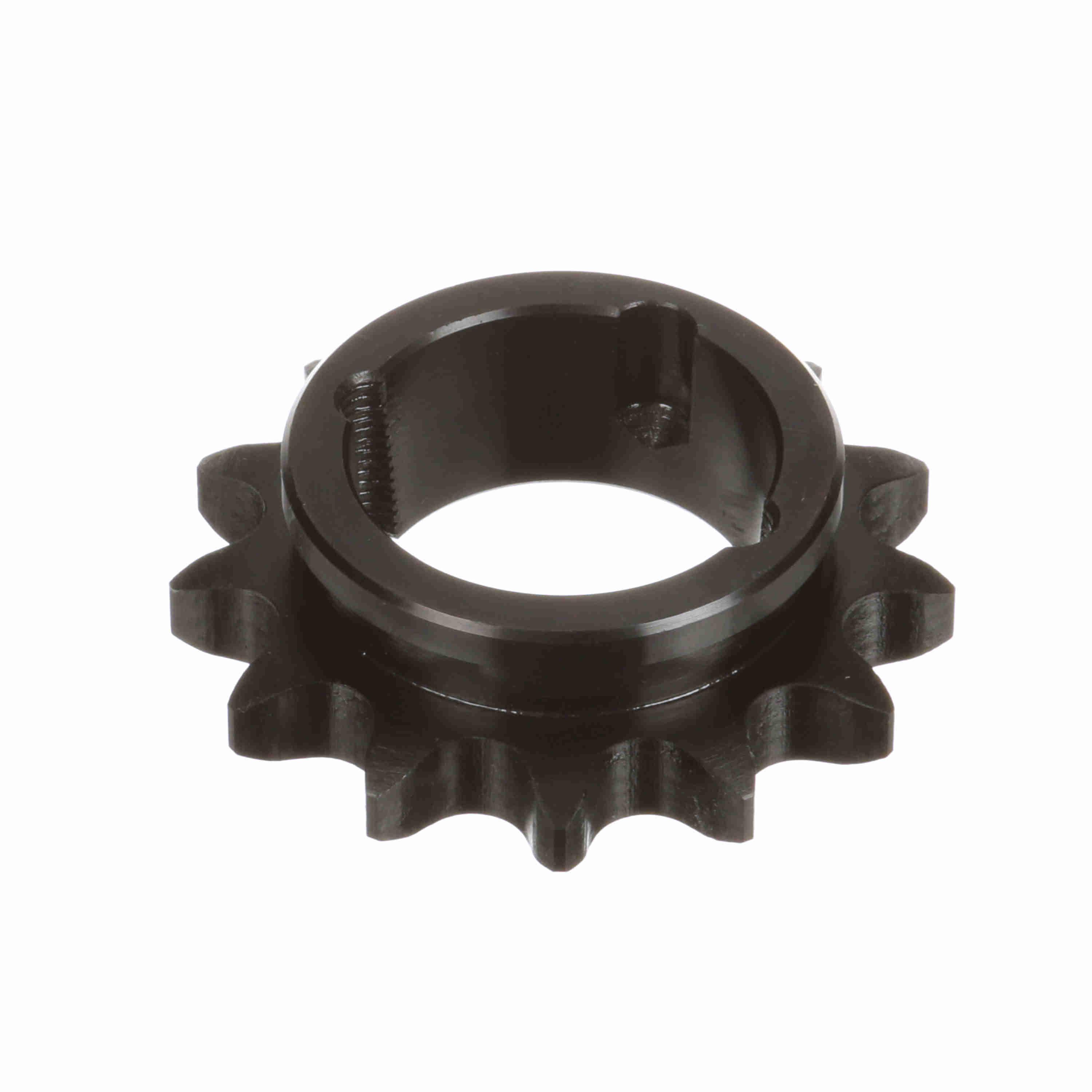

Browning 13-TOOTH BUSH #60-1 CHAIN SPROCKET BRW H-60-TB-13
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289223961
-
Manufacturer Part Number3790649
-
CountryUSA
-
Bushing TypeType 1 Taper Bore
-
Pitch3/4 in
-
Pitch Diameter3.134 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand
-
Hub Diameter2-15/32 in
-
Number of Teeth13
-
Outside Diameter3.493 in
-
Length Through Bore1 in
-
Bore Diameter1/2 in
-
Alternative Part NumberH60TB13
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
