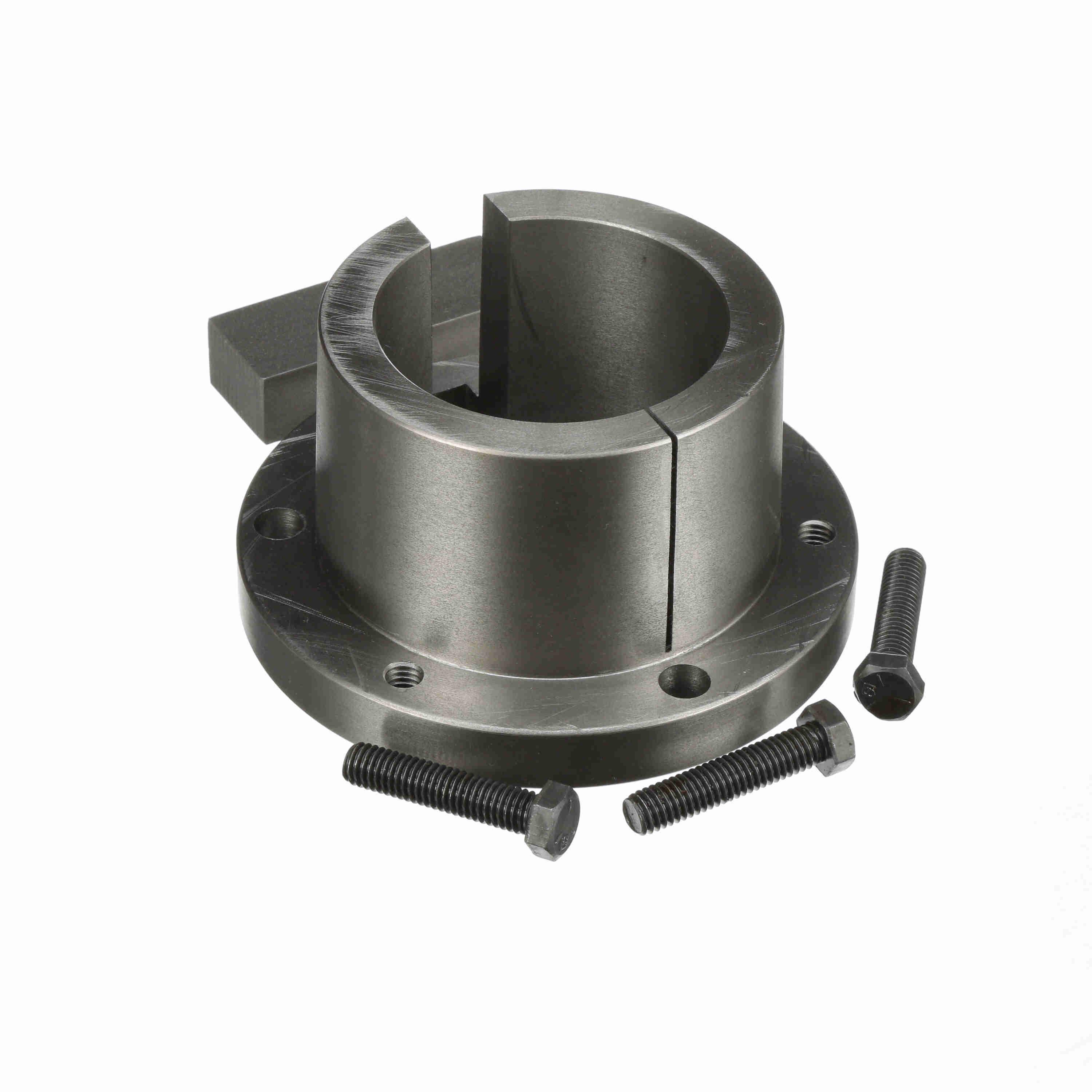

Browning® 1070366 Split Taper Bushing, 2-15/16 in Dia Bore, 3-7/8 in Small End/4 in Large End Dia Barrel, 5-3/8 in Dia Flange, 2-7/8 in OAL, Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289280742
-
Manufacturer Part Number1070366
-
CountryUSA
-
MaterialSteel
-
Flange Diameter5-3/8 in
-
Flange Thickness5/8 in
-
Screw Size3/8 x 1-3/4 in
-
Number of Bolt Holes3
-
Barrel Diameter3-7/8 in Small End/4 in Large End
-
Keyway Size3/4 x 3/8 in
-
Bolt Circle Diameter4-5/8 in
-
Bore Diameter2-15/16 in
-
Overall Length2-7/8 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberR1 2 15/16
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
