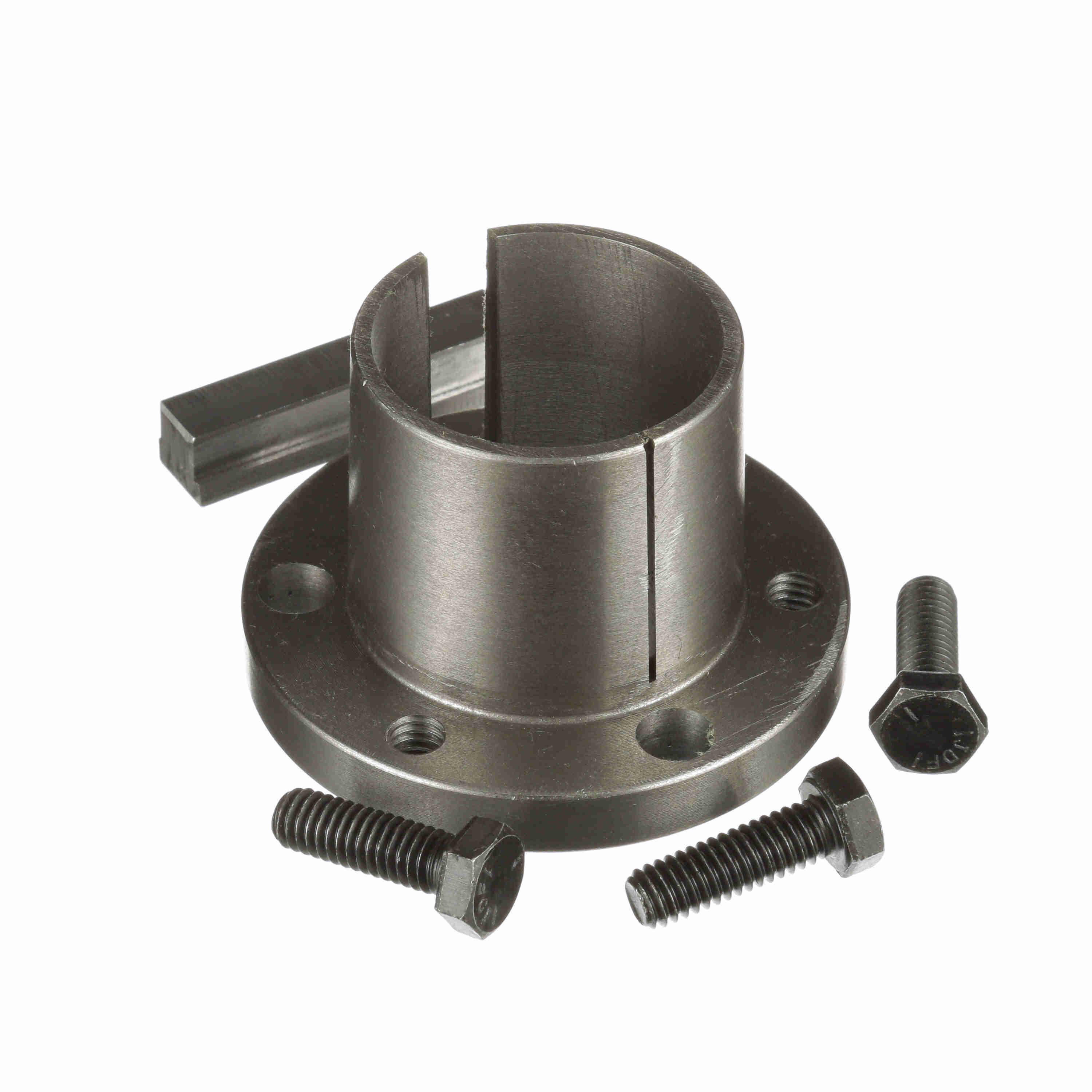

Browning® 1069939 Type P1 Split-Taper Bushing, 42 mm Dia Bore, 1.856 in Dia Small End/1.938 in Dia Large End Dia Barrel, 3 in Dia Flange, 1.938 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289193288
-
Manufacturer Part Number1069939
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter3 in
-
Flange Thickness3/8 in
-
TypeType P1
-
Screw Size5/16 x 1 in
-
Number of Bolt Holes3
-
Barrel Diameter1.856 in Dia Small End/1.938 in Dia Large End
-
Bolt Circle Diameter2.438 in
-
Bore Diameter42 mm
-
Overall Length1.938 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberP1 42 MM
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
