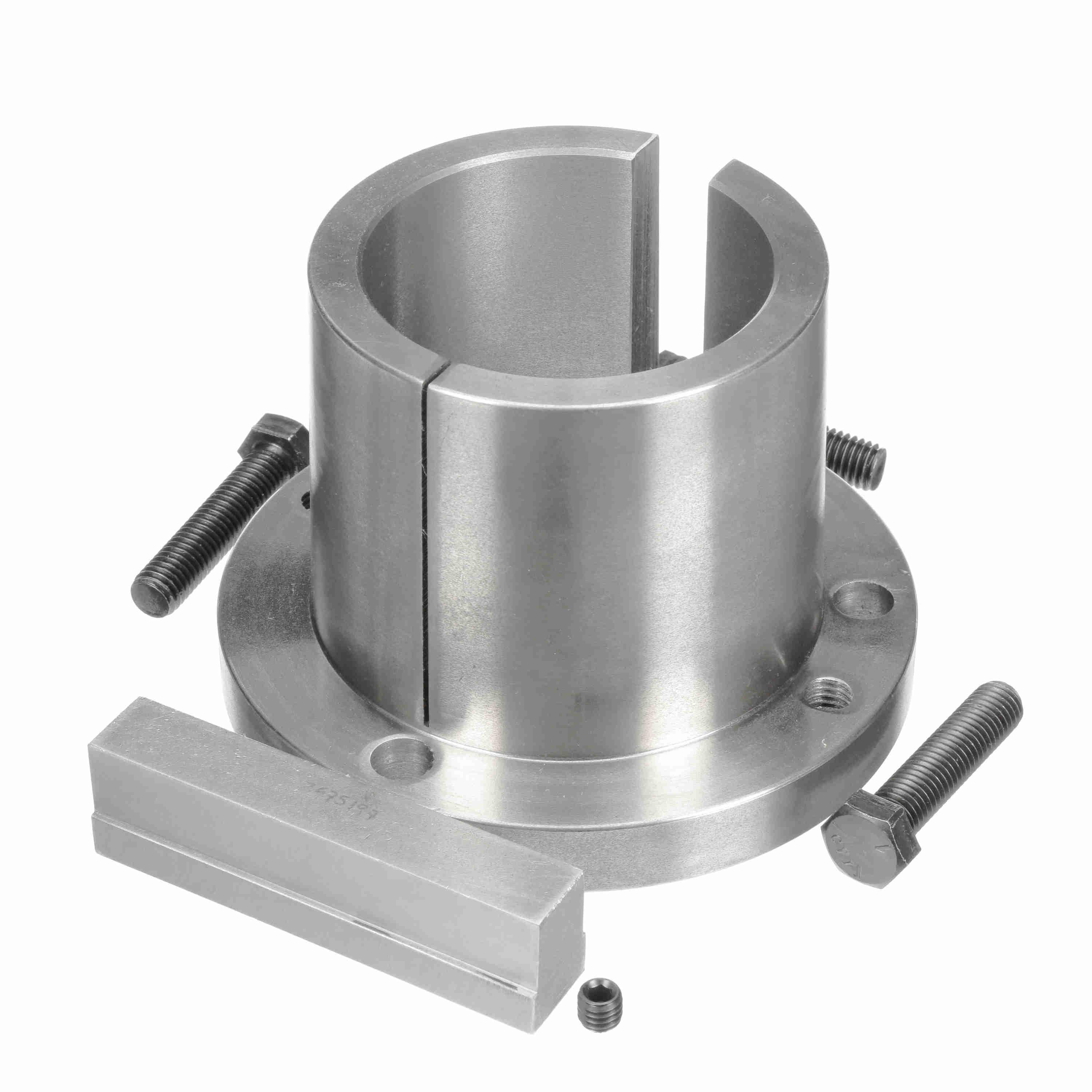

Browning® 1080258 Type S1 Split-Taper Bushing, 3-1/2 in Dia Bore, 4.418 in Dia Small End/4-5/8 in Dia Large End Dia Barrel, 6-3/8 in Dia Flange, 4-3/8 in OAL, Sintered Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289241446
-
Manufacturer Part Number1080258
-
CountryUSA
-
MaterialSintered Steel
-
Flange Diameter6-3/8 in
-
Flange Thickness3/4 in
-
TypeType S1
-
Screw Size1/2 x 2-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter4.418 in Dia Small End/4-5/8 in Dia Large End
-
Bolt Circle Diameter5-3/8 in
-
Bore Diameter3-1/2 in
-
Overall Length4-3/8 in
-
Suitable For Use WithGearbelt® Multiple Groove Sheaves
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
- Standard Bearings - Commercially available Tapered Roller Bearings provide maximum overhung load capacity
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberS1 3 1/2
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
WarrantyLifetime Warranty - If this bushing ever fails EPT will replace it Free of charge, 1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
