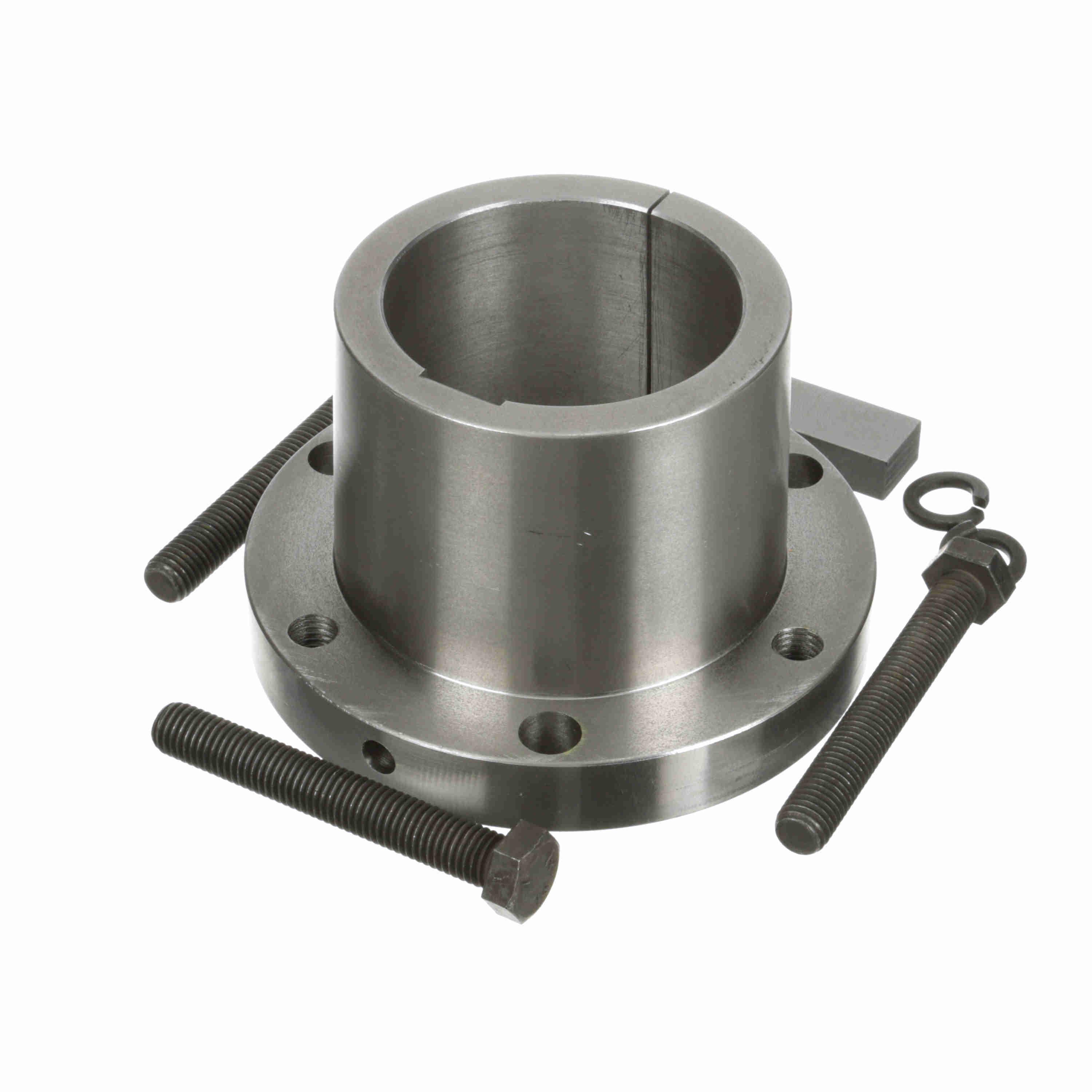

Browning® 1074533 Type J Q-D® Bushing, 3-7/8 in Dia Bore, 5.1484 in Dia Barrel, 7-1/4 in Dia Flange, 4.51 in OAL, Cast Iron
Sure-Grip® quick detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing's position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip® bushings permit the mounting of the same mating part on shafts of different diameters and the mounting of different sheaves on the same shaft using the same bushing.
-
BrandBrowning®
-
UPC662289390700
-
Manufacturer Part Number1074533
-
CountryUSA
-
MaterialCast Iron
-
Flange Diameter7-1/4 in
-
Flange Thickness1 in
-
Torque Rating45000 in-lb
-
TypeType J
-
Screw Size5/8-11 x 4-1/2 in
-
Number of Bolt Holes3
-
Barrel Diameter5.1484 in
-
Keyway Size1 x 1/2 in
-
Bolt Circle Diameter6-1/4 in
-
Bore Diameter3-7/8 in
-
Overall Length4.51 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Conventional mounting
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
UNSPSC31171516
-
Alternative Part NumberJ 3 7/8
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
