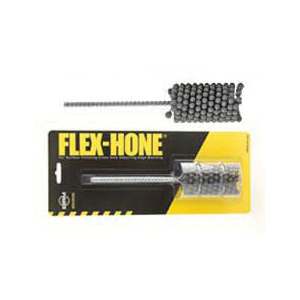

BRUSH RESEARCH BC3/4320SC BC Series Small Diameter Standard Duty Flexible Cylinder Hone, 3/4 in Dia Bore, 2-1/2 in L Abrasive, 8 in OAL, 320 Grit
The BC Series Flex-Hone® tool is designed for use on any type or size of cylinder from 4 mm up to 3 in Dia. This cylinder hone is designed for surface finishing and cross hole deburring in brake cylinders, wheel cylinders, hydraulics, pneumatics and valve guides.
-
BrandFlex-Hone®
-
UPC843469127358
-
Manufacturer Part NumberBC3432
-
CountryUSA
-
Maximum Speed1200 rpm
-
TypeSmall Diameter Standard Duty
-
Grit320
-
Abrasive Length2-1/2 in
-
Abrasive MaterialSilicon Carbide
-
Applicable MaterialsMild Steel, Stainless Steel, Cast Iron, Softer Ferrous and Non-Ferrous Metals
-
SeriesBC Series
-
Bore Diameter3/4 in
-
Overall Length8 in
- Self centering, self aligning, self compensating for wear
- Can be used in virtually any rotating spindle
- Commonly used for finishing, deburring and edge breaking
- Typically achieves a finish of 18 to 30 Microinch (0.5 to 0.7 Micrometer)
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | MJ7375320 |
-
UNSPSC31191500
-
Package DescriptionEACH
-
Standards/ApprovalsSGS Certified|PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
-
Catalog
-
Technical Bulletin
