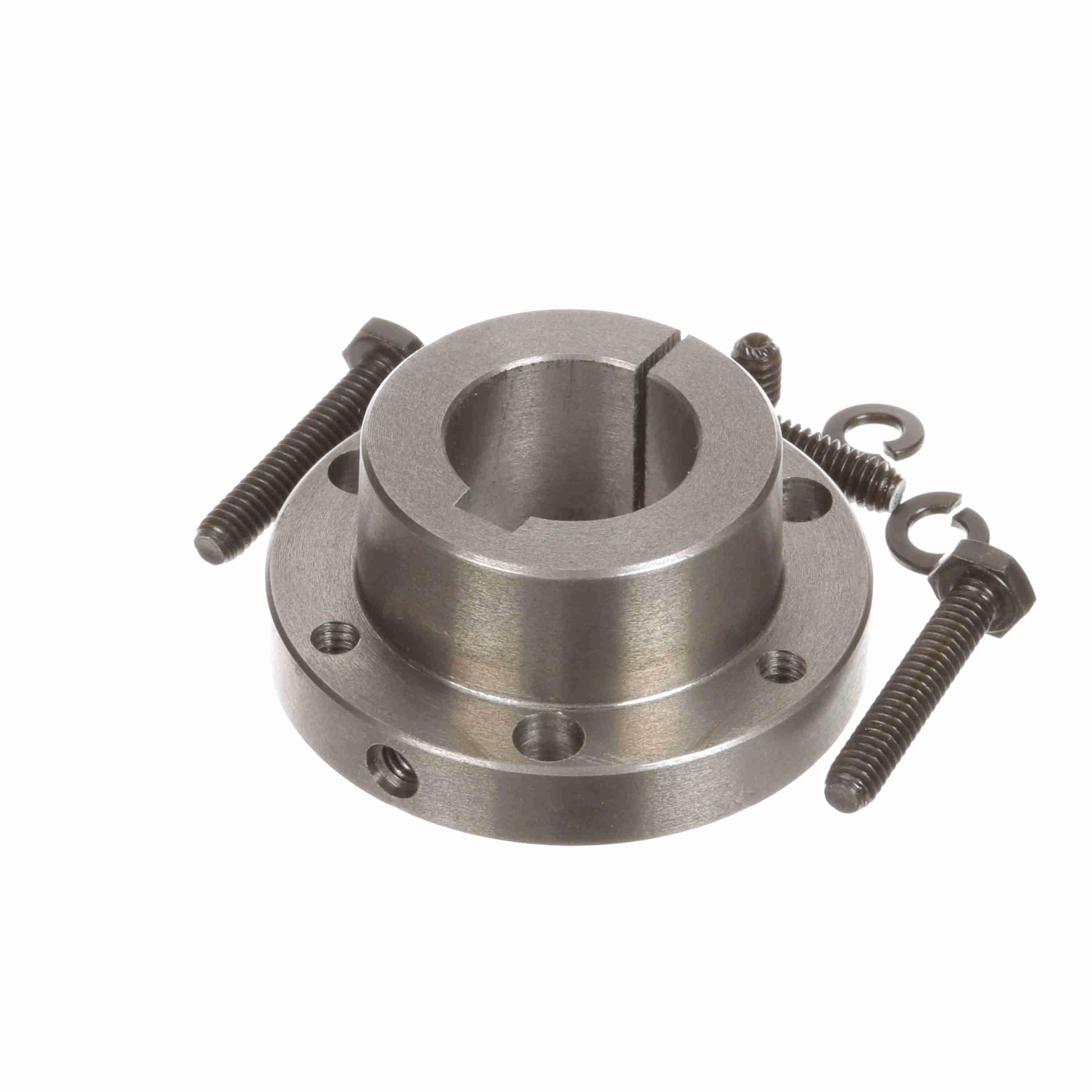

Browning® 3207982 QD Bushing, 28 mm Dia Bore, 1-7/8 in Dia Barrel, 68.2625 mm Dia Flange, 30.48 mm OAL, Ductile Iron
Browning® 3207982 QD Bushing, 28 mm Dia Bore, 1-7/8 in Dia Barrel, 68.2625 mm Dia Flange, 30.48 mm OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289616305
-
Manufacturer Part Number3207982
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter68.2625 mm
-
Flange Thickness7/16 in
-
Torque Rating3500 in-lb
-
Screw Size1/4-20 x 1-3/8 in
-
Number of Bolt Holes3
-
Barrel Diameter1-7/8 in
-
Keyway Size8 x 3.5 mm
-
Bolt Circle Diameter2-1/4 in
-
Bore Diameter28 mm
-
Overall Length30.48 mm
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberSH 28 MM
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
