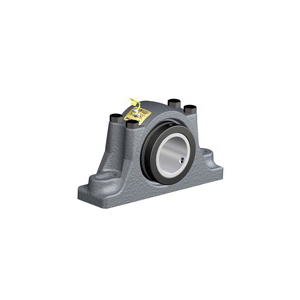

Sealmaster® 550221 RPB Standard-Duty Pillow Block Roller Bearing Unit With Seal Flinger, 2-15/16 in Dia Bore, 8-1/16 to 9-11/16 in L Bolt Center-to-Center, 3-1/8 in Base to Bore Centerline, 11-3/4 in OAL x 6-3/8 in OAH
The Sealmaster® RPB mounted tapered roller bearings are a dimensionally interchangeable upgrade from competitive type E bearings. The exclusive features include unitized replaceable inserts, self-aligning capability and split housing. They also include the Sealmaster® alignment pin. This provides a direct path for lubrication into the bearing and helps to prevent outer race rotation. The Sealmaster® RPB is available with two traditional setscrew locking collars for easy installation. The felt seal with flinger provide a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in both inch and metric. They provide a wide variety of housing, sealing and lubrication options.
-
BrandSealmaster®
-
UPC662288480075
-
Manufacturer Part Number550221
-
CountryUSA
-
Load Capacity9630 lb Dynamic
-
Locking DeviceDouble Set Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed1750 rpm
-
TypeStandard-Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeFelt
-
SeriesRPB
-
Base Width3 in
-
Base to Bore Centerline3-1/8 in
-
Bolt Center-to-Center Length8-1/16 to 9-11/16 in
-
Bore Diameter2-15/16 in
-
Bore TypeRound/Tapered
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height6-3/8 in
-
Overall Length11-3/4 in
-
Overall Width4-1/2 in
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt split cast iron housing
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt split cast iron housing
-
Alternative Part NumberRPB-215-2
-
UNSPSC31171511
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Certified
-
Specification Sheet
-
Instruction/Installation Manual
