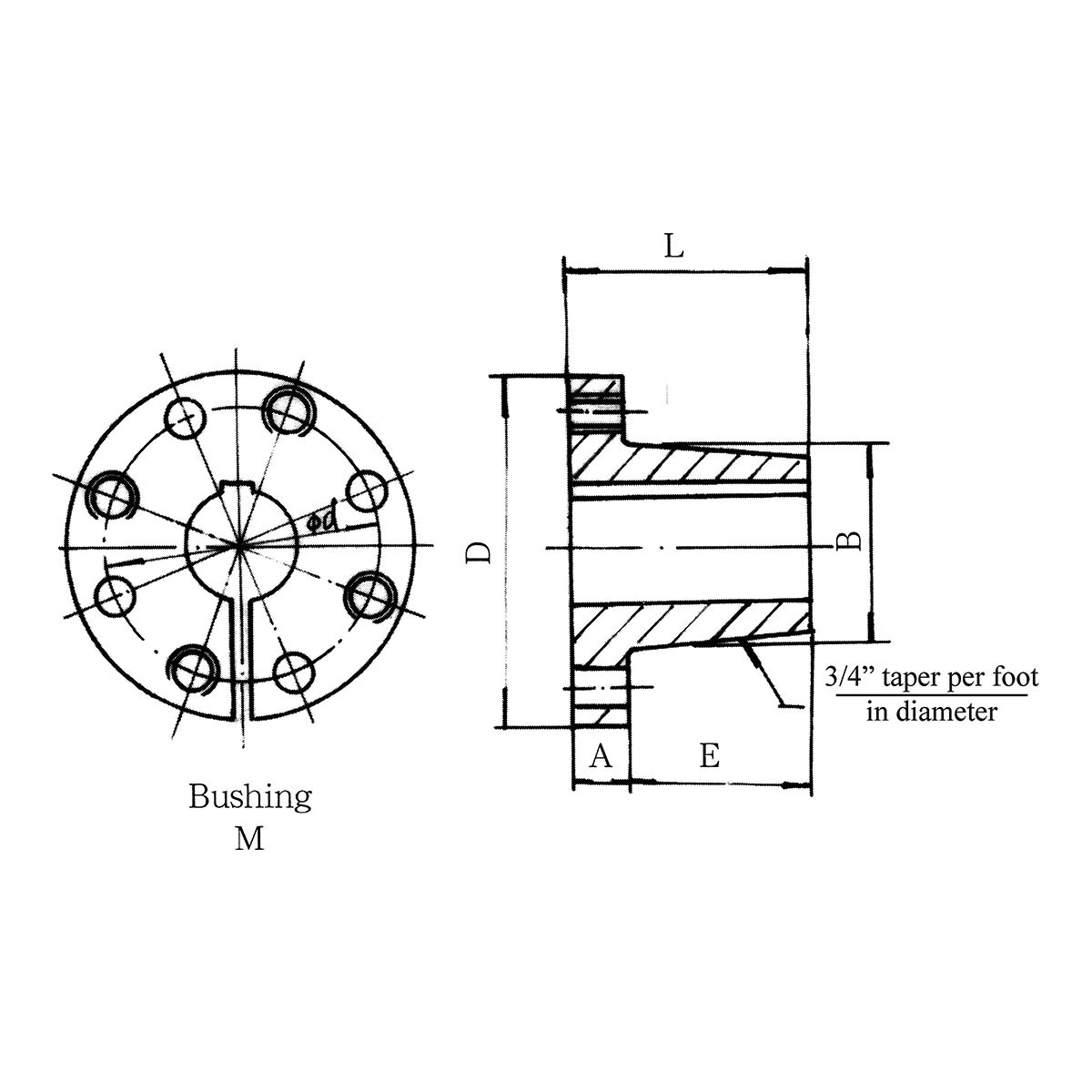

IDC Select® IDC M-2-15/16 Finished Bore QD® Bushing, 2-15/16 in Dia Bore, 6-1/2 in Dia Barrel, 9 in Dia Flange, 6-3/4 in OAL, Nodular Graphite Cast Iron
IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.
-
BrandIDC Select®
-
UPC887412022604
-
Manufacturer Part NumberIDC M-2-15/16
-
CountryUSA
-
MaterialNodular Graphite Cast Iron
-
Flange Diameter9 in
-
Flange Thickness1-1/4 in
-
Torque Rating150 ft-lb
-
TypeFinished Bore
-
Screw Size3/4-12 x 6-3/4 in
-
Barrel Diameter6-1/2 in
-
Keyway Size3/4 x 3/8 in
-
Bolt Circle Diameter7-7/8 in
-
Bore Diameter2-15/16 in
-
Overall Length6-3/4 in
- Easy installation and dismount
- Setscrew over keyway
- Most sizes can be reverse mounted
- Keystock provided with shallow key sizes
- M size QD® bushing
-
UNSPSC31171605
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified|ASTM A536/A536-84|SAE Standard
-
Catalog
-
Technical Bulletin
