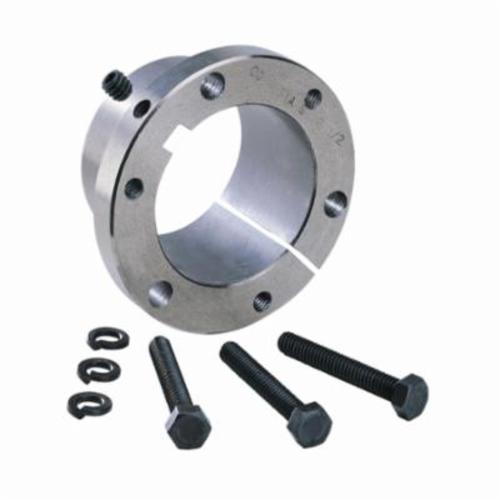

Dodge® SKX15/16 Type SK QD Bushing, 15/16 in Dia Bore, 2-13/16 in Dia Barrel, 3-5/16 in Dia Flange, 1-7/8 in OAL, Ductile Iron
Dodge® QD® bushings have a flanged design and feature a 4 deg taper with conventional or reverse mounting. They are stocked in popular finished bore sizes and minimum plain bore for custom reboring.
-
BrandDodge®
-
UPC775829034122
-
Manufacturer Part NumberSKX15/16
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-5/16 in
-
Flange Thickness1/2 in
-
Torque Rating7000 in-lb
-
TypeType SK
-
Screw Size(3) 5/16 x 2 in NC Cap Screw/1/4-20 UNC x 1/4 in Set Screw
-
Barrel Diameter2-13/16 in
-
Bolt Circle Diameter3-5/16 in
-
Bore Diameter15/16 in
-
Overall Length1-7/8 in
-
Number of Bolt Holes3
-
Hub Diameter4-3/4 in
-
Keyway Size5/16 x 5/32 in
- All bushings up to sizes M, and those with a shallow keyseat, are manufactured in ductile iron, a stronger material offering numerous advantages
- All sizes have a set screw over the keyway to secure the key which is advantageous in vertical applications
- 1-7/8 in W
- Easy On/Off operation
- Manufactured precisely to industry standards
-
UNSPSC31171605
-
Package DescriptionEACH
-
Standards/ApprovalsABMA|AGMA|ATEX|BSA|CEMA|EASA|MHI|MPTA|NEMA|NSSSGA|PTDA|RoHS Compliant|SME|SWE|TUV Certified
-
Alternative Part NumberSK X 1-5/16-KW
-
WarrantyLimited
-
Warranty Information
-
Catalog
-
Specification Sheet
