Boston_Gear_SF1
Browning_3208402

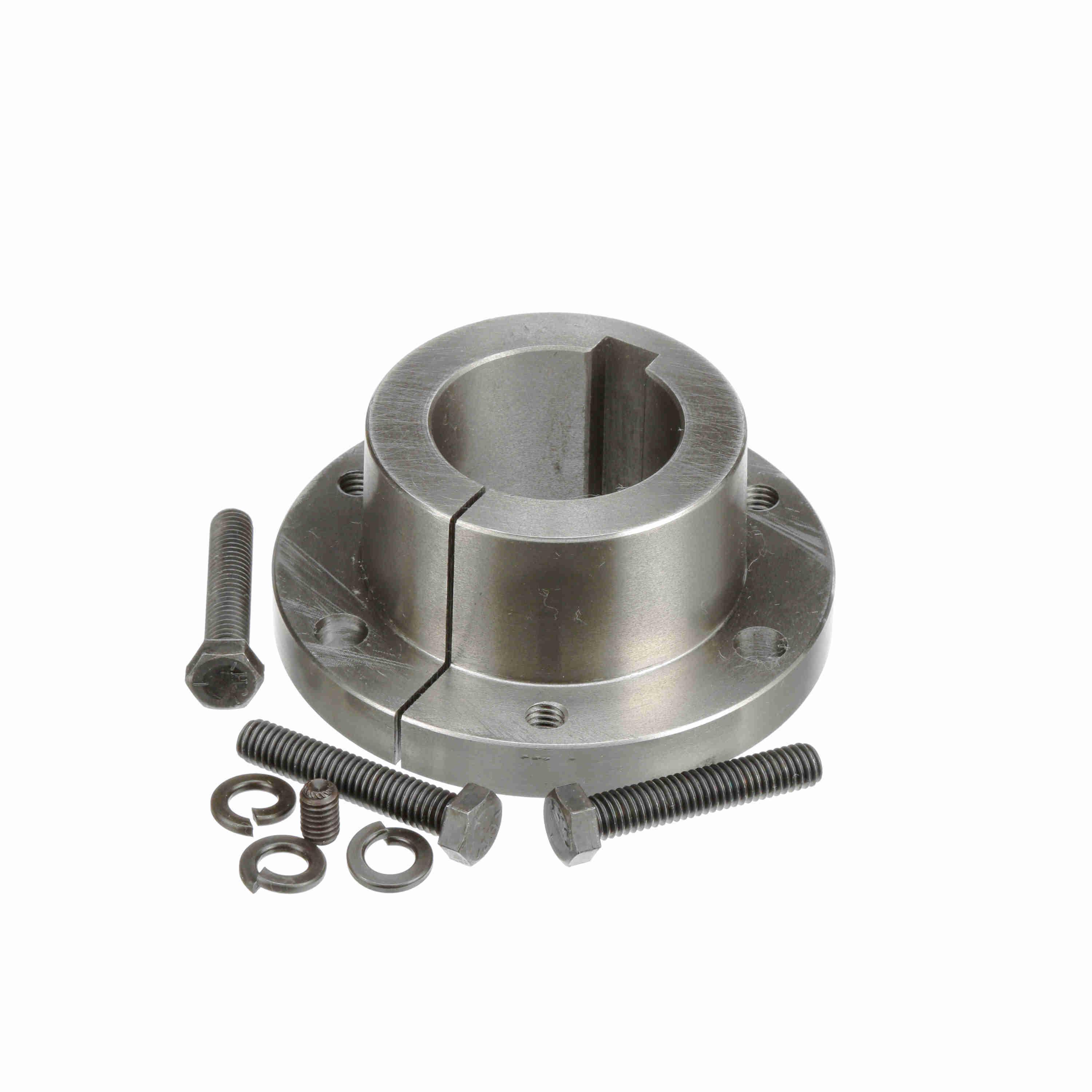

Browning® 1077148 QD Bushing, 3/4 in Dia Bore, 3-1/8 in Dia Barrel, 4-5/8 in Dia Flange, 1.995 in OAL, Ductile Iron

0 Ratings
$59.00
In Stock
SKU: BRWSF3/4
noimage_new

Boston Gear® comprehensive selection of flanged bearings includes spherical bearings with extended inner races featuring setscrews or eccentric locking collars in stamped steel, ductile iron, cast iron or stainless housings. Positive locking by setscrews or an eccentric locking collar ensures smooth operation and a synthetic lip-type seal with steel flingers offer enhanced seal effectiveness.

In Stock
HCI of Jackson: 1
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: QD Bushings
Main specs
  • Brand
    Browning®
  • UPC
    662289415038
  • Manufacturer Part Number
    1077148
  • Country
    USA
Specification
  • Load Capacity
    415 lb
  • Locking Device
    Set Screw
  • Temperature Rating
    225 deg F
  • Finish
    Uncoated
  • Flange Mounting Type
    4-Bolt
  • Maximum Speed
    5000 rpm
  • Type
    Standard-Duty
  • Seal Material
    Synthetic
  • Series
    SF Series
  • Bearing Material
    Cast Iron
  • Bolt Center-to-Center Length
    2-1/2 in
  • Bore Diameter
    3/4 in
  • Overall Depth
    1-31/64 in
  • Overall Height
    3-3/8 in
  • Overall Length/Diameter
    3-3/8 in
  • Material
    Ductile Iron
  • Flange Diameter
    4-5/8 in
  • Flange Thickness
    9/16 in
  • Torque Rating
    11000 in-lb
  • Screw Size
    3/8-16 x 2 in
  • Number of Bolt Holes
    3
  • Barrel Diameter
    3-1/8 in
  • Keyway Size
    3/16 x 3/32 in
  • Bolt Circle Diameter
    3-7/8 in
  • Overall Length
    1.995 in
  • Suitable For Use With
    Browning® Sheaves, Sprockets and Pulleys
Features
  • Reverse mounting ability bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
  • Self locking taper provides the highest degree of mechanical locking product to product
  • Conventional mounting
  • Single adjusting drive tightener, tightener shaft must be ordered separately
  • No shaft required when used with Idler Bushing
  • Malleable iron
Additional Information
  • Alternative Part Number
    SF 3/4
  • UNSPSC
    31171516
  • Standards/Approvals
    PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
  • Warranty
    1 Year
  • Package Description
    EACH
