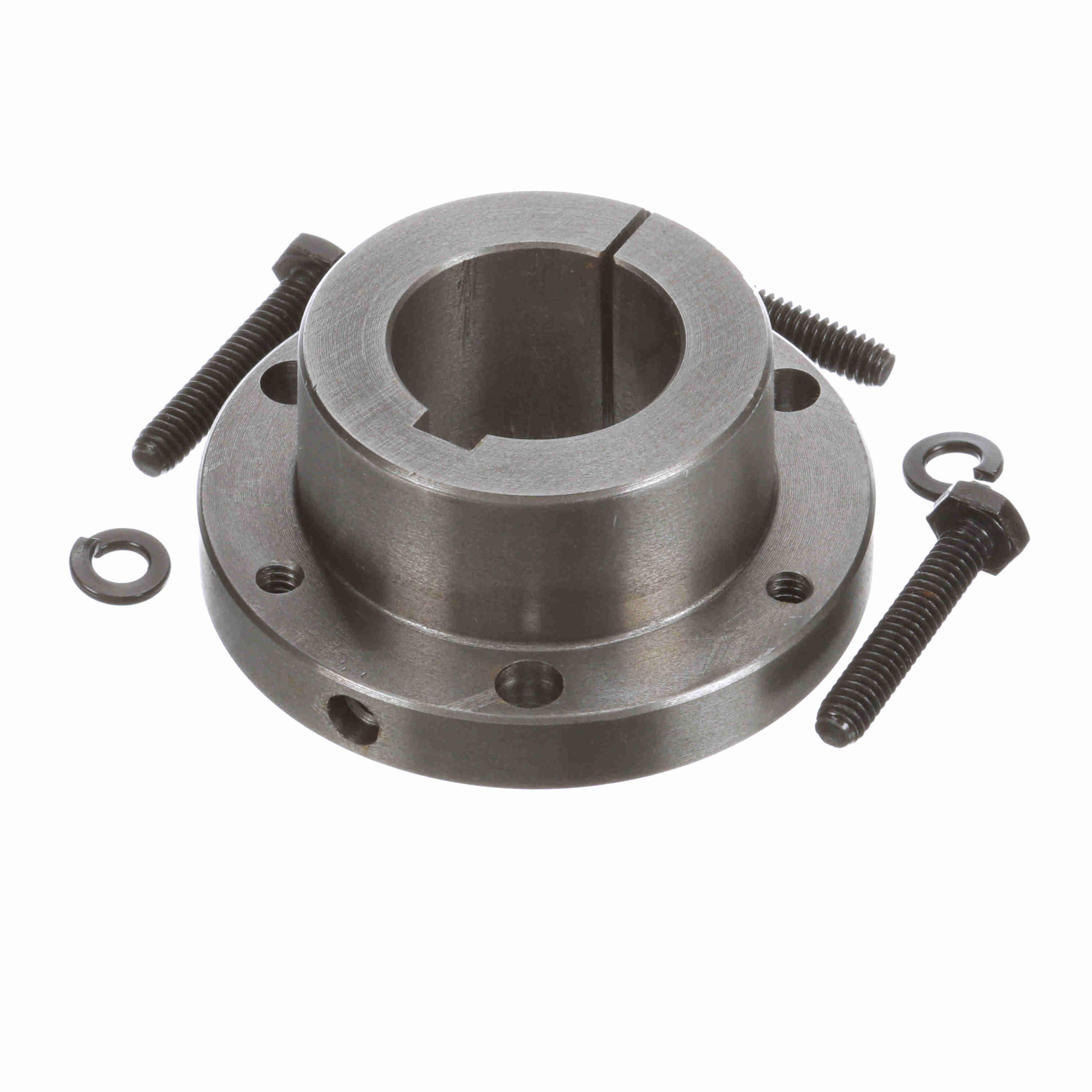

Browning® 1076967 QD Bushing, 1-5/16 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Ductile Iron
Browning® 1076967 QD Bushing, 1-5/16 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289374946
-
Manufacturer Part Number1076967
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-1/8 in
-
Flange Thickness7/16 in
-
Torque Rating5000 in-lb
-
Screw Size1/4-20 x 1-3/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size5/16 x 5/32 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter1-5/16 in
-
Overall Length1.33 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
-
Alternative Part NumberSDS 1 5/16 5/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
