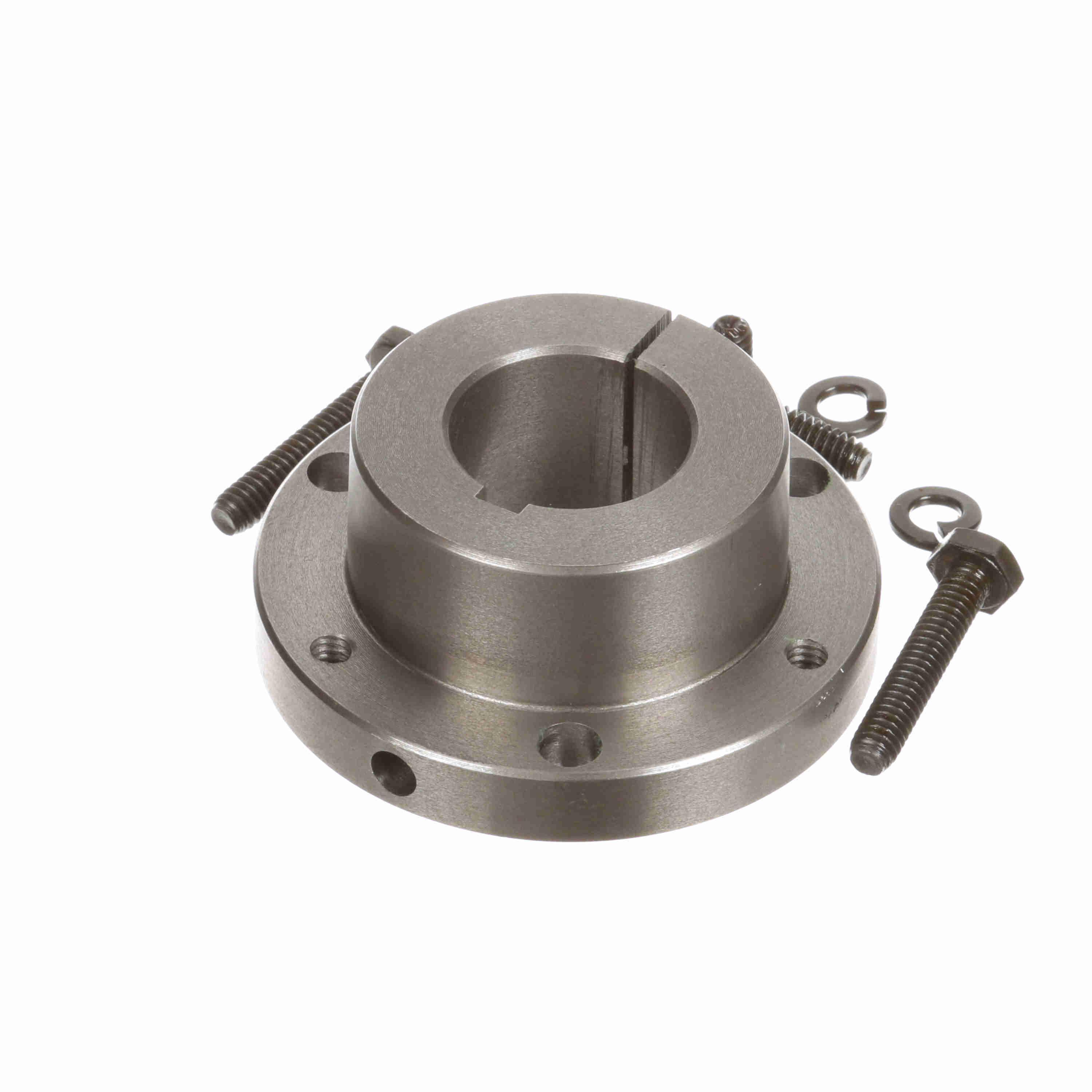

Browning® 1076942 QD Bushing, 1-3/16 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Ductile Iron
$38.65
In Stock
SKU: BRWSDS13/16
Browning® 1076942 QD Bushing, 1-3/16 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Ductile Iron
In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
Back to: QD Bushings
Main specs
-
BrandBrowning®
-
UPC662289414895
-
Manufacturer Part Number1076942
-
CountryUSA
Specification
-
MaterialDuctile Iron
-
Flange Diameter3-1/8 in
-
Flange Thickness7/16 in
-
Torque Rating5000 in-lb
-
Screw Size1/4-20 x 1-3/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size1/4 x 1/8 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter1-3/16 in
-
Overall Length1.33 in
-
Suitable For Use WithBrowning® Sheaves, Sprockets and Pulleys
Features
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
Additional Information
-
Alternative Part NumberSDS 1 3/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
Attachments
-
Instruction/Installation Manual
