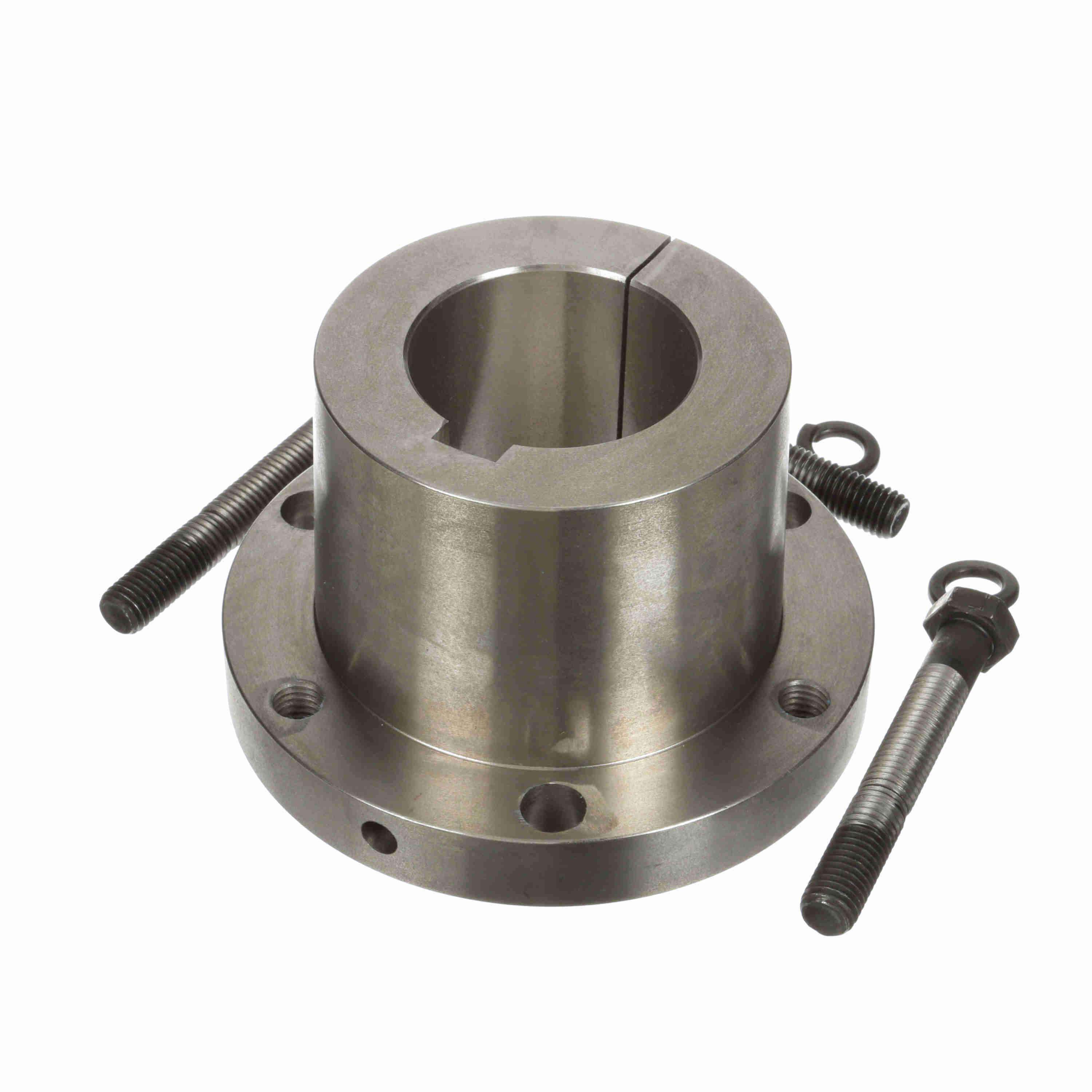

Browning® 1074392 Type J Q-D® Bushing, 3 in Dia Bore, 5.1484 in Dia Barrel, 7-1/4 in Dia Flange, 4.51 in OAL, Ductile Iron
Browning® 1074392 Type J Q-D® Bushing, 3 in Dia Bore, 5.1484 in Dia Barrel, 7-1/4 in Dia Flange, 4.51 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289321889
-
Manufacturer Part Number1074392
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter7-1/4 in
-
Flange Thickness1 in
-
Torque Rating45000 in-lb
-
TypeType J
-
Screw Size5/8-11 x 4-1/2 in
-
Number of Bolt Holes3
-
Barrel Diameter5.1484 in
-
Keyway Size3/4 x 3/8 in
-
Bolt Circle Diameter6-1/4 in
-
Bore Diameter3 in
-
Overall Length4.51 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Single fabric design allows greater flexibility
- Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberJ 3
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
