Enerpac® RC-256 General Purpose Industry Standard Single Acting Hydraulic Cylinder, 25 ton Capacity, 6-1/4 in L Stroke, 10000 psi

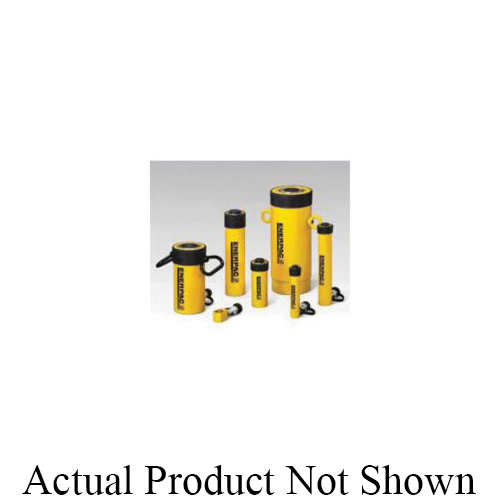

Enerpac® hydraulic cylinders are available in hundreds of different configurations. Whatever the industrial application lifting, pushing, pulling, bending, holding, whatever the force capacity, stroke length, or size restrictions, single- or double-acting, solid or hollow plunger, you can be sure that Enerpac® has the cylinder to suit your high force application.
-
BrandEnerpac®
-
UPC662005301386
-
Manufacturer Part NumberRC-256
-
CountryUSA
-
Capacity25 ton
-
FinishBaked Enamel
-
Pressure Rating10000 psi
-
TypeGeneral Purpose Industry Standard Single Acting
-
SeriesRC
-
Housing MaterialSteel
-
Stroke Length6-1/4 in
- RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
- Unique GR2 bearing design, reduces wear and extending life
- Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy duty, pretension spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- All RC cylinders are equipped with hardened removable grooved saddles
- The exclusive GR2 is a unique bearing design on RC series DUO cylinders which absorbs eccentric load stresses to protect your cylinder against abrasion, over-extending or plunger blow-outs and jamming or top-end mushrooming
- 2.56 in cylindrical bore diameter
- 1 in base to advance port
- 2 in saddle diameter
- 0.41 in saddle protruding from plunger
- 1-1/2-16 UN plunger internal thread
- 1 in plunger thread length
- 2.31 in bolt circle
- 1/2-13 UN thread
- 3/4 in thread depth
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100189742 |
-
UNSPSC27121602
-
IncludesCR-400 Coupler and Dust Cap
-
Standards/ApprovalsASME B30.1
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
