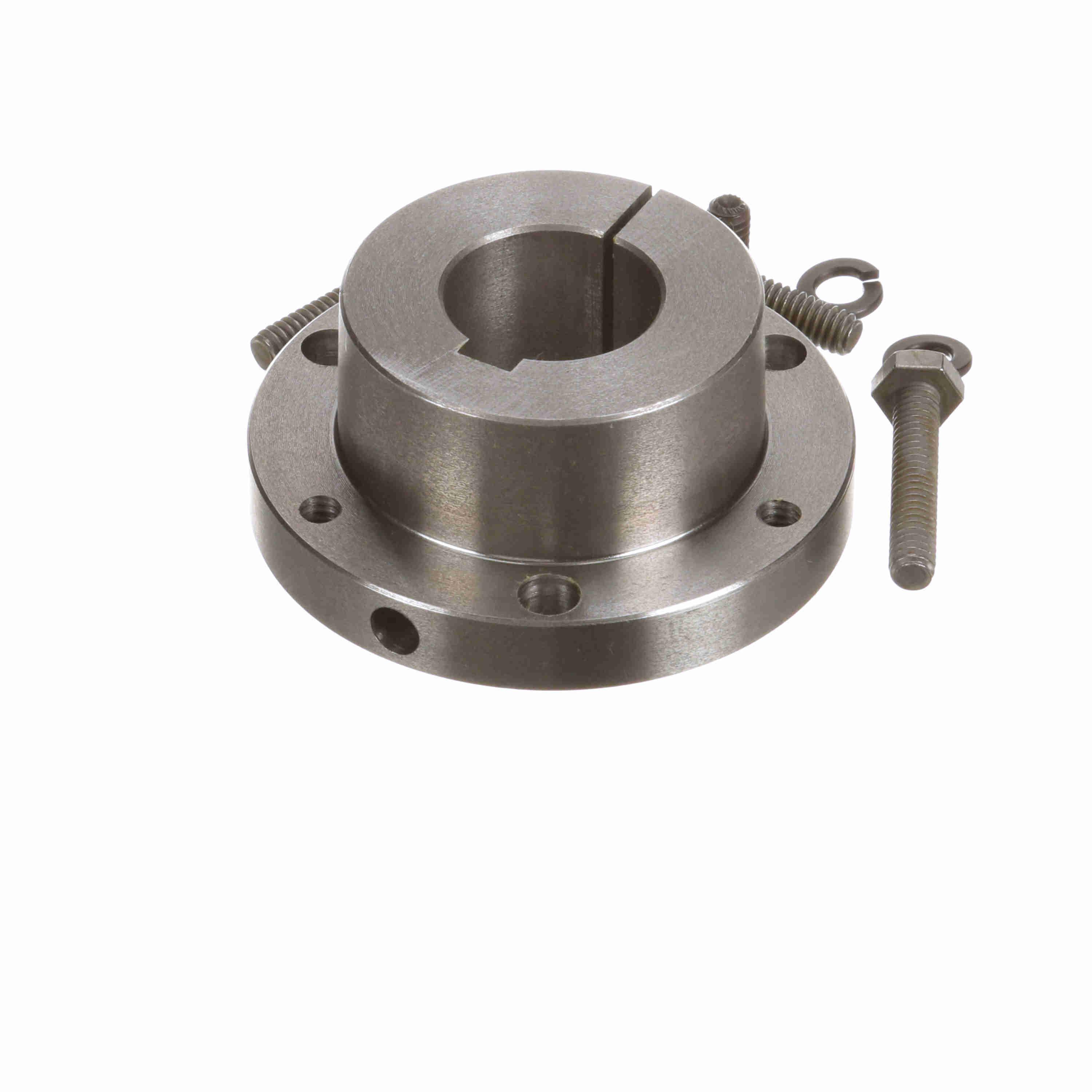

Browning® 3208048 Type SDS Q-D® Bushing, 28 mm Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Steel
Browning® 3208048 Type SDS Q-D® Bushing, 28 mm Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Steel
-
BrandBrowning®
-
UPC662289615957
-
Manufacturer Part Number3208048
-
CountryUSA
-
MaterialSteel
-
Flange Diameter3-1/8 in
-
Flange Thickness0.45 in
-
Torque Rating5000 in-lb
-
TypeType SDS
-
Screw Size1/4-20 x 1-3/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size8 x 3.5 mm
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter28 mm
-
Overall Length1.33 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberSDS 28 MM
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
