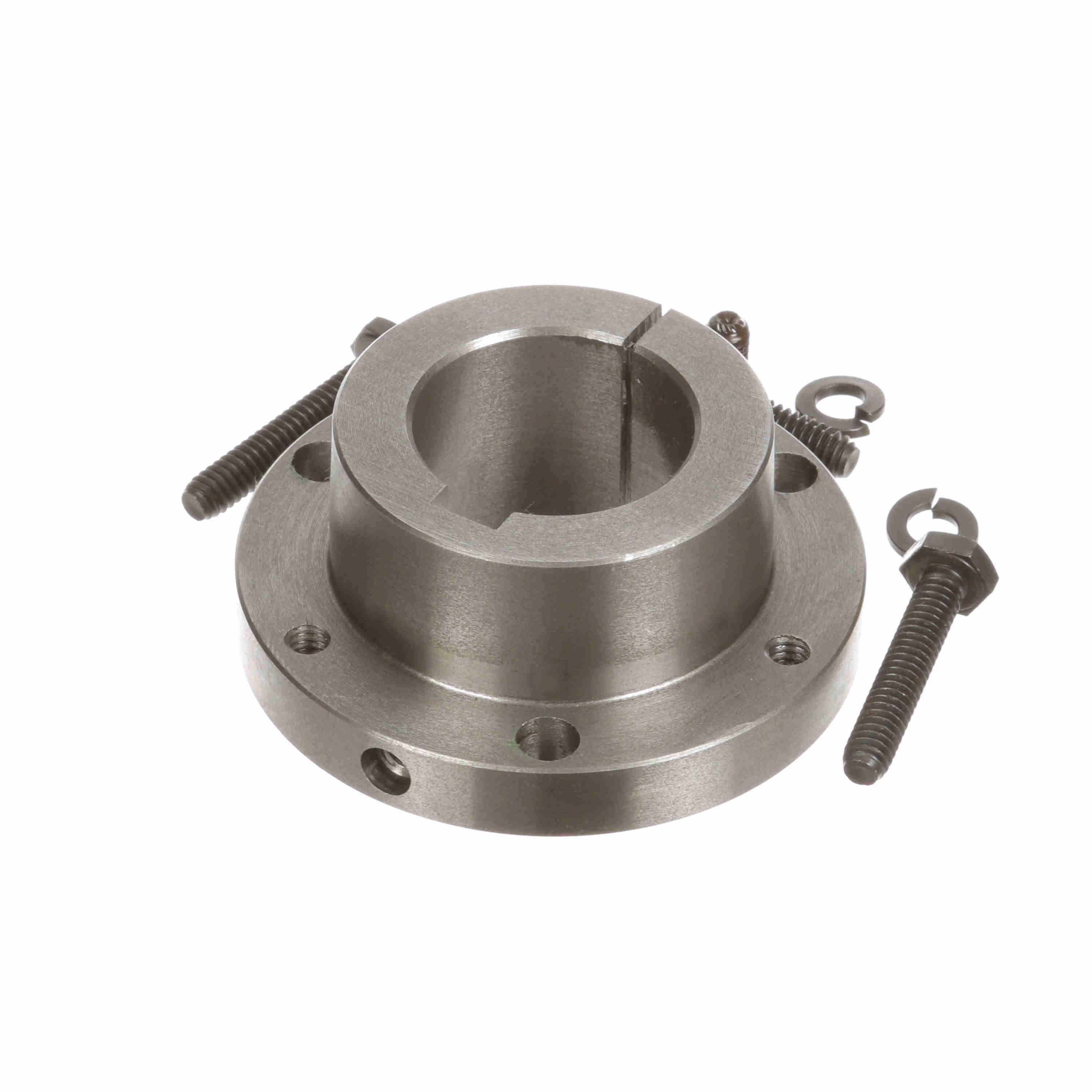

Browning® 1076991 Type SDS Q-D® Bushing, 1-3/8 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Ductile Iron
Browning® 1076991 Type SDS Q-D® Bushing, 1-3/8 in Dia Bore, 2-3/16 in Dia Barrel, 3-1/8 in Dia Flange, 1.33 in OAL, Ductile Iron
-
BrandBrowning®
-
UPC662289384921
-
Manufacturer Part Number1076991
-
CountryUSA
-
MaterialDuctile Iron
-
Flange Diameter3-1/8 in
-
Flange Thickness0.45 in
-
Torque Rating5000 in-lb
-
TypeType SDS
-
Screw Size1/4-20 x 1-3/8 in
-
Number of Bolt Holes3
-
Barrel Diameter2-3/16 in
-
Keyway Size3/8 x 3/16 in
-
Bolt Circle Diameter2-11/16 in
-
Bore Diameter1-3/8 in
-
Overall Length1.33 in
-
Suitable For Use WithGearbelt® Sheaves, Sprockets and Pulleys
- Conventional mounting
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberSDS 1 3/8 3/8
-
UNSPSC31171516
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
