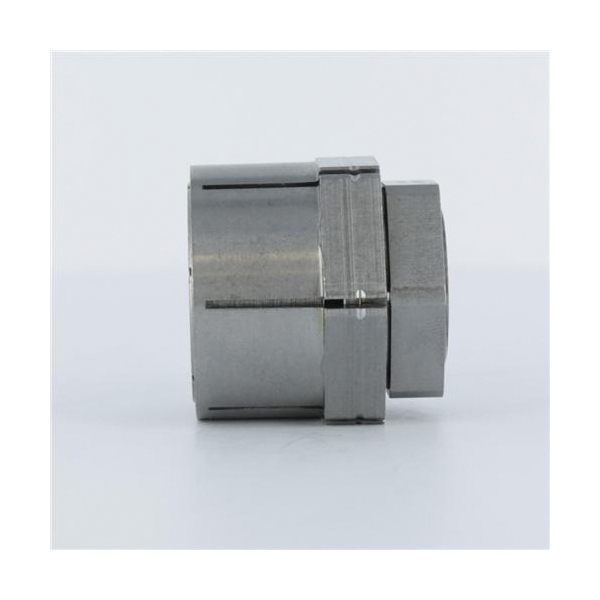

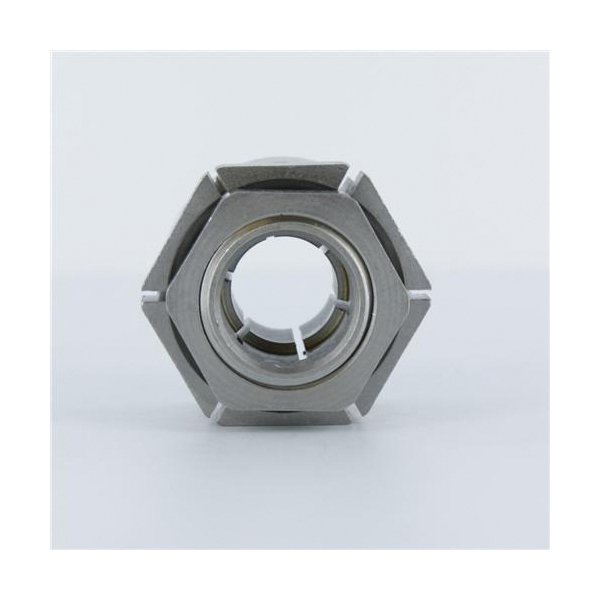

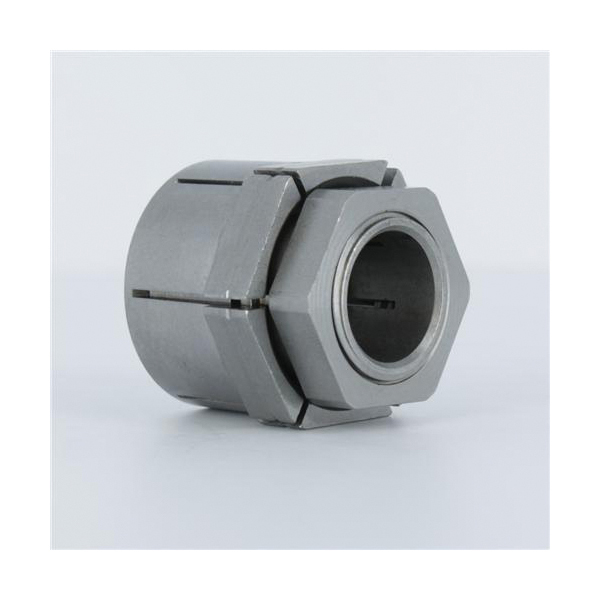

Fenner Drives® Trantorque® 6202803UP GT Series Keyless Bushing, 16 mm Dia Bore, 38 mm OD, 38.1 mm OAL, Steel
The Trantorque® GT series 16 mm keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 16 mm in diameter by means of a mechanical interference fit and transmits up to a maximum 209 N-m of torque.
-
BrandFenner Drives®
-
Manufacturer Part Number6202803UP
-
CountryUSA
-
Temperature Rating-30 to 400 deg F
-
FinishZinc Chromate/Zinc Phosphate
-
MaterialSteel
-
Transmissible Thrust26 kN
-
Transmissible Torque209 N-m
-
SeriesGT Series
-
Hub Contact Pressure93 N/sq-mm
-
Outside Diameter38 mm
-
Bore Diameter16 mm
-
Overall Length38.1 mm
- Ability to transmit higher torques than keyed connections
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications where speed and simplicity of installation and repositioning are critical and will benefit from the value added feature of a counter torque nut
-
UNSPSC31171605
-
Standards/ApprovalsRoHS Compliant
-
Instruction/Installation Manual
