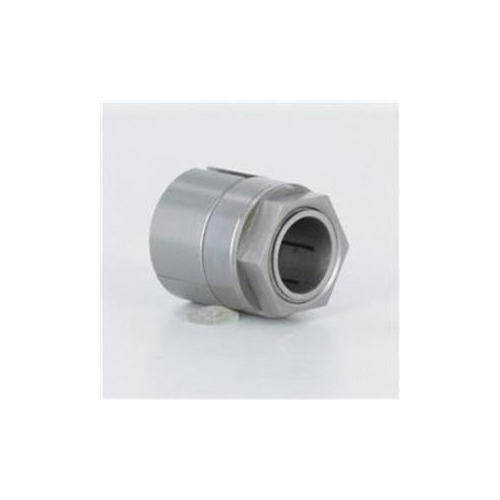

Fenner Drives® Trantorque® TTQM1223 Mini Single Taper Keyless Bushing, 12 mm Dia Bore, 23 mm OD, 26 mm OAL, Steel
The Trantorque® mini series 12 mm keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 12 mm in Dia by means of a mounted mechanical interference fit and transmits up to 81 N-m of torque. Trantorque® mini series 12 mm keyless bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending and/or radial loads. This product has exceptional concentricity and the ability to accommodate bending loads. The Trantorque® mini series has limited axial movement during installation. All Trantorque® units use a single hex nut for speed and simplicity of installation.
-
BrandFenner Drives®
-
Manufacturer Part NumberTTQM1223
-
CountryUSA
-
MaterialSteel
-
Transmissible Thrust15 kN
-
Transmissible Torque90 N-m
-
TypeSingle Taper
-
SeriesMini
-
Hub Contact Pressure136 N/sq-mm
-
Outside Diameter23 mm
-
Bore Diameter12 mm
-
Overall Length26 mm
- Exceptional concentricity and ability to accommodate bending loads
- Limited axial movement during installation
- All Trantorque® units use a single hex nut for speed and simplicity of installation
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
-
UNSPSC31171605
-
Standards/ApprovalsRoHS Compliant
-
Instruction/Installation Manual
